Diodes DXTP03200BP5 User Manual
Features, Application, Mechanical data

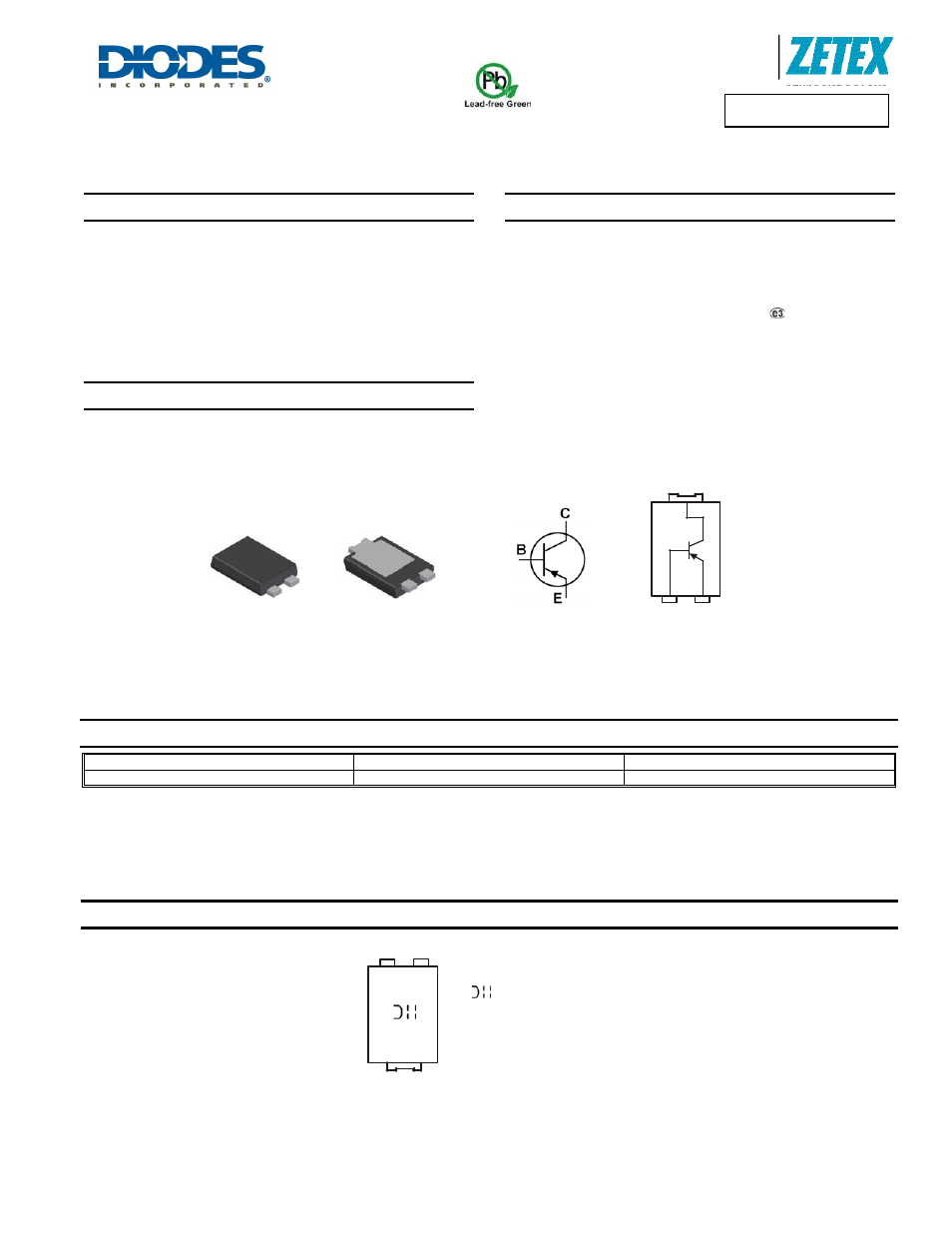

DXTP03200BP5
Document number: DS32068 Rev. 2 - 2
1 of 7
March 2010
© Diodes Incorporated
DXTP03200BP5
PowerDI is a registered trademark of Diodes Incorporated.
ADVAN
CE I
N
F
O
RM
ATI
O
N
A Product Line of
Diodes Incorporated
200V PNP HIGH VOLTAGE TRANSISTOR
PowerDI
®
5
Features
•
43% smaller than SOT223; 60% smaller than TO252
•
Maximum height just 1.1mm
•
Rated up to 3.2W
•
V
CEO
= -200V
•
I
C
= -2A; I
CM
= -5A
•
Low Saturation voltage
•
Lead, Halogen, and Antimony Free/RoHS Compliant (Note 1)
•
“Green” Device (Note 2)
Application
•
DC – DC conversion
Mechanical Data
• Case:
PowerDI
®
5
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.093 grams (approximate)
Ordering Information
(Note 3)
Part Number
Case
Packaging
DXTP03200BP5-13 PowerDI
®
5
5000/Tape & Reel
Notes:
1. No purposefully added lead. Halogen and Antimony Free.
2. Diodes Inc’s “Green” Policy can be found on our websit
3. For packaging details, go to our website at
Marking Information
Top View
Bottom View
Pin-out diagram
C
B
E
Device Schematic
DTP3200B = Product Type Marking Code
= Manufacturers’ Code Marking
K = Factory Designator
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 09 for 2009)
WW = Week code (01 to 53)
YYWWK
DTP3200B
