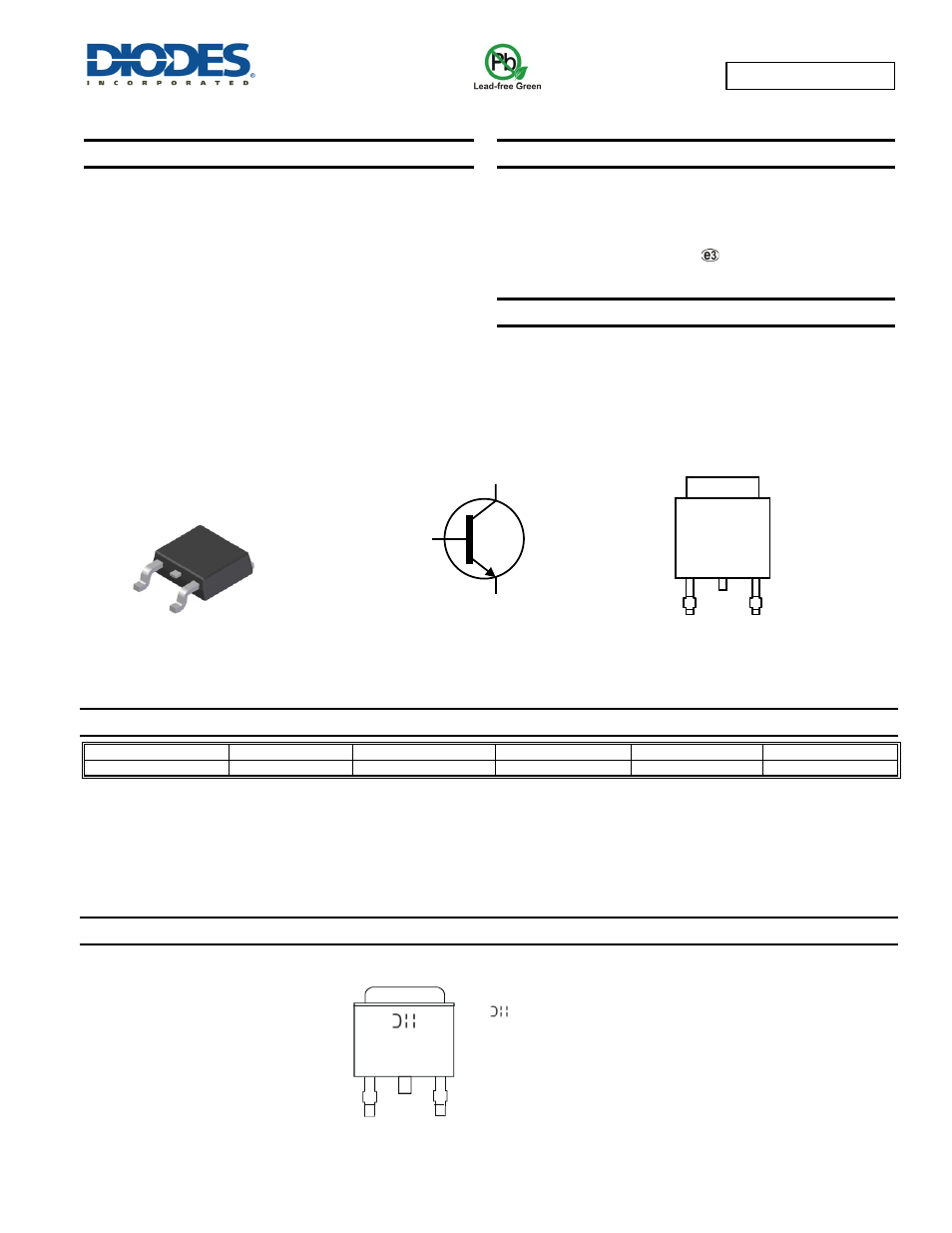

DXT696BK
Document number: DS36574 Rev. 1 - 2
1 of 7
December 2013
© Diodes Incorporated
DXT696BK
180V NPN MEDIUM POWER HIGH GAIN TRANSISTOR IN TO252
Features
BV
CEO
> 180V
I
C
= 0.5A high Continuous Collector Current
I
CM
= 1A Peak Pulse Current
High gain device > 500 at I
C
=100mA
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: TO252 (DPAK)
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads; Solderable
per MIL-STD-202, Method 208
Weight: 0.34 grams (approximate)
Applications
Voltage Regulator Transistors
Startup
Switches
Darlington
Replacement
DC
Fans
Relays and Solenoid Driving
Ordering Information
(Note 4)
Product
Package
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
DXT696BK-13 TO252
(DPAK) DXT696B
13
16
2,500
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Top View
Top View
Pin-Out
Equivalent Circuit
B
E
C
C
TO252 (DPAK)
= Manufacturers’ code marking
DXT 696B = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Digit of Year, (ex: 13 = 2013)
WW = Week Code 01 - 52
DXT696B
YYWW
C
E
B
