DXT5401
Document number: DS31226 Rev. 3 - 2
4 of 5
www.diodes.com
March 2010
© Diodes Incorporated
DXT5401
Ordering Information
(Note 5)
Part Number Case Packaging
DXT5401-13 SOT89-3L 2500/Tape & Reel
Notes: 5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information

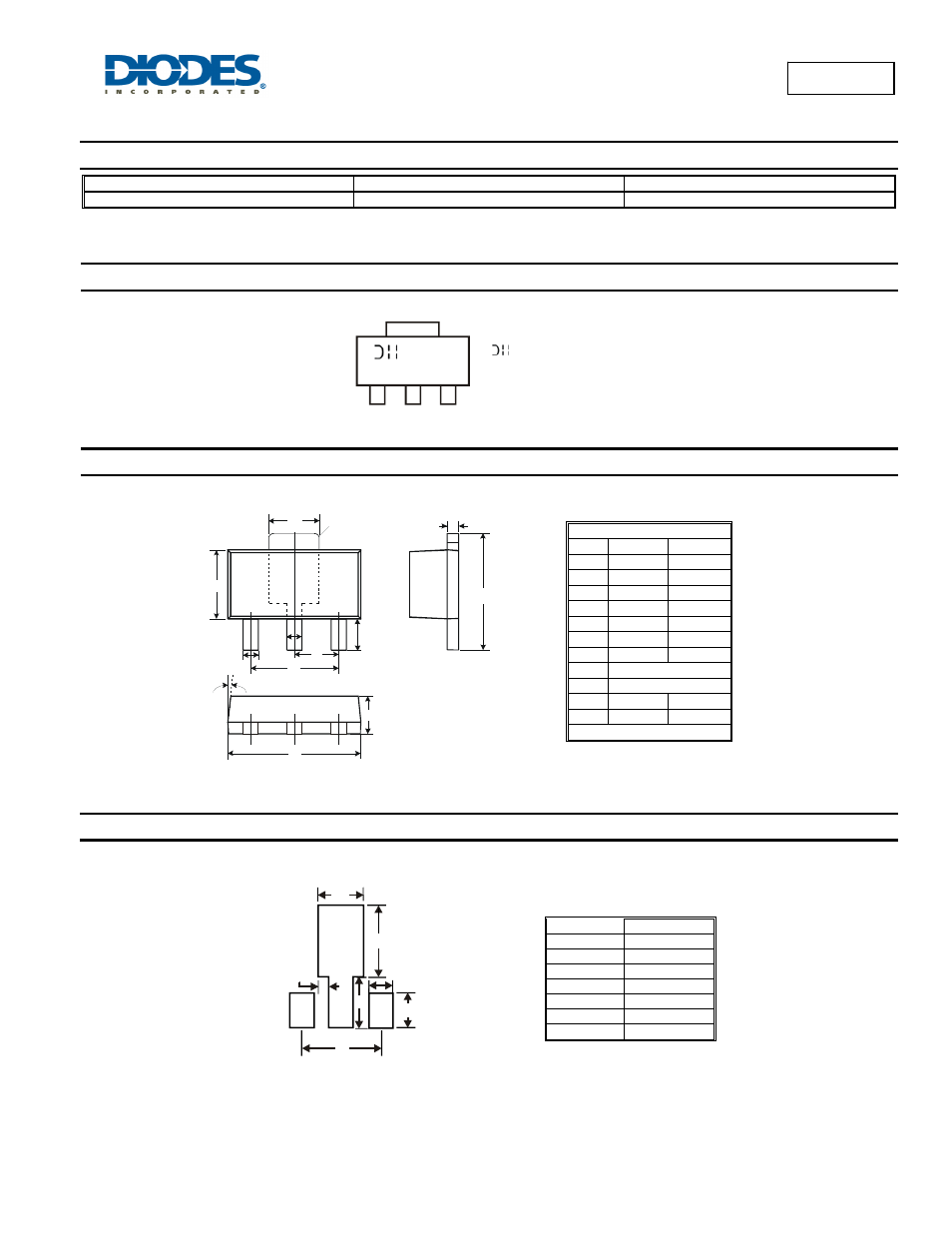

Package Outline Dimensions
Suggested Pad Layout
SOT89-3L
Dim Min Max
A 1.40 1.60
B 0.44 0.62
B1 0.35 0.54
C 0.35 0.43
D 4.40 4.60
D1 1.52 1.83
E 2.29 2.60
e 1.50 Typ
e1 3.00 Typ
H 3.94 4.25
L 0.89 1.20
All Dimensions in mm
Dimensions Value (in mm)
X1 1.7
X2 0.9
X3 0.4
Y1 2.7
Y2 1.3
Y3 1.9
C 3.0
K4M = Product type marking code
= Manufacturer’s code marking
YWW = Date code marking
Y = Last digit of year (ex: 7 = 2007)
WW = Week code (01 – 53)
K4M
YWW
Y1
X3
X2
X1
Y3
Y2
C
e
D
H
L
A
C
E
8° (4
X)
B1
B
D1
R
0.
20
0
e1
