FMMT634
100V NPN DARLINGTON TRANSISTOR IN SOT23
Features
 BV
CEO
> 100V
 I
C
= 900mA high Continuous Collector Current
 I
CM
= 5A Peak Pulse Current
 625mW Power dissipation
 h
FE
> 5k up to 2A for high current gain hold up
 Complementary PNP Type: FMMT734
 Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: SOT23
 Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
 Weight 0.008 grams (approximate)
Applications
 Lamp
 Relay
 Solenoid
Driving
Ordering Information
(Note 4)
Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel
FMMT634TA AEC-Q101 634 7 8 3,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen and Antimony free, "Green"
and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)
and <1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html

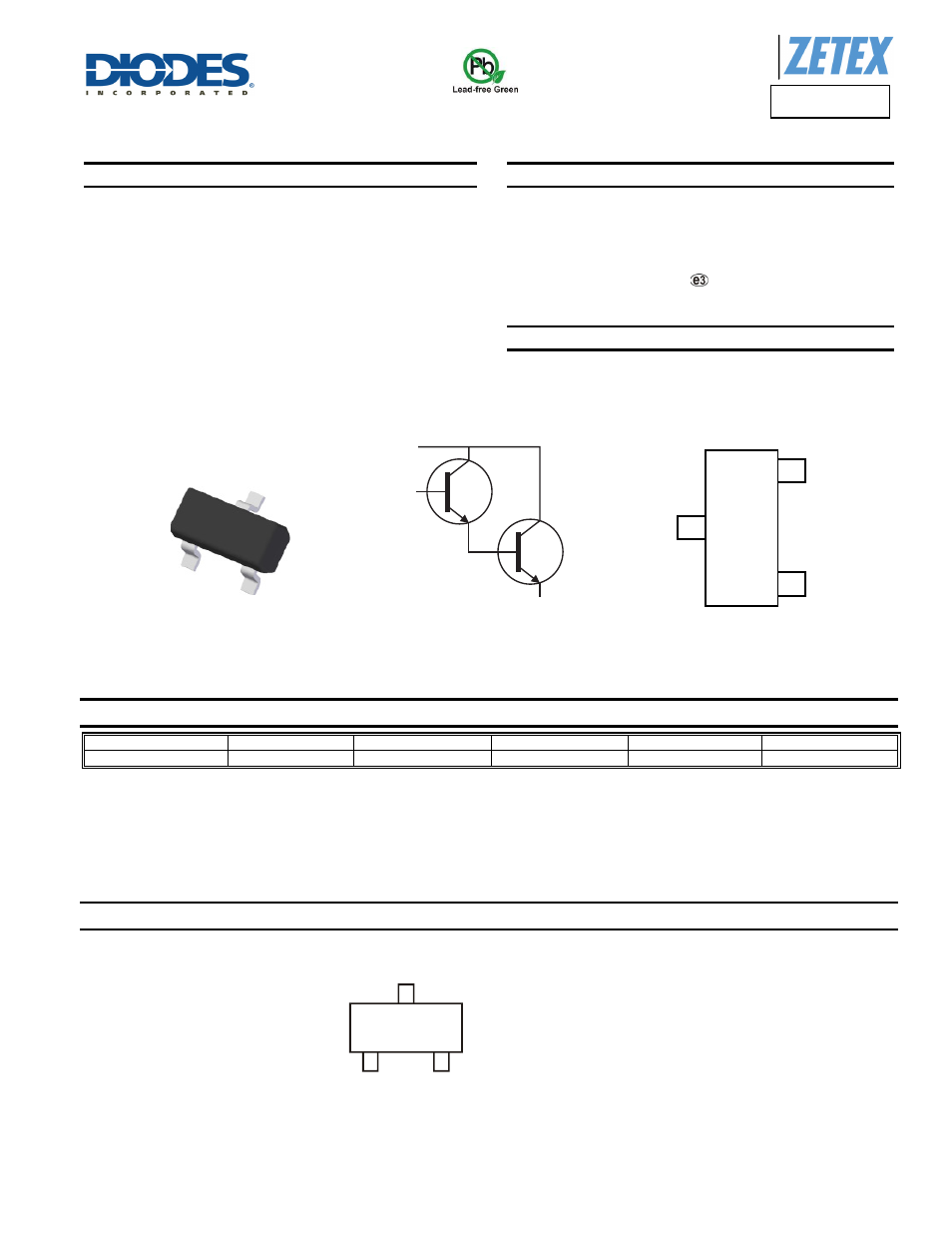

Marking Information
634 = Product Type Marking Code
SOT23
Top View
Pin-Out
Top View Device Symbol
C
E
B
624 634
C
E
B
