FCX591
Da
tasheet Number: DS33061 Rev. 4 - 2
1 of 7
February 2014
© Diodes Incorporated
FCX591
A Product Line of
Diodes Incorporated
60V PNP MEDIUM POWER TRANSISTOR IN SOT89
Features
• BV
CEO
> -60V
•
I
C
= -1A high Continuous Collector Current
•
I
CM
= -2A Peak Collector Current
•
R
CE(SAT)
= 295mΩ for a Low Equivalent On-Resistance
•
h
FE
characterized up to 2A for high current gain hold up
•
Complementary NPN type: FCX491
•
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT89
•
Case Material: Molded Plastic. “Green” Molding Compound
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
•
Weight: 0.05 grams (Approximate)
Ordering Information
(Note 4)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
FCX591TA
P1 7 12
1,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at

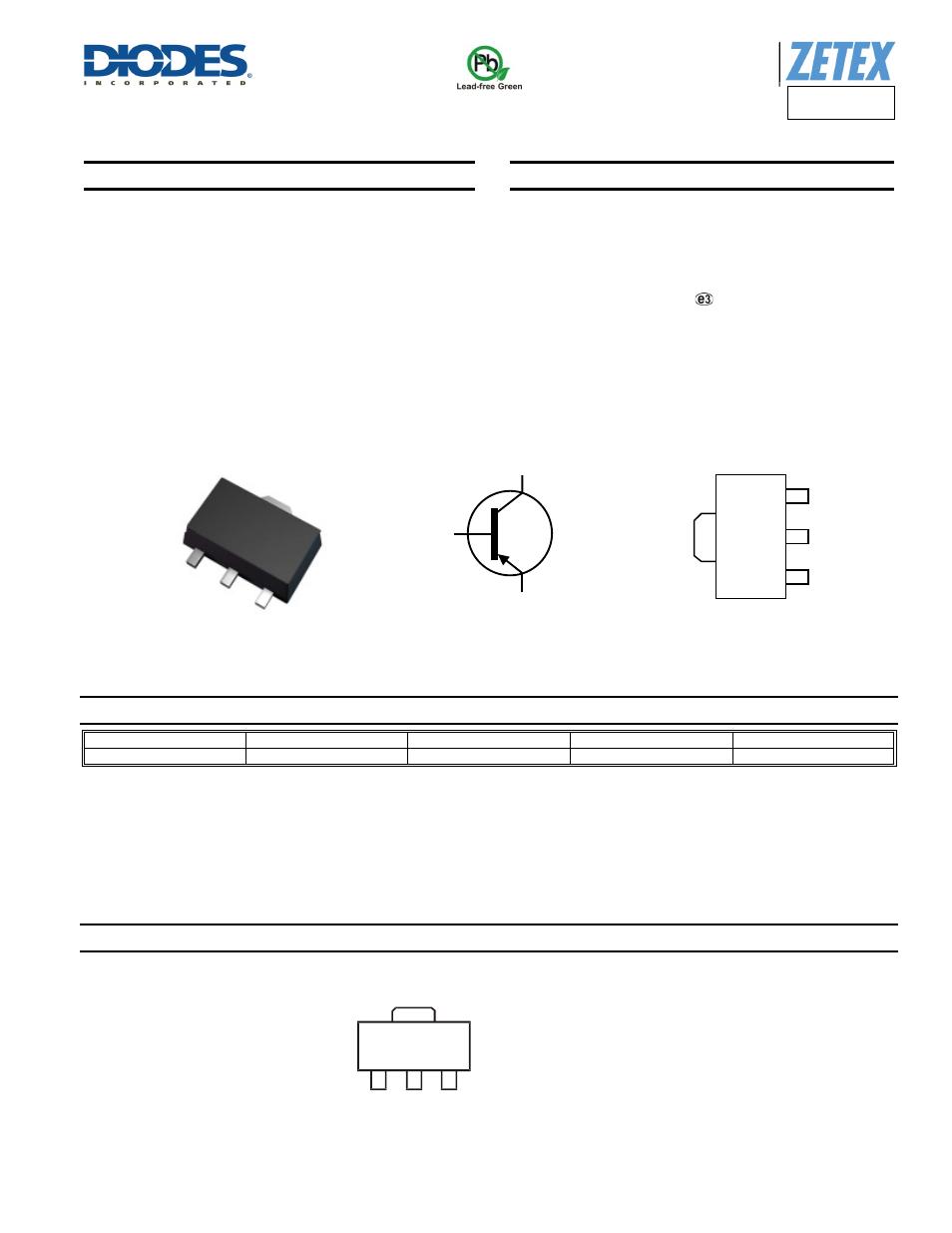

Marking Information
P1 = Product Type Marking Code
Top View
Device Symbol
Top View
Pin Out
SOT89
C
E
C
B
C
E
B
P1
