FCX593
Da
tasheet Number: DS33063 Rev. 5 - 2
1 of 7
January 2014
© Diodes Incorporated
FCX593
A Product Line of
Diodes Incorporated
100V PNP MEDIUM POWER TRANSISTOR IN SOT89
Features
• BV
CEO
> -100V
•
I
C
= -1A high Continuous Collector Current
•
I
CM
= -2A Peak Collector Current
•
Low saturation voltage V
CE(sat)
< -200mV @ -250mA
•
Complementary NPN type: FCX493
•
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT89
•
Case Material: Molded Plastic. “Green” Molding Compound
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
•
Weight: 0.05 grams (Approximate)
Ordering Information
(Note 4)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
FCX593TA
P93 7 12
1,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
P93 = Product Type Marking Code

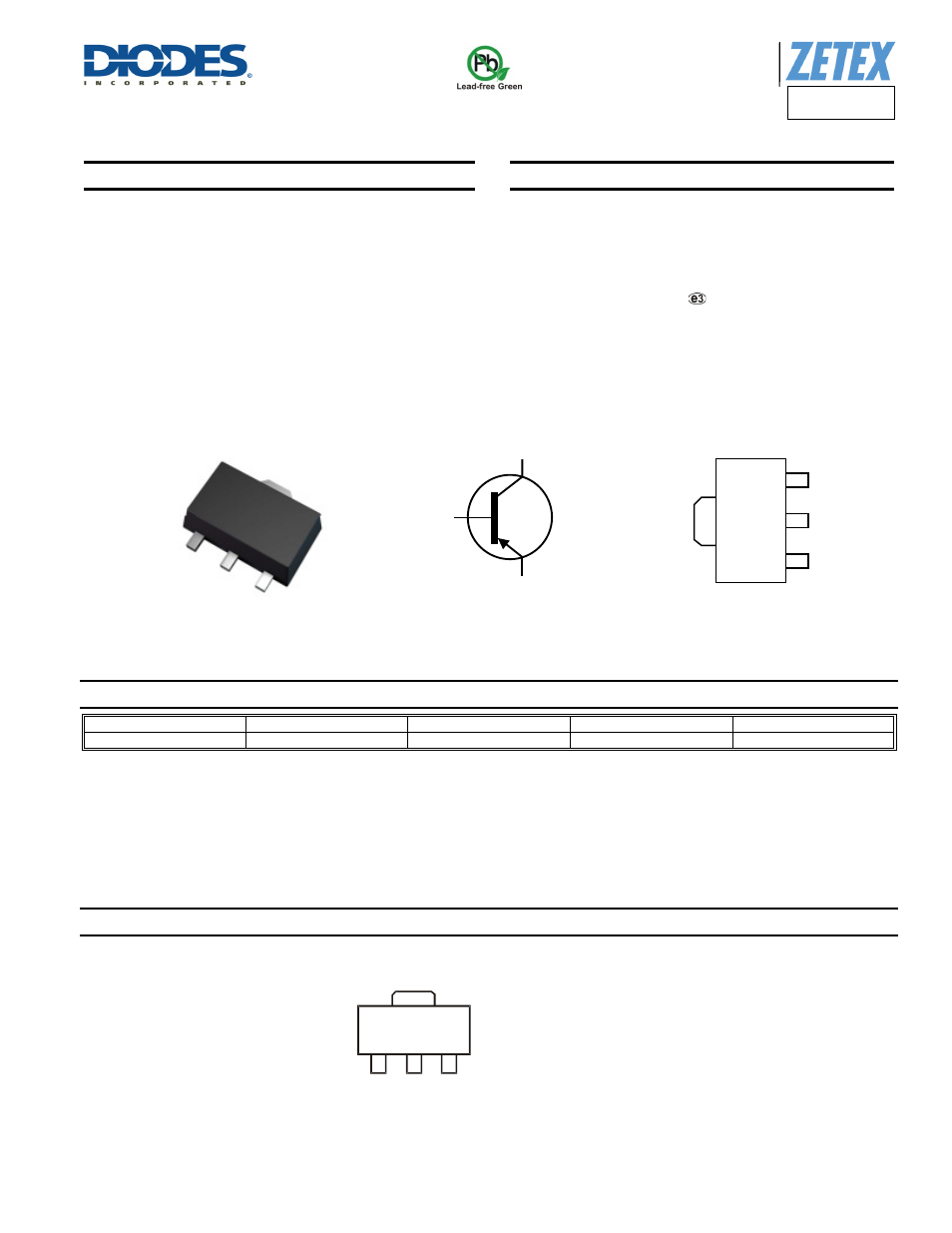

Top View
Device Symbol
Top View
Pin Out
SOT89
C
E
C
B
C
E
B
P93
