FCX493
Da
tasheet Number: DS33056 Rev. 6 - 2
1 of 6
October 2012
© Diodes Incorporated
FCX493
A Product Line of
Diodes Incorporated
100V NPN SILICON PLANAR MEDIUM POWER TRANSISTOR IN SOT89
Features
• BV
CEO
> 100V
•
I
C
= 1A high Continuous Current
•
Low saturation voltage V
CE(sat)
< 300mV @ 250mA
•
Complementary PNP type: FCX593
•
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Application
•
Load management functions
•
Solenoid, relay and actuator drivers
•
DC – DC modules
Mechanical Data
• Case:
SOT89
•
Case Material: Molded Plastic, “Green” Molding Compound
•
Moisture Sensitivity: Level 1 per J-STD-020
•
UL Flammability Rating 94V-0
•
Terminals: Matte Tin Finish, Solderable per MIL-STD-202,
Method 208
•
Weight: 0.052 grams (Approximate)
Ordering Information
(Note 4)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
FCX493TA
N93 7 12
1000
FCX493-13R
N93 13 12 4000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at

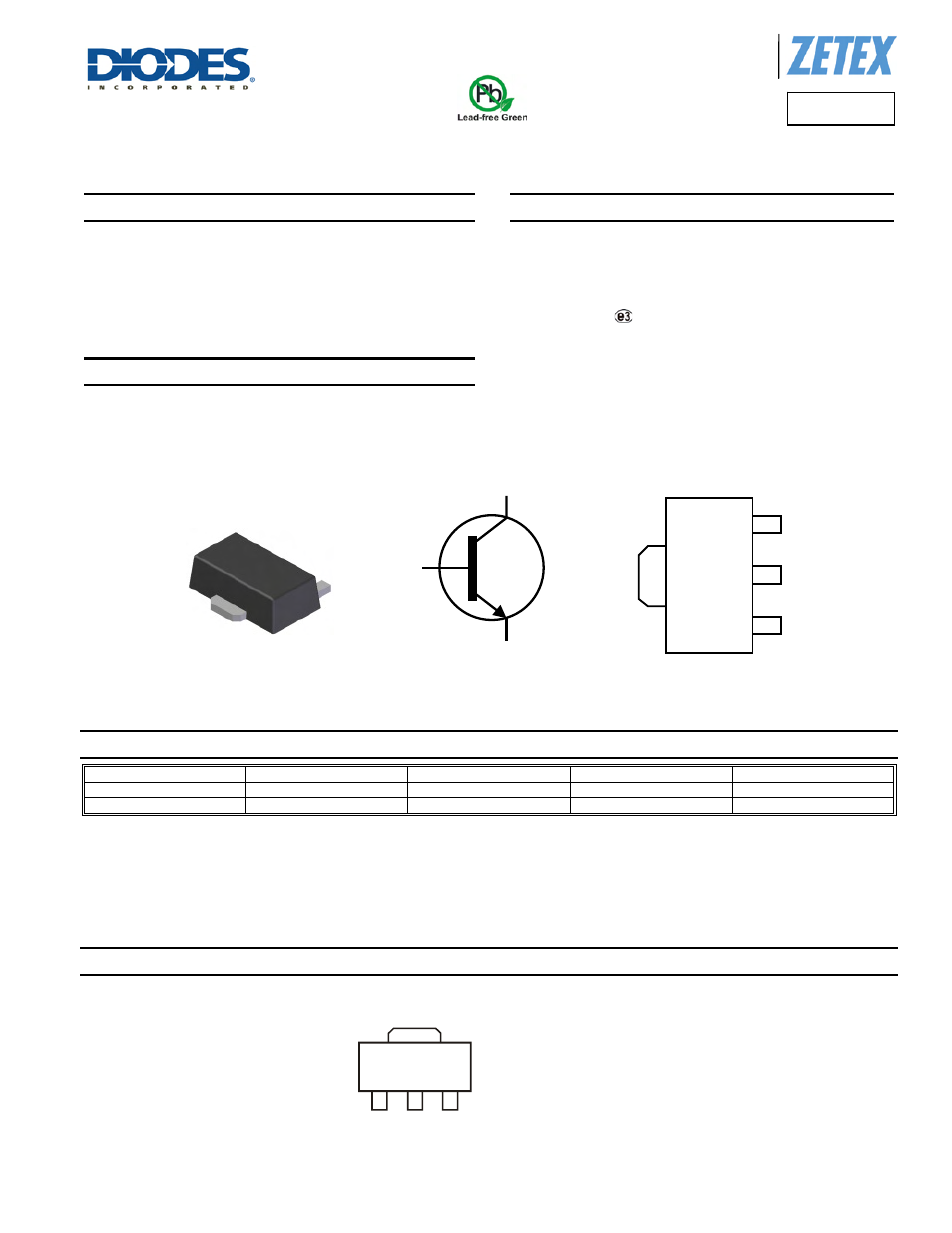

Marking Information
Top View
SOT89
Device symbol
Top View
Pin-Out
N93 = Product Type Marking Code
C
E
B
C
E
C
B
N93
