FCX491
A Product Line of
Diodes Incorporated

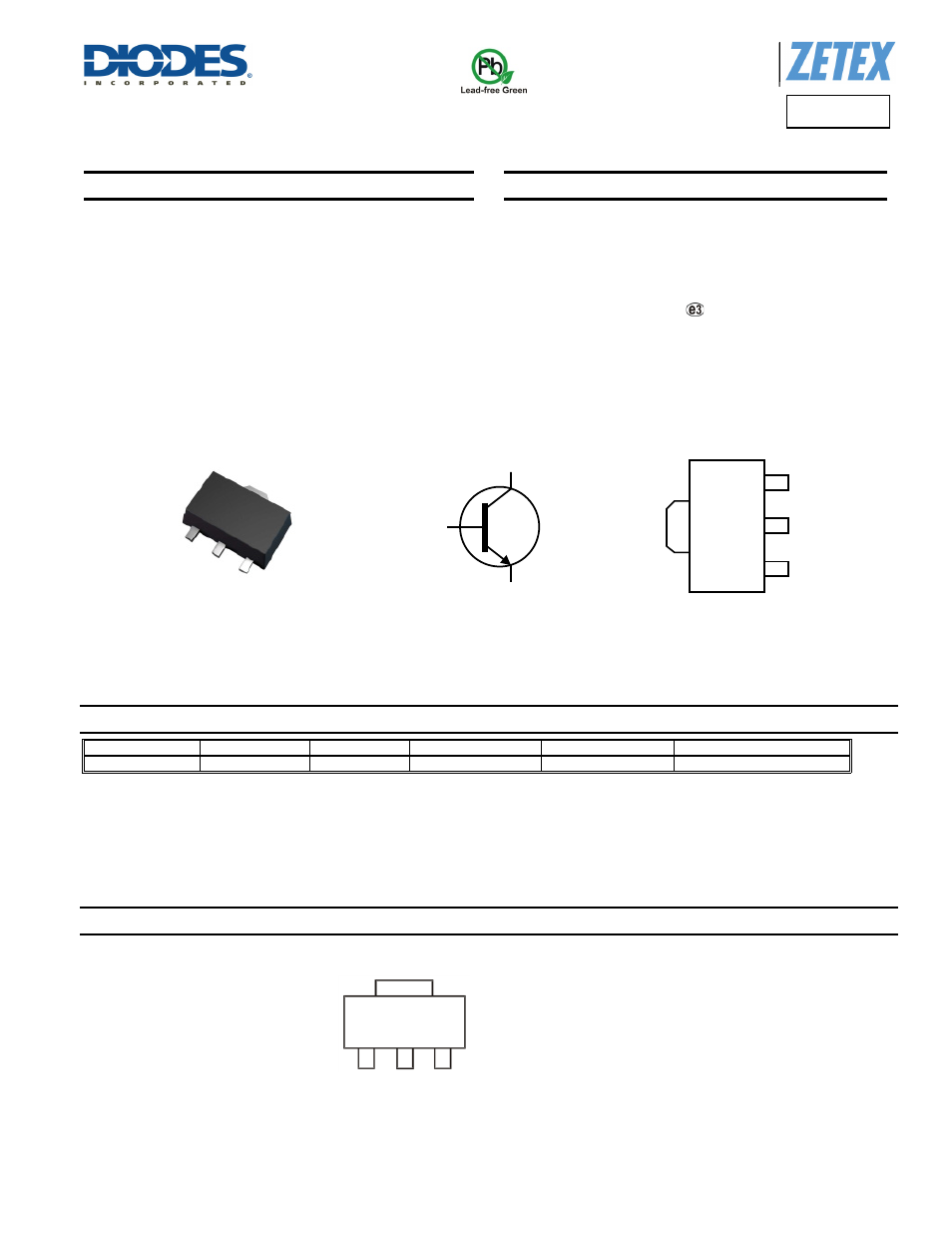

60V NPN MEDIUM POWER TRANSISTOR IN SOT89
Features
BV
CEO
> 60V
I
C
= 1A Continuous Collector Current
I
CM
= 2A Peak Pulse Current
R
CE(sat)
= 195mΩ for a Low Equivalent On-Resistance
h
FE
characterized up to 2A for high current gain hold up
Complementary PNP Type: FCX591
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
SOT89
Case Material: Molded Plastic. “Green” Molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.055 grams (Approximate)
Ordering Information
(Note 4)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
FCX491TA
AEC-Q101 N1
7
12mm
1,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
C
E
B
Equivalent Circuit
Top View
Pin-Out
Top View
SOT89
C
E
C
B
N1= Product Type Marking Code
N1
