100V NPN LOW SAT MEDIUM POWER TRANSISTOR
POWERDI
®
5
Features
•
43% smaller than SOT223; 60% smaller than TO252
•
Maximum height just 1.1mm
•
Rated up to 3.2W
• BV
CEO
> 100V
•
Maximum continuous current I
C
= 6A
•
Low Saturation voltage
•
Totally Lead-Free & Fully RoHS compliant (Note 1)
•
Halogen and Antimony Free. “Green” Device (Note 2)
Applications
• Motor
Drive
• Regulator
circuit
Mechanical Data
• Case:
POWERDI5
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.093 grams (approximate)
Ordering Information
(Note 3)
Part Number
Case
Packaging
DXT2011P5-13
POWERDI5
5000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)
and <1000ppm antimony compounds.
3. For packaging details, go to our website at

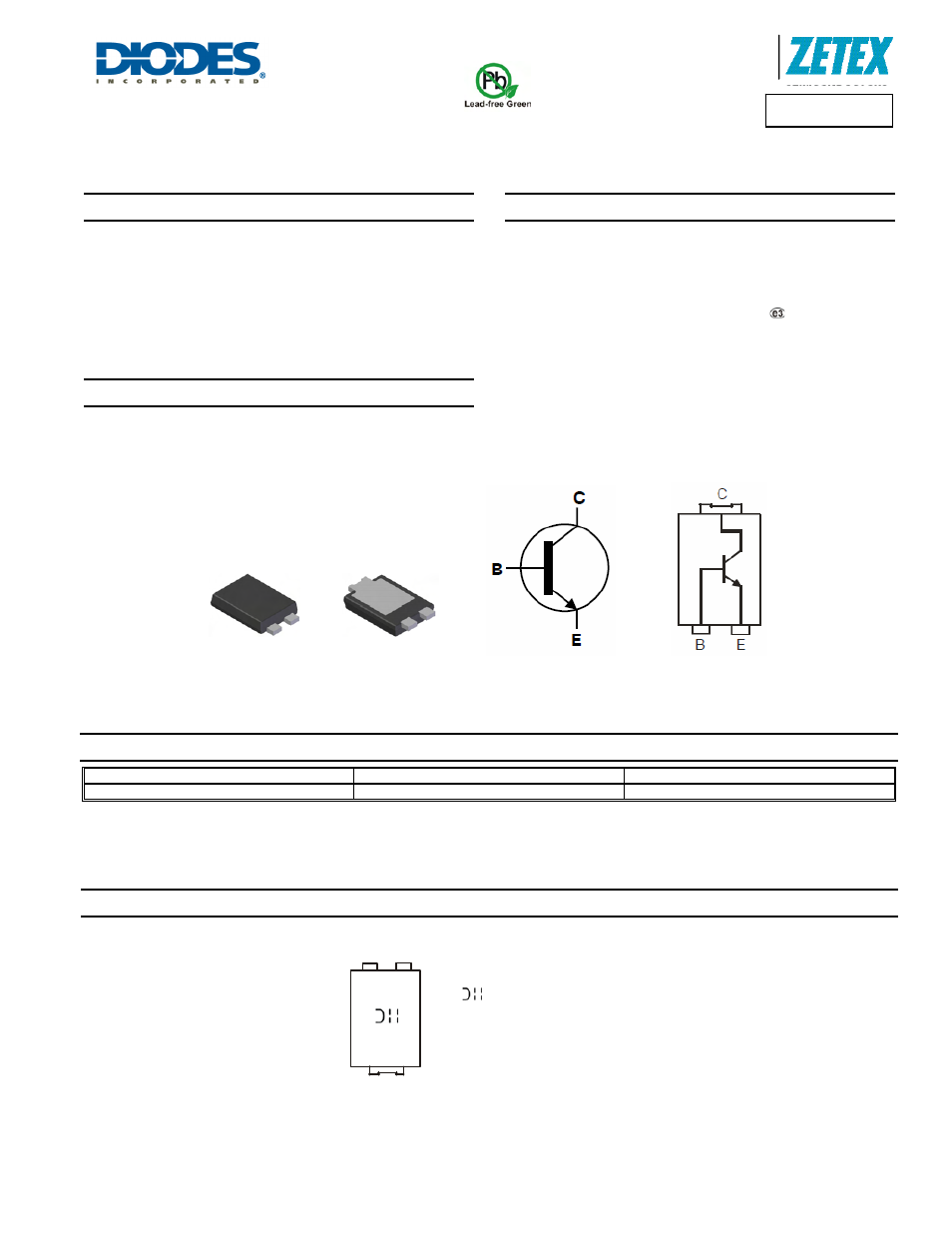

Marking Information
Top View
Bottom View
Pin-out diagram
Device Schematic
DXT2011 = Product Type Marking Code
= Manufacturers’ Code Marking
K = Factory Designator
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 09 for 2009)
WW = Week code (01 to 53)
POWERDI5
YYWWK
DXT2011
