DPLS160V
© Diodes Incorporated
Ordering Information
(Note 5)
Device P ackaging Shipping
DPLS160V-7 SOT-563 3000/Tape & Reel
Notes: 5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
NEW PRODUCT
PK1 = Product Type Markin
YM = Date Code Markin
Y = Year ex: V = 2008
M g Code
g
= Month ex: 9 = September
Date Code Key
2008 2009 2010 2011 2012 2013 2014 2015
PK1 YM
Year
Code V W X Y Z A B C
Jan F Mar A May J J A Sep O Nov Dec Month eb pr un ul ug ct
Code 1 2 3 4 5 6 7 8 9 O N D

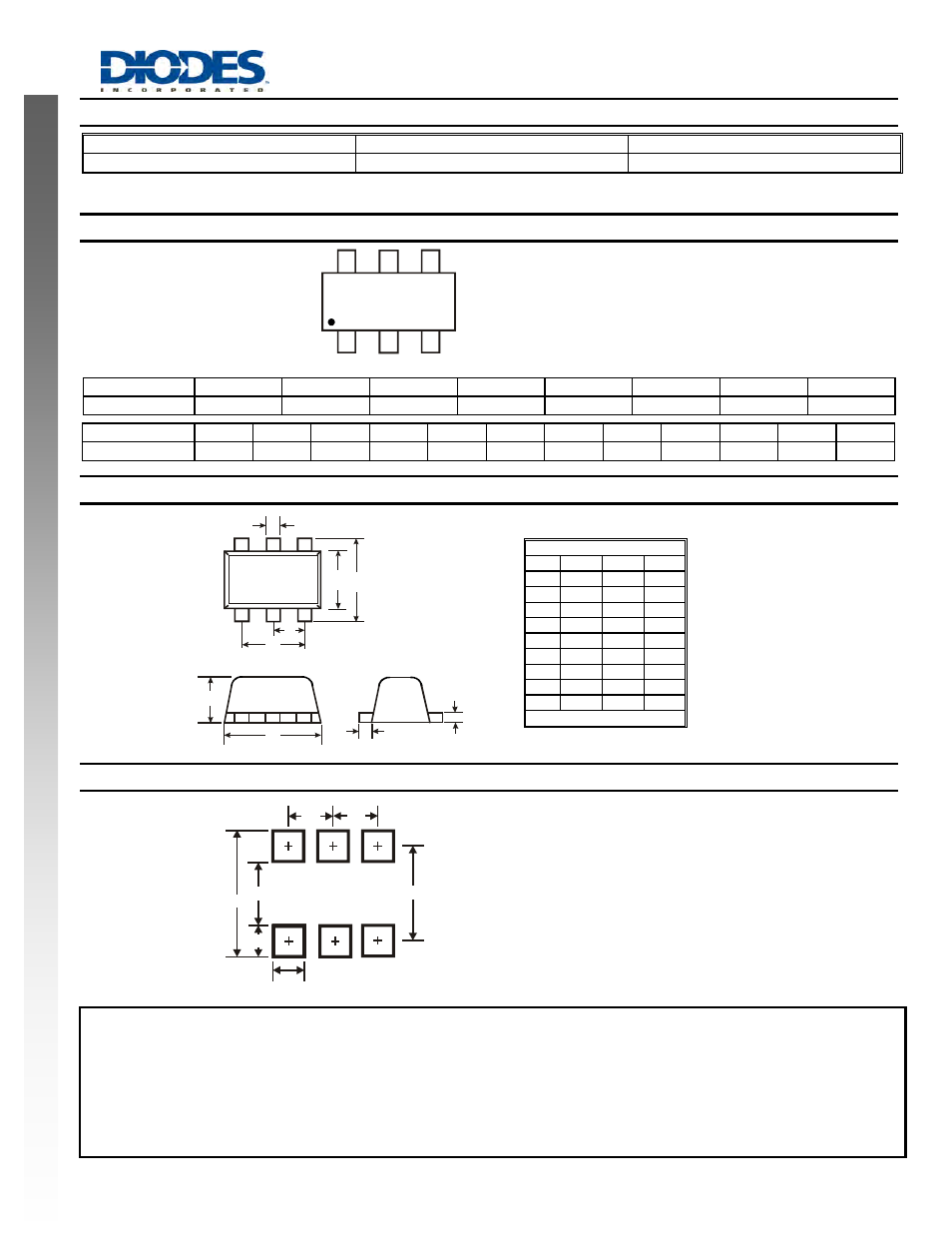

Package Outline Dimensions
Suggested Pad Layout (in mm)
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
A
M
SOT-563
L
B C
H
K
G
D
Dim Min Max Typ
A 0.15 0.30 0.20
B 1.10 1.25 1.20
C 1.55 1.70 1.60
D - - 0.50
G 0.90 1.10 1.00
H 1.50 1.70 1.60
K 0.55 0.60 0.60
L 0.10 0.30 0.20
M 0.10 0.18 0.11
All Dimensions in mm
0.375
2.2
0.5
1.7
0.5 0.5
1.2
