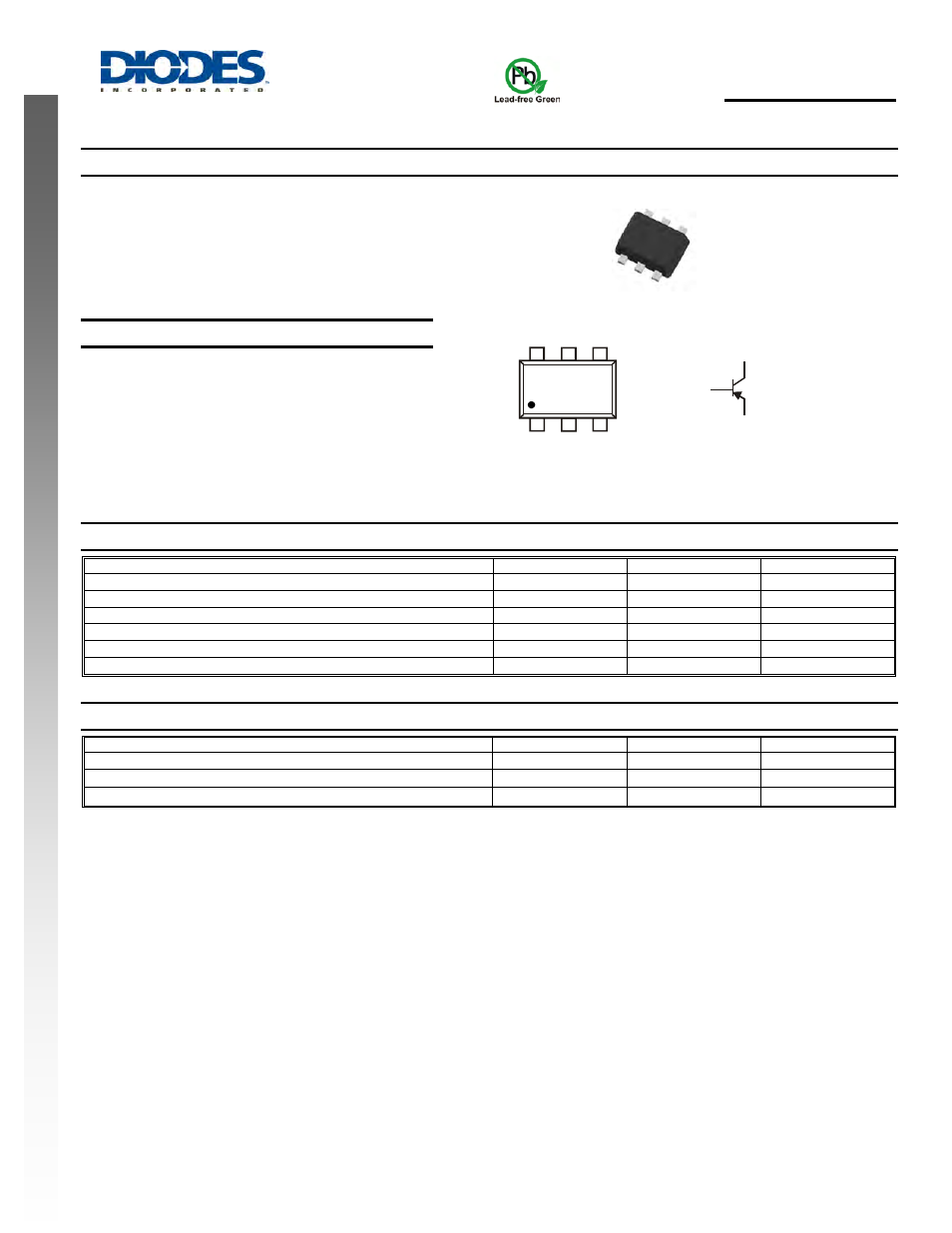

DPLS160V
Features
•
Epitaxial Planar Die Construction
•
Complementary NPN Type Available (DNLS160V)
•
Surface Mount Package Suited for Automated Assembly
•
Ultra Small Surface Mount Package
•
Lead Free/RoHS Compliant (Note 1)
•
"Green Device" (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
Case: SOT-563
•
Case Material: Molded Plastic, “Green” Molding
Compound. UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020D
•
Terminals: Finish
⎯ Matte Tin annealed over Copper
leadframe. Solderable per MIL-STD-202, Method 208
•
Marking Information: See Page 4
•
Ordering Information: See Page 4
•
Weight: 0.003 grams (approximate)
DS31251 Rev. 3 - 2
1 of 4
www.diodes.com
DPLS160V
© Diodes Incorporated
N
E
W PR
O
D
U
C
T
SOT-563
1
2
3
6
5
4
1, 2, 5, 6
3
4
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic Symbol
Value
Unit
Collector-Base Voltage
V
CBO
-80 V
Collector-Emitter Voltage
V
CEO
-60 V
Emitter-Base Voltage
V
EBO
-5 V
Collector Current - Continuous
I
C
-1 A
Peak Pulse Collector Current
I
CM
-2 A
Base Current (DC)
I
B
-300 mA
Thermal Characteristics
Characteristic Symbol
Value
Unit
P
D
300 mW
Power Dissipation (Note 3) @ T
A
= 25
°C
R
θJA
417
°C/W
Thermal Resistance, Junction to Ambient (Note 3) @ T
A
= 25
°C
Operating and Storage Temperature Range
T
J
, T
STG
-55 to +150
°C
Notes:
1. No purposefully added lead.
2. Diode’s Inc.’s “Green” policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
3. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on page 4 or in Diodes Inc. suggested pad layout document
AP02001, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
