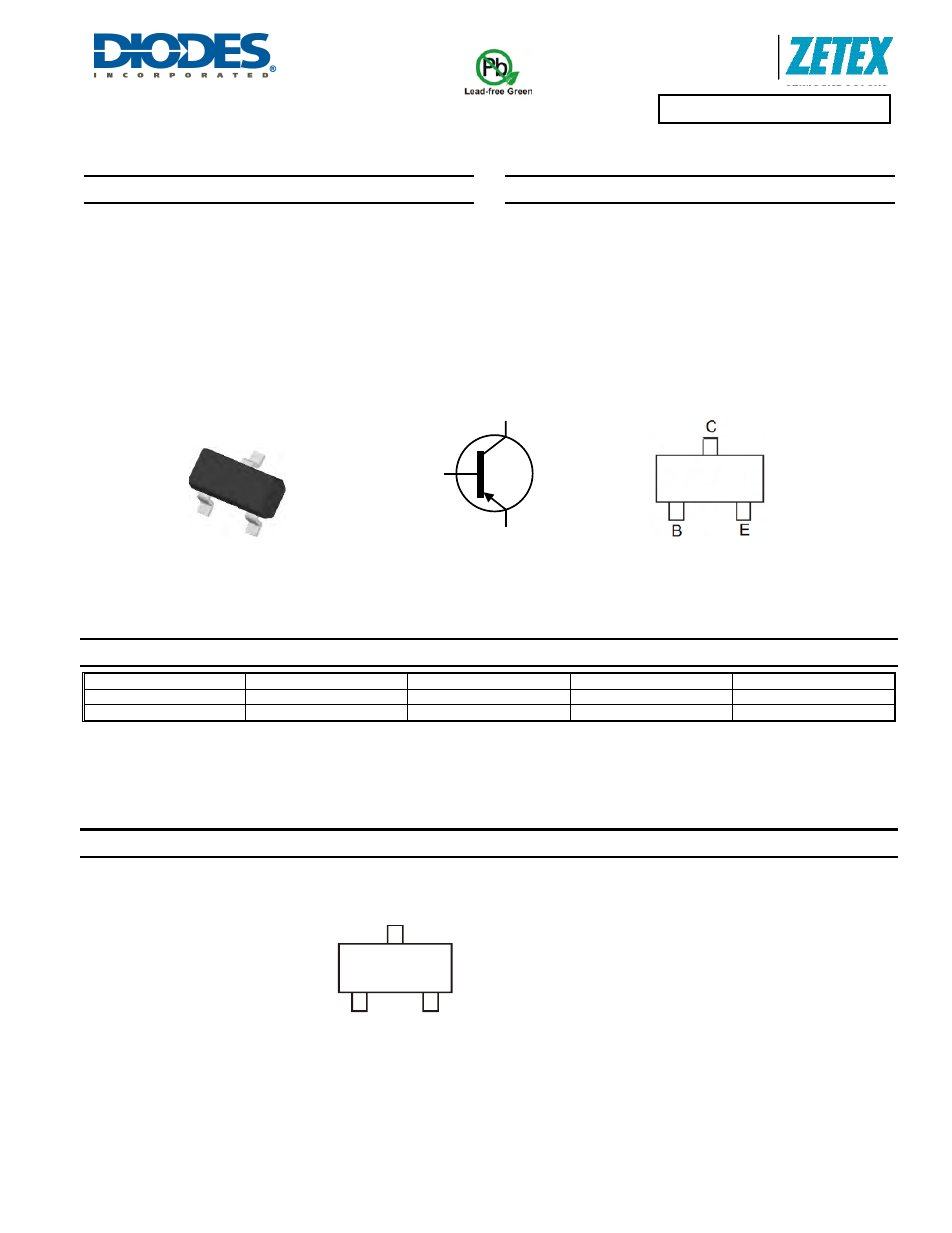

FMMT549 / FMMT549A
Document Number: DS33098 Rev. 4 - 2
1 of 5
September 2011
© Diodes Incorporated
A Product Line of
Diodes Incorporated
FMMT549 / FMMT549A
30V PNP SILICON PLANAR HIGH VOLTAGE TRANSISTOR IN SOT23
Features and Benefits
• BV
CEO
> -30V
•
Maximum Continuous Collector Current I
C
= -1A
•
500mW power dissipation
• Complementary
type:
o
FMMT549 – FMMT449
o
FMMT549A
–
N/A
•
Lead Free, RoHS Compliant (Note 1)
•
Halogen and Antimony Free "Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT23
•
UL Flammability Rating 94V-0
•
Case material: molded Plastic.
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish; Solderable per MIL-STD-202,
Method 208
•
Weight: 0.008 grams (Approximate)
Ordering Information
(Note 3)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
FMMT549TA 549
7
8
3,000
FMMT549ATA 59A
7
8
3,000
Notes:
1. No purposefully added lead.
2. Diodes Inc.`s “Green” Policy can be found on our websit
3. For Packaging Details, go to our website at
Marking Information
xxx = Product Type Marking Code
FMMT549: xxx = 549
FMMT549A: xxx = 59A
C
E
B
Top View
SOT23
Device Symbol
Top View
Pin-Out
xxx
