FMMT589
A Product Line of
Diodes Incorporated
30V PNP MEDIUM POWER HIGH PERFORMANCE TRANSISTOR IN SOT23
Features
 BV
CEO
> -30V
 I
C
= -1A Continuous Collector Current
 I
CM
= -2A Peak Pulse Current
 Low saturation voltage V
CE(sat)
< -350mV @ -1A
 R
SAT
= 250mΩ for a low equivalent on-resistance
 Complementary NPN type: FMMT489
 Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: SOT23
 Case Material: molded plastic, “Green” molding compound
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
 Weight: 0.008 grams (approximate)
Ordering Information
(Note 4)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
FMMT589TA 589 7 8 3,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

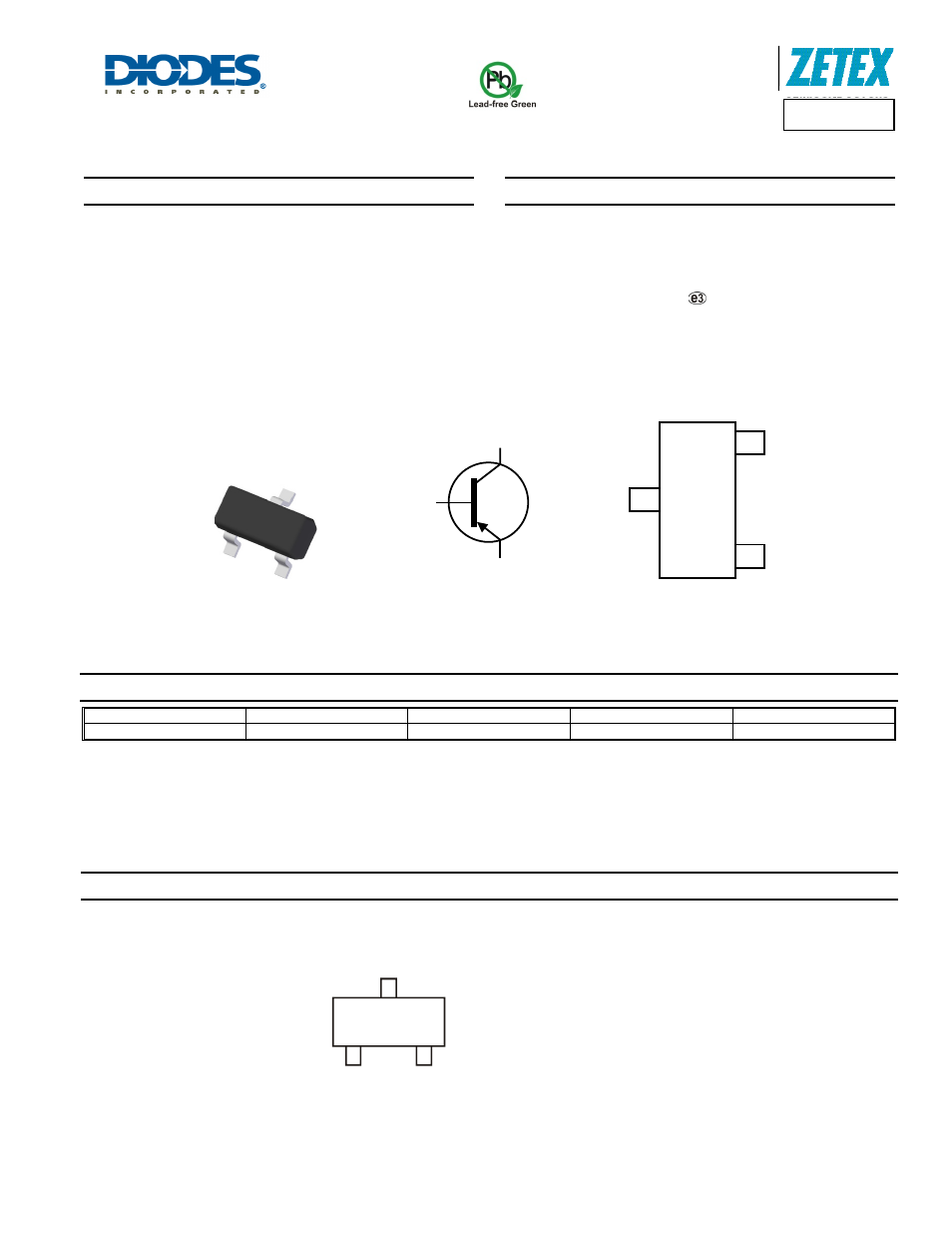

Marking Information
Top View Top View
Pin-Out
589 = Product Type Marking Code
Device Symbol
SOT23
589
C
E
B
C
E
B
