FCX619
Da
tasheet Number: DS33067 Rev. 7 - 2
1 of 6
www.diodes.com
February 2013
© Diodes Incorporated
FCX619
A Product Line of
Diodes Incorporated
50V NPN LOW SATURATION POWER TRANSISTOR IN SOT89
Features
 BV
CEO
> 50V
 I
C
= 3A high Continuous Collector Current
 I
CM
up to 6A Peak Pulse Current
 2W Power Dissipation

Low saturation voltage V CE(sat) < 220mV @ 1A

R CE(sat) = 87m Ω @ 2.75A for a low equivalent on-resistance

h
FE
characterised up to 6A for high current gain hold-up

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case:
SOT89

Case Material: Molded Plastic, “Green” Molding Compound
 UL Flammability Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
 Weight: 0.052 grams (Approximate)
Applications
 Load Management Functions
 Motor
Control

DC-DC / DC-AC Converters
Ordering Information
(Note 4)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
FCX619TA 619 7 12 1,000
FCX619-13R 619 13 12 4,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html

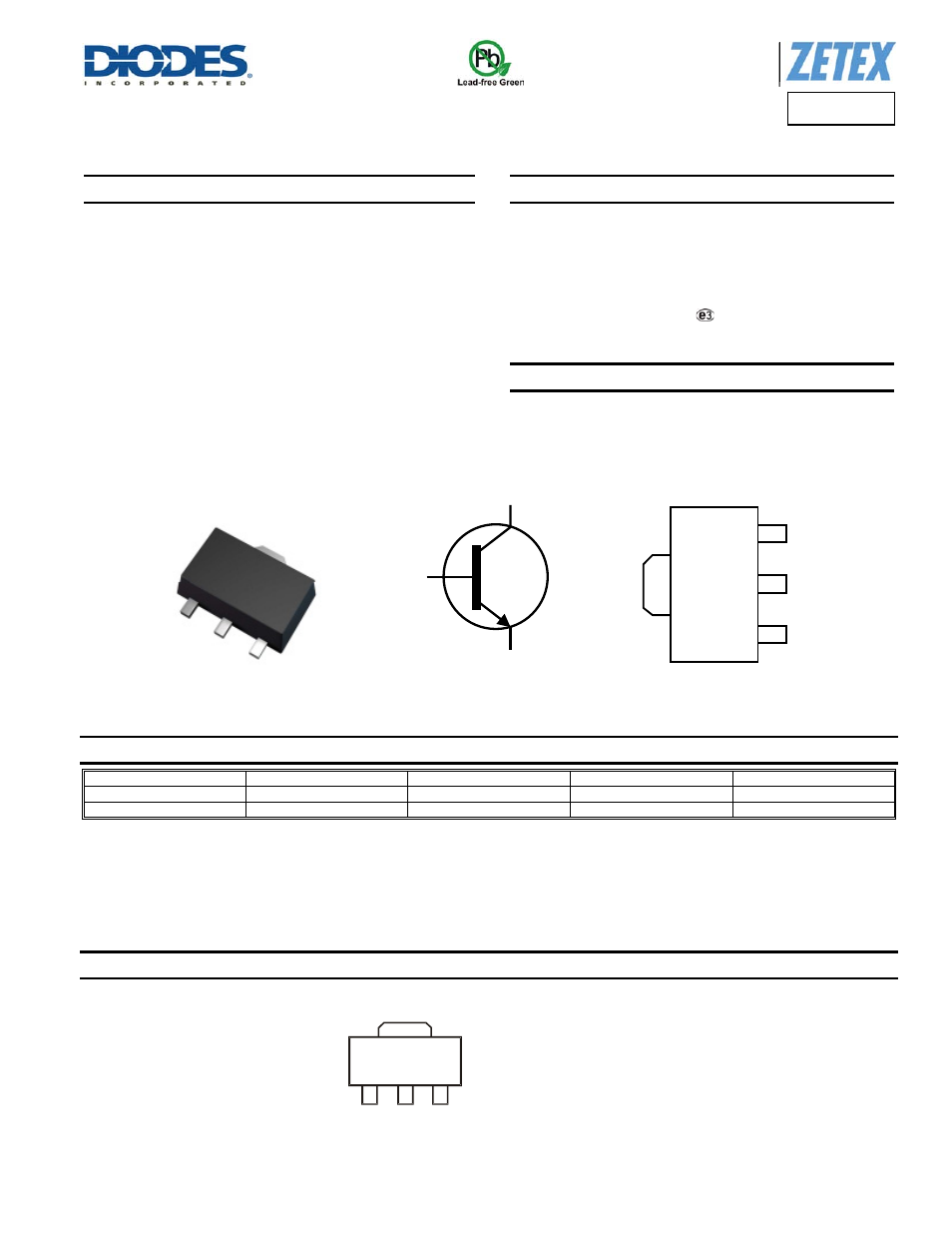

Marking Information
Top View
SOT89
Device Symbol Top View
Pin-Out
619 = Product Type Marking Code
C
E
B
C
E
C
B
619
