Diodes DXT790AP5 User Manual
Dxt790ap5, Features, Mechanical data

POWERDI is a registered trademark of Diodes Incorporated.

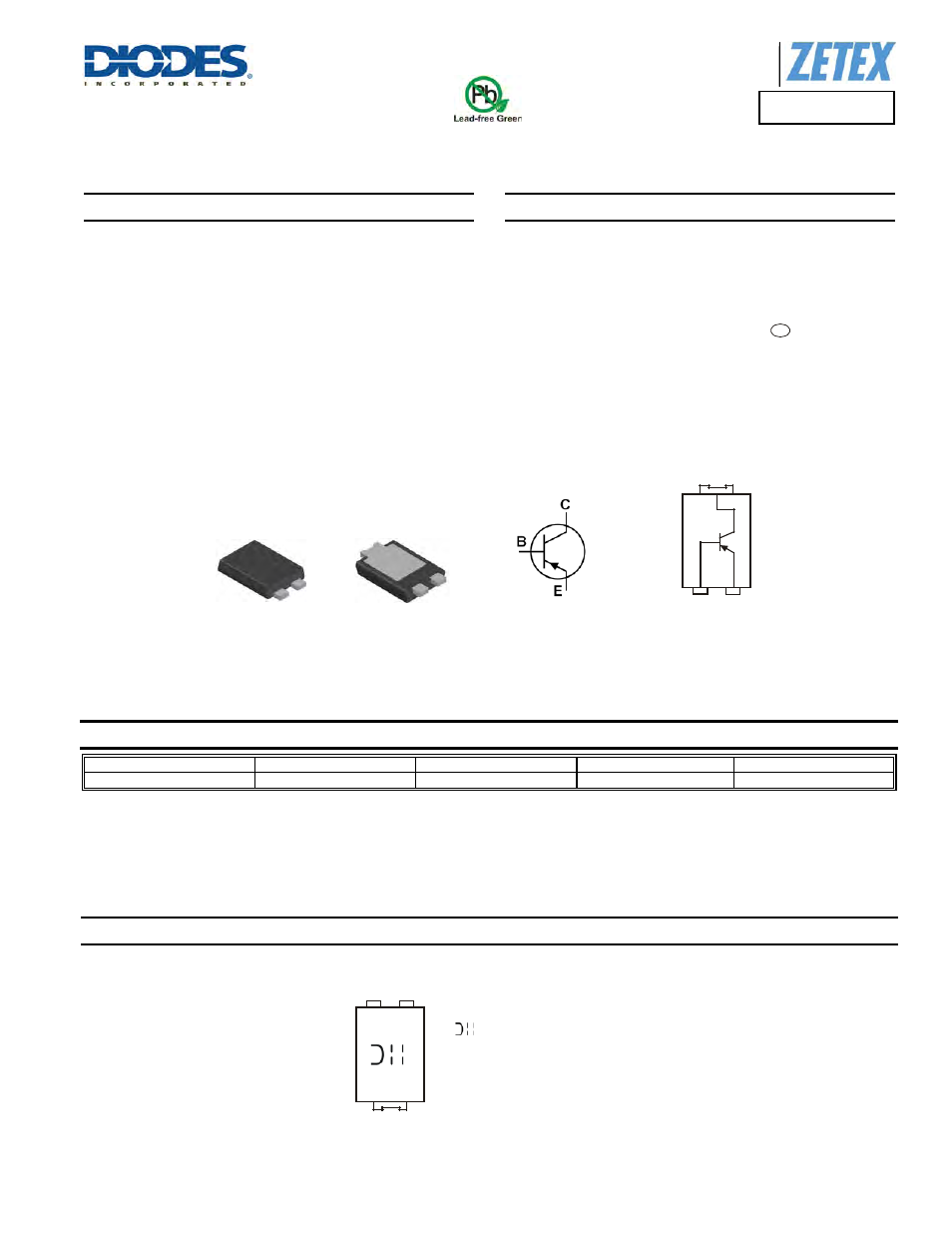

DXT790AP5
Document number: DS31800 Rev. 3 - 2
1 of 7
June 2013
© Diodes Incorporated
DXT790AP5
A Product Line of
Diodes Incorporated
40V PNP HIGH GAIN TRANSISTOR
POWERDI
®
Features
•
BV
CEO
> -40V
•
I
C
= -3A high Continuous Collector Current
•
I
CM
= -6A Peak Pulse Current
•
43% smaller than SOT223; 60% smaller than TO252
•
Maximum Height Just 1.1mm
•
Rated up to 3.2W
•
Low Saturation, High Gain Transistor,
•
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
Case: POWERDI5
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.093 grams (approximate)
Ordering Information
(Note 4)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
DXT790AP5-13
DXT790A
13
16
5,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Top View
Bottom View
Device Schematic
Top View
Pin Out
C
B
E
DXT790A = Product Type Marking Code
= Manufacturers’ Code Marking
K = Factory Designator
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 09 for 2009)
WW = Week code (01 to 53)
YYWWK
DXT790A
POWERDI5
e3
