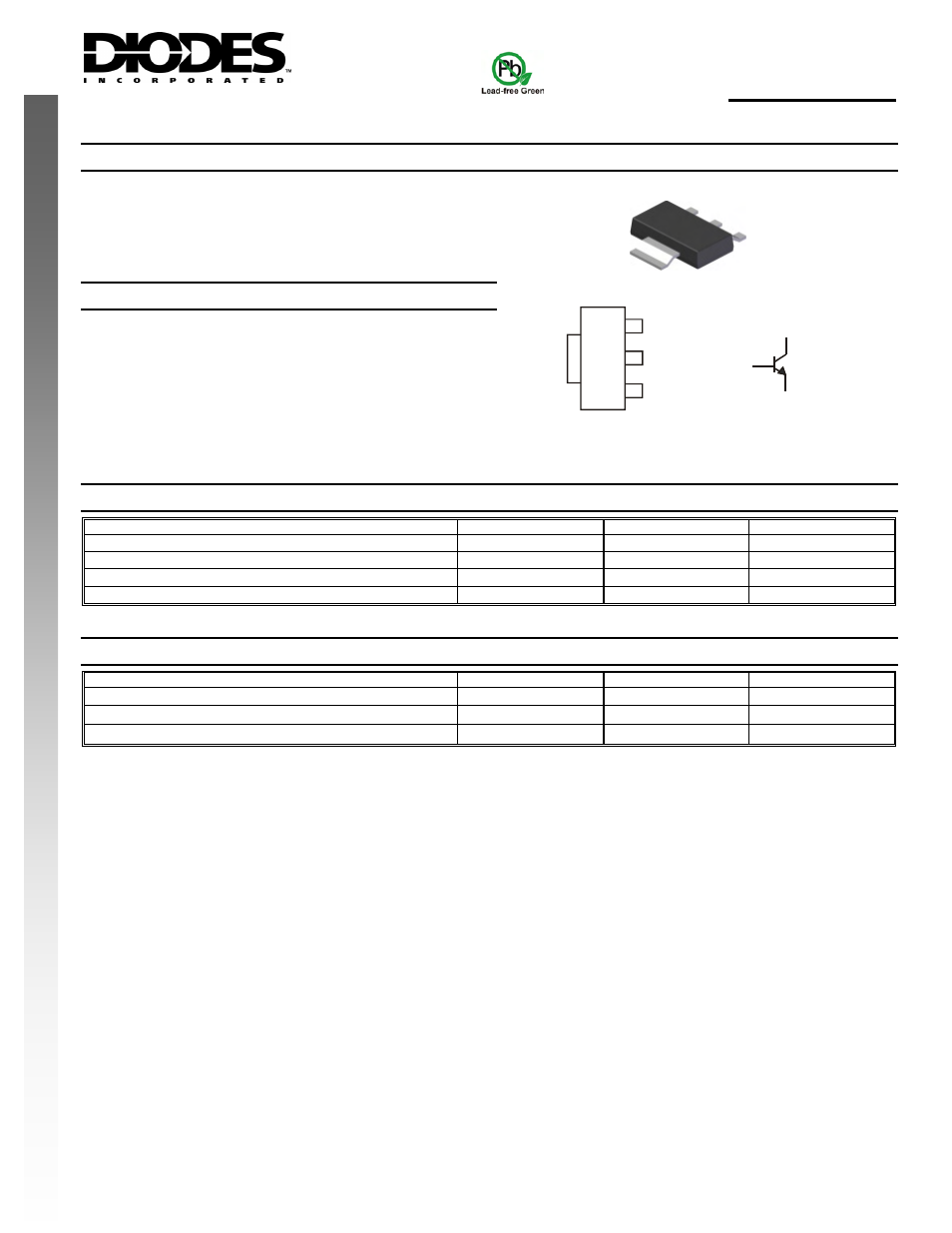

DZT2222A
© Diodes Incorporated
DZT2222A
NPN SURFACE MOUNT TRANSISTOR
Features
•
Epitaxial Planar Die Construction
•
Complementary PNP Type Available (DZT2907A)
• Ideally Suited for Automated Assembly Processes
• Ideal for Medium Power Switching or Amplification Applications
•
Lead Free By Design/RoHS Compliant (Note 1)
•
"Green" Device (Note 2)
Mechanical Data
• Case: SOT-223
• Case Material: Molded Plastic, "Green" Molding Compound. UL
Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020C
• Terminals: Finish - Matte Tin annealed over Copper Leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
•
Marking Information: See Page 4
•
Ordering Information: See Page 4
•
Weight: 0.115 grams (approximate)
2
3
4
1
SOT-223
NEW PROD
UC
T
3
1
2,4
COLLECTOR
BASE
EMITTER
4
3
2
1
C C
B
E
TOP VIEW
Schematic and Pin Configuration
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic Symbol Value Unit
Collector-Base Voltage V
CBO
75 V
Collector-Emitter Voltage V
CEO
40 V
Emitter-Base Voltage V EBO
6 V
Collector Continuous Current I
C
600 mA
Thermal Characteristics
Characteristic Symbol Value Unit
Power Dissipation @ T A = 25
°C (Note 3)
P d
1 W
Thermal Resistance, Junction to Ambient Air (Note 3) @T
A
= 25 °C
R θJA 125 °C/W
Operating and Storage Temperature Range T
j
, T
STG
-55 to +150 °C
Notes: 1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
3. Device mounted on FR-4 PCB pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can
be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
