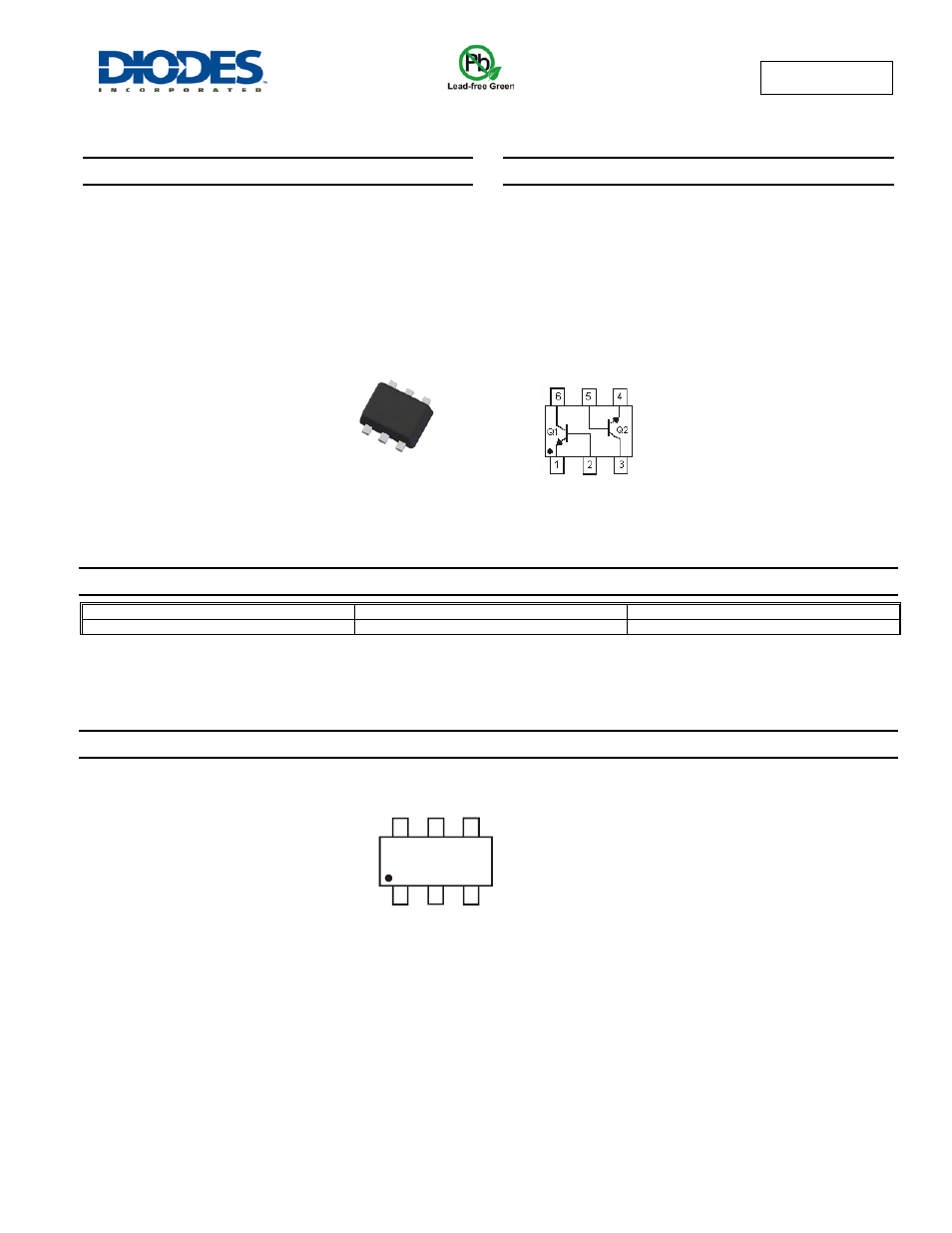

DST847BDJ

Document number: DS32035 Rev. 1 - 2

1 of 5

www.diodes.com

January 2010

© Diodes Incorporated

DST847BDJ


DUAL NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Features

Epitaxial Planar Die Construction

Ideally Suited for Automated Assembly Processes

Lead, Halogen and Antimony Free, RoHS Compliant (Note 1)

“Green” Device (Note 2)

Ultra Small Package

Mechanical Data

• Case:

SOT-963

Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

• Terminals:

Finish

⎯ Matte Tin annealed over Copper leadframe.

Solderable per MIL-STD-202, Method 208

Weight: 0.0027 grams (approximate)

















Ordering Information

Device

Packaging

Shipping

DST847BDJ-7

SOT-963

10,000/Tape & Reel

Notes:

1. No purposefully added lead. Halogen and Antimony Free.

2. Diodes Inc’s “Green” Policy can be found on our website at http://www.diodes.com




Marking Information




























Device Schematic

Top View

SOT-963

TA = Product Type Marking Code


TA
