DSS5240T
Document number: DS31591 Rev. 4 - 2
1 of 7
www.diodes.com
May 2014
© Diodes Incorporated
DSS5240T
NEW PROD
UC
T
40V PNP LOW SATURATION TRANSISTOR IN SOT23
Features
• BV
CEO
> -40V
• I
C
= -2A high Continuous Collector Current
• I
CM
= -3A Peak Pulse Current
• Low Saturation Voltage -225mV Max @ I
C
= -1A.
• R
CE(SAT)
= 90mΩ at 0.5A for a Low Equivalent On-Resistance
• 730mW Power Dissipation
• Complimentary NPN Type: DSS4240T
• Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
• PPAP capable (Note 4)
Mechanical Data
• Case: SOT23
• Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
• Weight 0.008 grams (approximate)
Application
• Gate Driving MOSFETs and IGBTs
• Load Switch
• DC-DC Converters
• Battery Charging
Ordering Information
(Note 4 & 5)
Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel
DSS5240T-7 AEC-Q101 ZP2 7 8 3,000
DSS5240TQ-7 Automotive ZP2 7 8 3,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen and Antimony free, "Green”
and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
Code A B C D E F G H I J K
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D

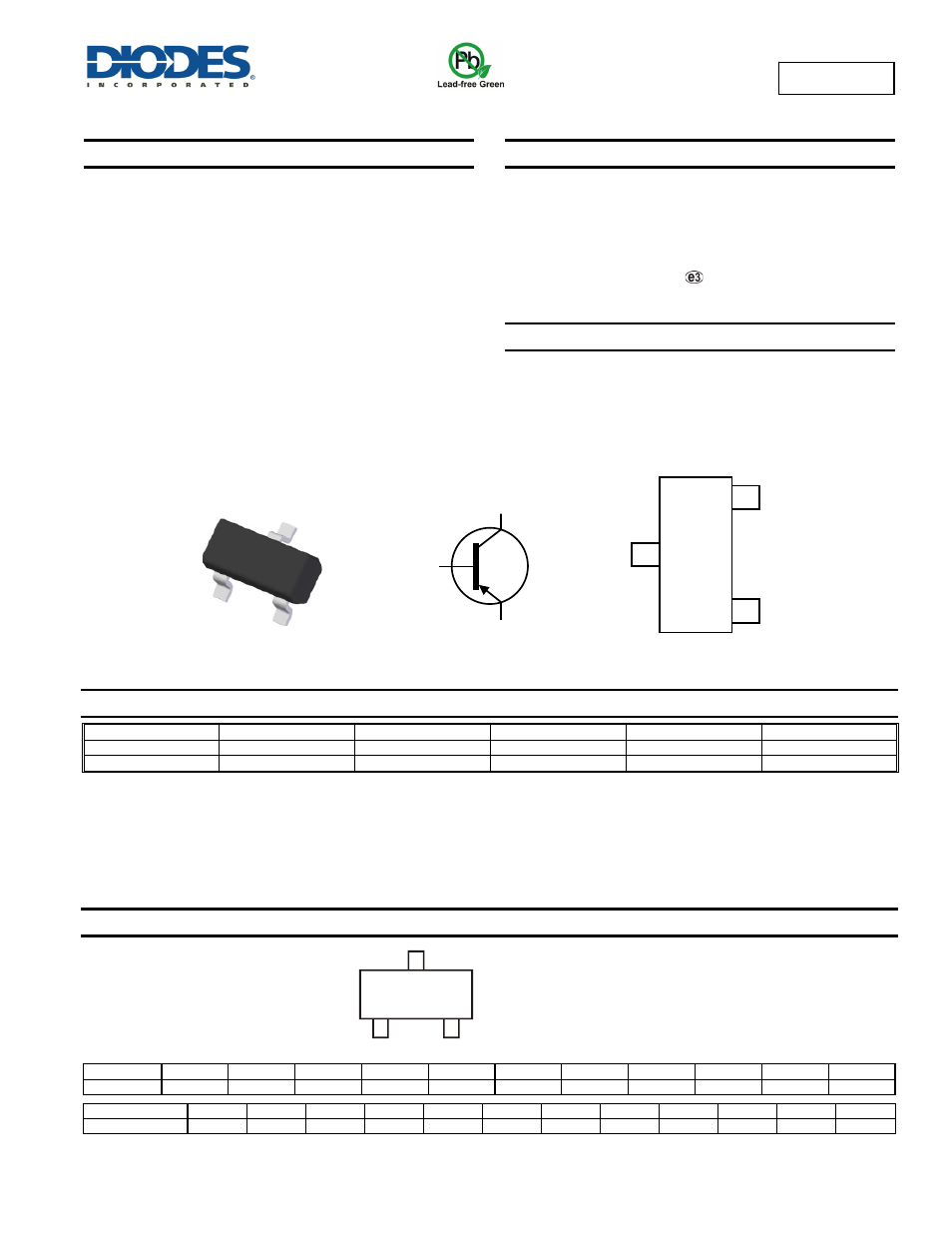

SOT23
Top View
Pin-Out
Top View Device Symbol
C
E
B
C
E
B
ZP2 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: V = 2008)
M = Month (ex: 9 = September)
ZP2
YM
