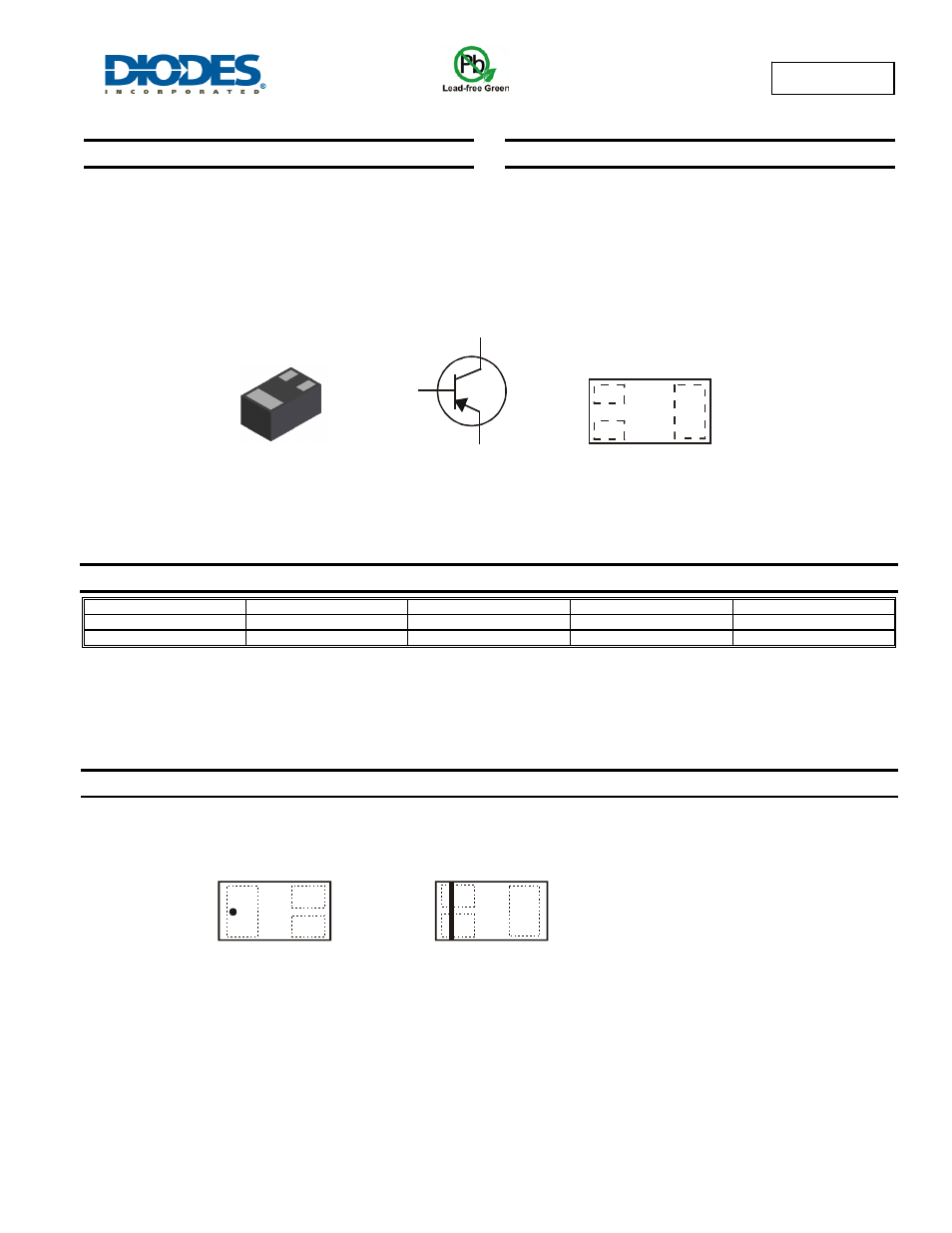

DSS3540M
40V LOW V
CE(sat)
PNP SURFACE MOUNT TRANSISTOR
Features
•
Low Collector-Emitter Saturation Voltage, V
CE(sat)
•
Ultra-Small Leadless Surface Mount Package
•
ESD: HBM 8kV, MM 400V
•
Complementary NPN Type Available (DSS2540M)
•
“Lead Free”, RoHS Compliant (Note 1)
•
Halogen and Antimony Free, "Green" Device (Note 2)
Mechanical Data
• Case:
DFN1006-3
•
Case Material: Molded Plastic, "Green" Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
• Terminals:
Finish
⎯ NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
•
Weight: 0.0009 grams (Approximate)
Ordering Information
(Note 3)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
DSS3540M-7
TD 7 8mm
3,000
DSS3540M-7B
TD 7 8mm
10,000
Notes:
1. No purposefully added lead.
2. Diodes Inc's "Green" policy can be found on our w
Marking Information
Bottom View
Top View
Device Schematic
DFN1006-3
C
E
B
Device Symbol
TD = Product Type Marking Code
C
E
B
TD
TD
Top View
Dot Denotes Collector Side
DSS3540M-7
Top View
Bar Denotes Base and Emitter Side
DSS3540M-7B
