DSS20200L
20V PNP LOW SATURATION TRANSISTOR IN SOT23
Features
• BV
CEO
> -20V
• I
C
= -2A Continuous Collector Current
• I
CM
= -4A Peak Pulse Current
• Low Saturation Voltage V
CE(sat)
< -120mV @ -1A
• R
CE(SAT)
= 40mΩ for a low equivalent on-resistance
• Complimentary NPN Type : DSS20201L
• Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: SOT23
• Case Material: molded plastic, “Green” molding compound
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
• Weight: 0.008 grams (approximate)
Ordering Information
(Note 4)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
DSS20200L-7 ZP1 7 8 3,000
DSS20200L-13 ZP1 13 8 10,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 2008 2009 2010 2011 2012 2013 2014 2015
Code V W X Y Z A B C
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D

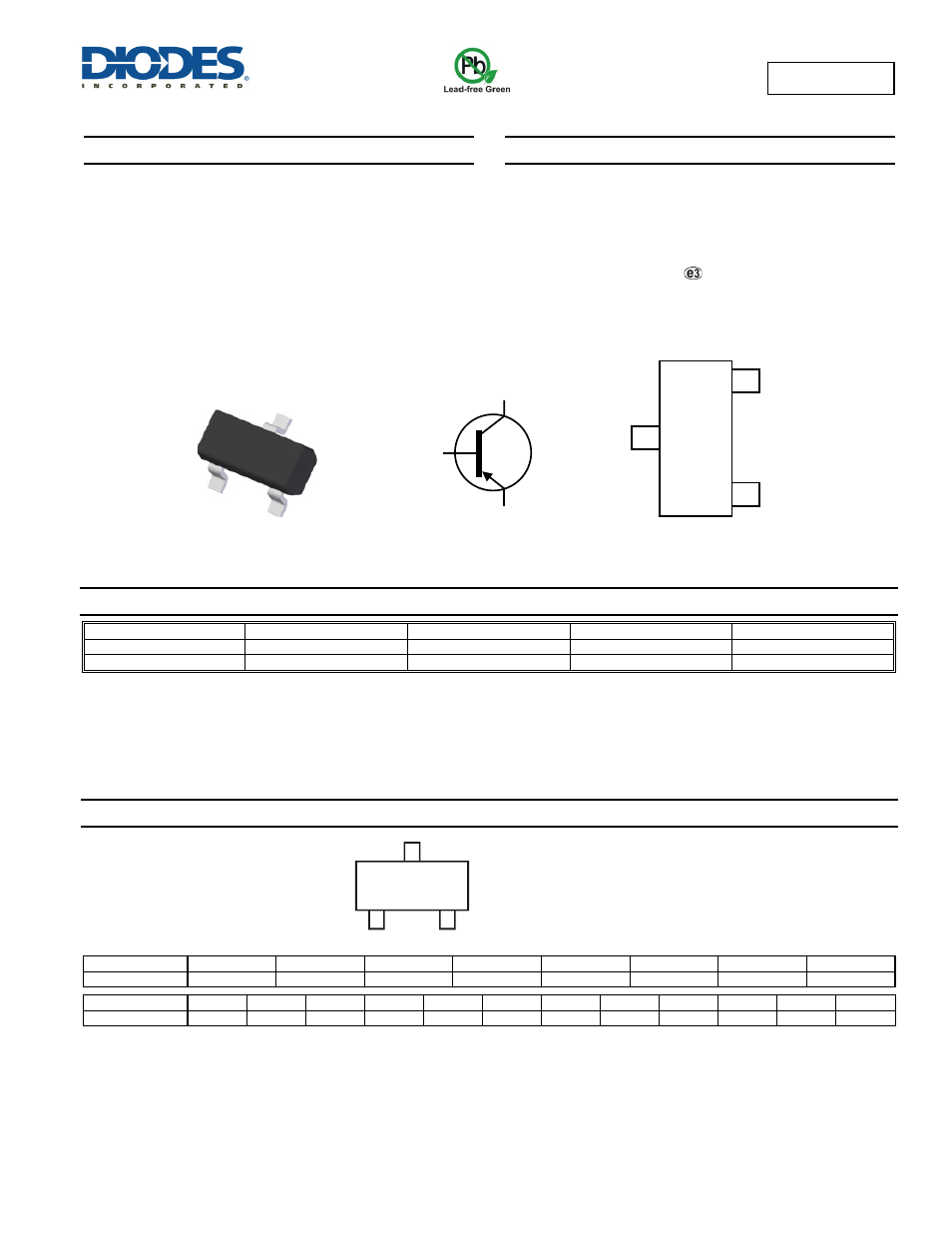

SOT23
Top View
Pin-Out
Top View Device Symbol
C
E
B
C
E
B
ZP1 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)
ZP1
YM
