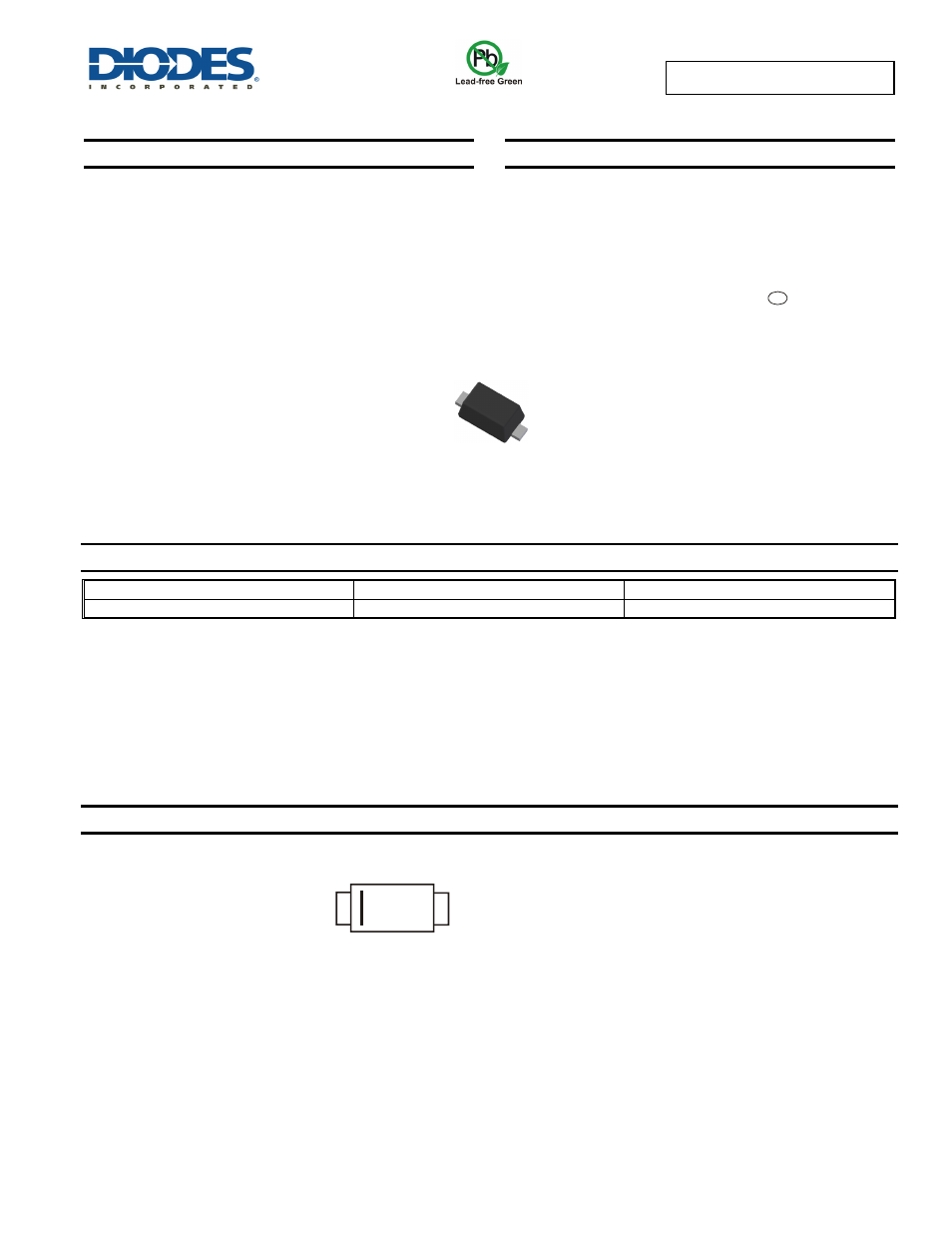

DDZ9689T - DDZ9717T
SURFACE MOUNT ZENER DIODE
Features
•
Small, Low Profile Surface Mount Package
•
Very Sharp Breakdown Characteristics
•
Ideally Suited for Automated Assembly Processes
•
Very Low Leakage Current
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
• Case:
SOD523
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020D
•
Terminal Connections: Cathode Band
•
Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.002 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
(Type Number)-7* (Note 5)
SOD523
3000/Tape & Reel
*Example: The part number for the 6.2 Volt device would be DDZ9691T-7.
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
5.
Dispensed in every other cavity of the tape.
Marking Information
Top View
xx = Product Type Marking Code
(See Electrical Characteristics Table)
xx
e3
