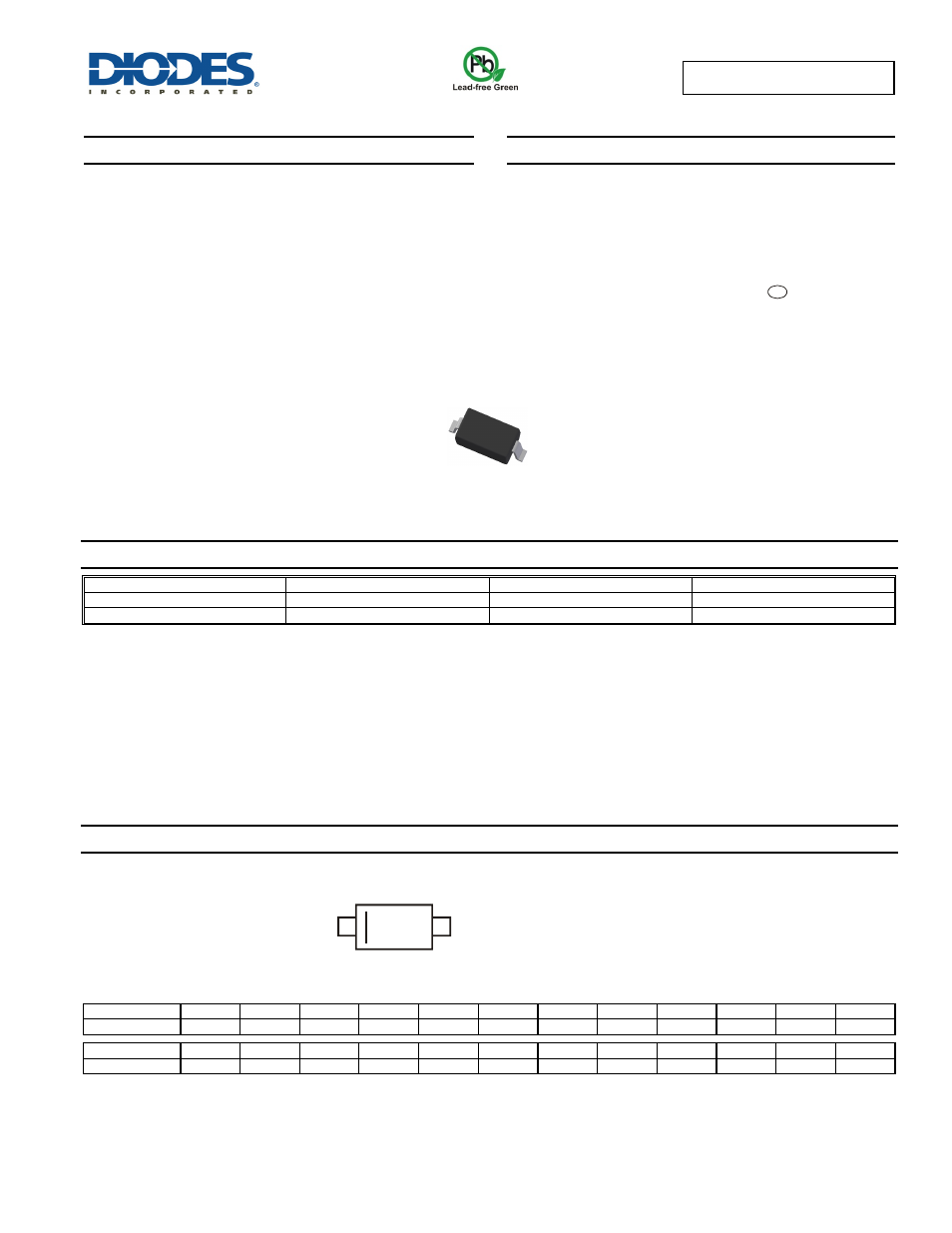

DDZ9678 - DDZ9717

Document number: DS30410 Rev. 15 - 2

1 of 7

www.diodes.com

November 2013

© Diodes Incorporated

DDZ9678 - DDZ9717


SURFACE MOUNT LOW CURRENT ZENER DIODE

Features

500mW Power Dissipation on Ceramic PCB

Specified at a Low Test Current (50µA), ideal for low bias and
portable battery-powered applications

Ideally Suited for Automated Assembly Processes

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)


Mechanical Data

• Case:

SOD123

Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: Cathode Band

Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe.
Solderable per MIL-STD-202, Method 208

Weight: 0.01 grams (approximate)















Ordering Information

(Notes 4 & 5)

Part Number

Compliance Case

Packaging

(Type Number)-7*

Standard

SOD123

3000/Tape & Reel

(Type Number)Q-7* (Note 6)

Automotive

SOD123

3000/Tape & Reel

*Example: The part number for the commercial grade 4.7 Volt device would be DDZ9688-7 and the part number for the automotive grade 4.7 Volt device would be

DDZ9688Q-7.

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.
4. Product manufactured with Date Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date

Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb

2

O

3

Fire Retardants.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
6. Only products denoted Note 10 in the "Electrical Characteristics" table are currently available as automotive grade devices.



Marking Information










Date Code Key

Year

2006

2007

2008

2009

2010

2011

2012

2013

2014

2015 2016 2017

Code T U V W X Y Z A B C D E

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code 1 2 3 4 5 6 7 8 9 O N D







Top View

xx = Product Type Marking Code -
(See Electrical Characteristics Table)
YM = Date Code Marking
Y = Year (ex: T = 2006)
M = Month (ex: 9 = September)

xx

YM

SOD123

e3
