HD01 – HD06
Document number: DS17003 Rev. 13 - 2
1 of 4
December 2010
© Diodes Incorporated
HD01 – HD06
0.8A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Features and Benefits
•
Glass Passivated Die Construction
•
Low Forward Voltage Drop
•
Surge Overload Rating to 30A Peak
•
Ideally Suited for Automated Assembly
•
Miniature Package Saves Space on PC Boards
•
UL Listed Under Recognized Component Index, File Number
E94661
•
Lead Free Finish, RoHS Compliant (Note 1)
Mechanical Data
• Case:
MiniDIP
•
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
• Terminals:
Finish
⎯ Tin. Plated Leads, Solderable per MIL-STD-
202, Method 208
•
Polarity: As Marked on Case
•
Marking: Type Number, Date Code & Polarity Markings
•
Weight: 0.125 grams (approximate)
Ordering Information
(Note 2)
Device*
Packaging
Shipping
HDxx-T
MiniDIP
3K/Tape & Reel, 13-inch
*xx = Device type, e.g. HD02-T or HD04-T, etc.
Notes:
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes
2. For packaging details, visit our website at
Marking Information
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1
2
3
4
5
6
7
8
9
O
N
D

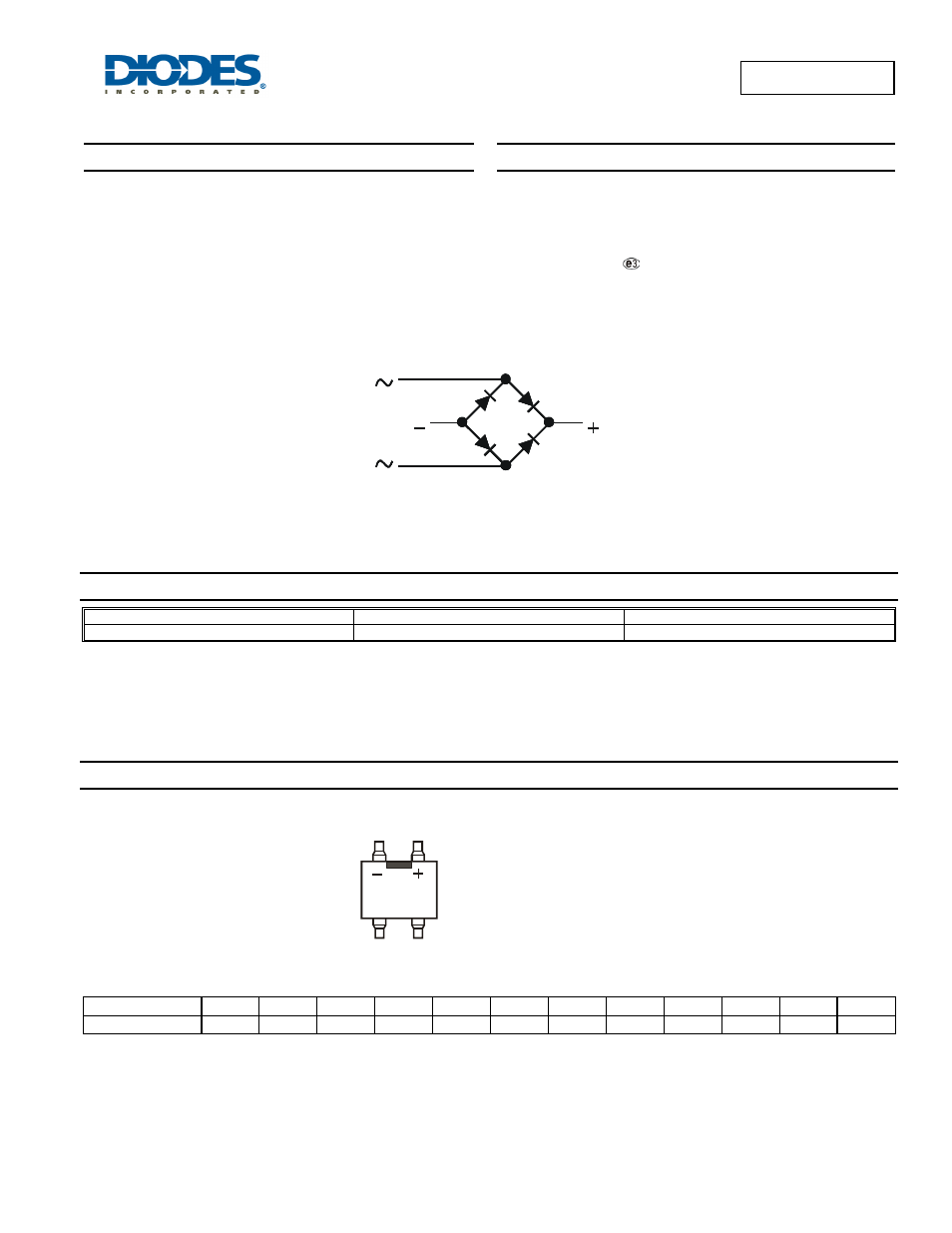

Equivalent Circuit
HDxx = Product Type Marking Code (ex: HD04)
YM = Date Code Marking
Y = Last Digit of the Year
M = See Month/Code Table Below
HDxx
YM
