Diodes MBR2045CTP User Manual
Mbr2045ctp new prod uc t, Features, Mechanical data

MBR2045CTP
Document number: DS31799 Rev. 5 - 2
1 of 4
June 2011
© Diodes Incorporated
MBR2045CTP
NEW PROD
UC
T
20A SCHOTTKY BARRIER RECTIFIER
Features
•
Low Forward Voltage Drop
•
Soft, Fast Switching Capability
• Schottky
Barrier
Chip
•
ITO-220S Heat Sink Tab Electrically Isolated from Cathode
•
UL Approval in Accordance with UL 1557, Reference No.
E94661
Mechanical Data
• Case:
ITO-220S
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 1.335 grams (approximate)
Ordering Information
(Note 1)
Part Number
Case
Packaging
MBR2045CTP ITO-220S 50
pieces/tube
Notes:
1. For packaging details, go to our website at
Marking Information

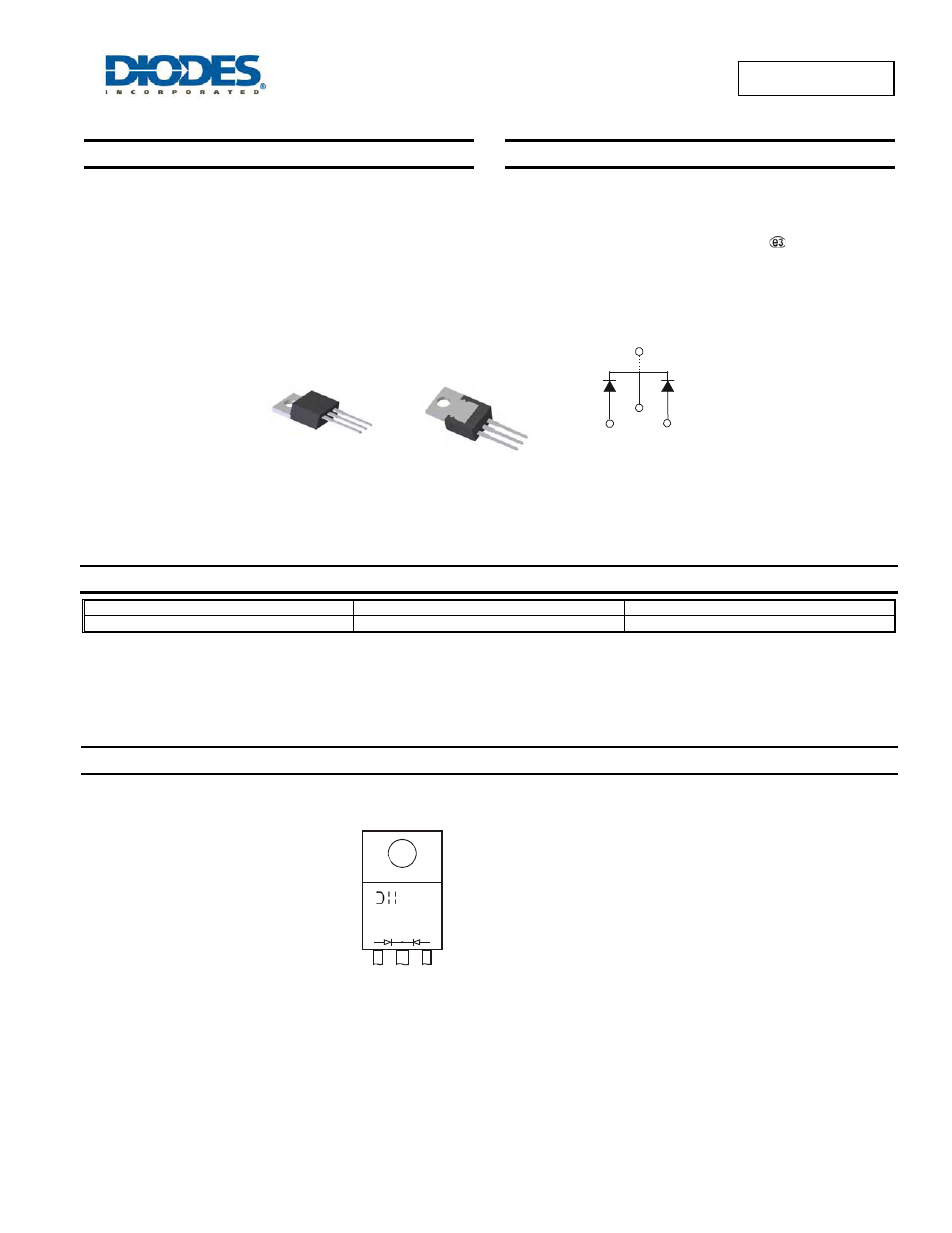

Package Pin Out
Configuration
Top View
1
2
3
4
Anode
Common
Cathode
Anode
Isolated
Bottom View
MBR2045CTP = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 09 = 2009)
WW = Week (01 - 53)
2045CTP
YYWW
AB
MBR
