Preliminary datasheet, High voltage power schottky rectifier mbr5h150, General description

Preliminary Datasheet
HIGH VOLTAGE POWER SCHOTTKY RECTIFIER MBR5H150
Aug. 2009 Rev. 1. 0 BCD Semiconductor Manufacturing Limited
1
General Description
High voltage schottky rectifier suited for switch
mode power supplies and other power converters.
This device is intended for use in medium voltage
operation, and particularly, in high frequency circuits
where low switching losses and low noise are
required.
The MBR5H150 is available in standard DO-27 and
DO-27(A) packages.
Features
•
High Surge Capacity
•
Low Forward Voltage Drop
• 175
°C Operating Junction Temperature
•
Guard-Ring for Stress Protection
• Pb-Free and Halogen-Free Packages are
available
•
The Plastic Material Carries UL Recongnition
94V-0
Main Product Characteristics
I
F(AV)
5A
V
RRM
150V
T
J
175
°C
V
F(max)
0.92V
Mechanical Characteristics
• Case: JEDEC DO-201AD Molded Plastic
•
Epoxy Meets UL 94 V-0@ 0.125 in
•
Weight (Approximately): 1.2 Grams
• Finish: All External Surfaces Corrosion
Resistant and Terminal
Applications
• Power
Supply
− Output Rectification
• Power
Management
• Instrumentation

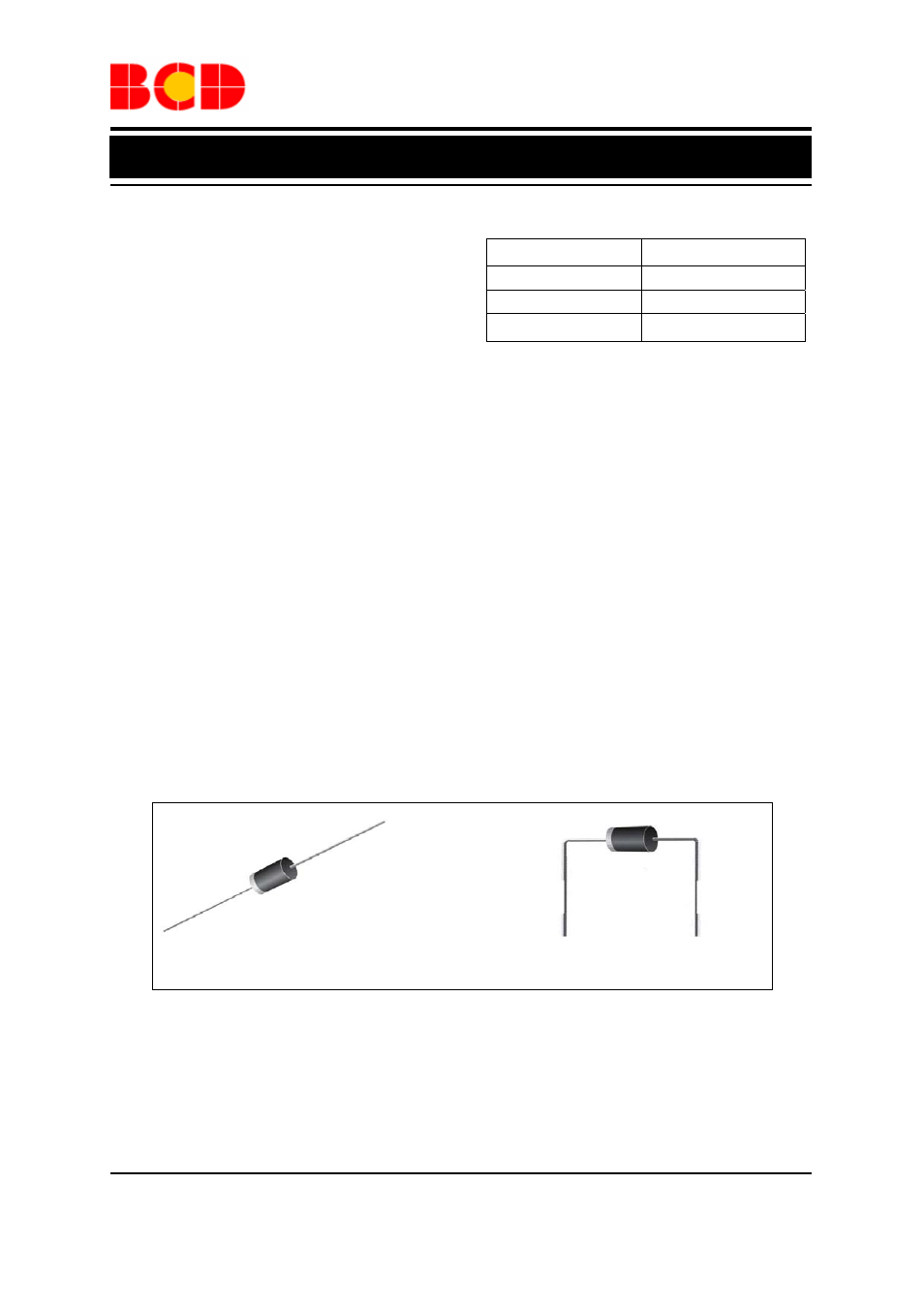

Figure 1. Package Type of MBR5H150
DO-27 DO-27(A)
