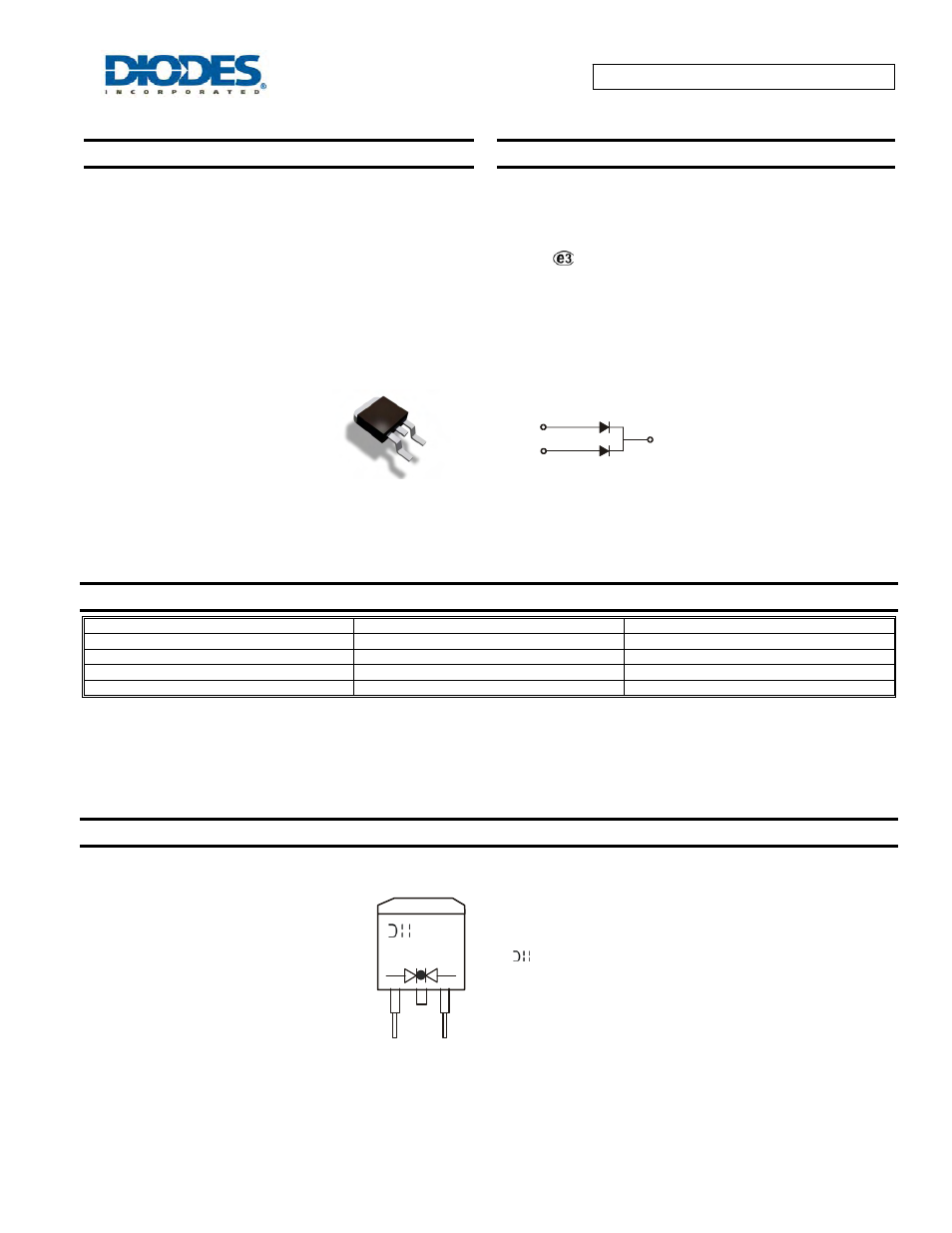

MBRB1530CT - MBRB1545CT
15A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Features and Benefits
•
Guard Ring Die Construction for Transient Protection
•
Low Power Loss, High Efficiency
•
High Surge Capability
•
High Current Capability and Low Forward Voltage Drop
•
Surge Overload Rating to 150A Peak
•
For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Applications
•
Lead Free Finish, RoHS Compliant (Note 1)
Mechanical Data
•
Case: D
2
PAK
•
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish
⎯ Tin. Solderable per MIL-STD-202, Method
208
•
Polarity: See Diagram
•
Weight: 1.7 grams (approximate)
Ordering Information
(Note 2)
Device
Packaging
Shipping
MBRB1530CT-T D
2
PAK
800/Tape & Reel, 13-inch
MBRB1535CT-T D
2
PAK
800/Tape & Reel, 13-inch
MBRB1540CT-T D
2
PAK
800/Tape & Reel, 13-inch
MBRB1545CT-T D
2
PAK
800/Tape & Reel, 13-inch
Notes:
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes
2. For packaging details, visit our website at
Marking Information
Top View
MBRB15XXCT = Product Type Marking Code Where
xx = 30, 35, 40 or 45, Depending on Device Type
= Manufacturers’ Code Marking
YWW = Date Code Marking
Y = Last Digit of Year (ex: 2 for 2002)
WW = Week Code (01 to 53)
PIN 1
PIN 3
PIN 2 & 4
Polarity
YWW
MBRB15XXCT
