MBR10100

Document number: DS31412 Rev. 11 - 2

1 of 4

www.diodes.com

April 2011

© Diodes Incorporated

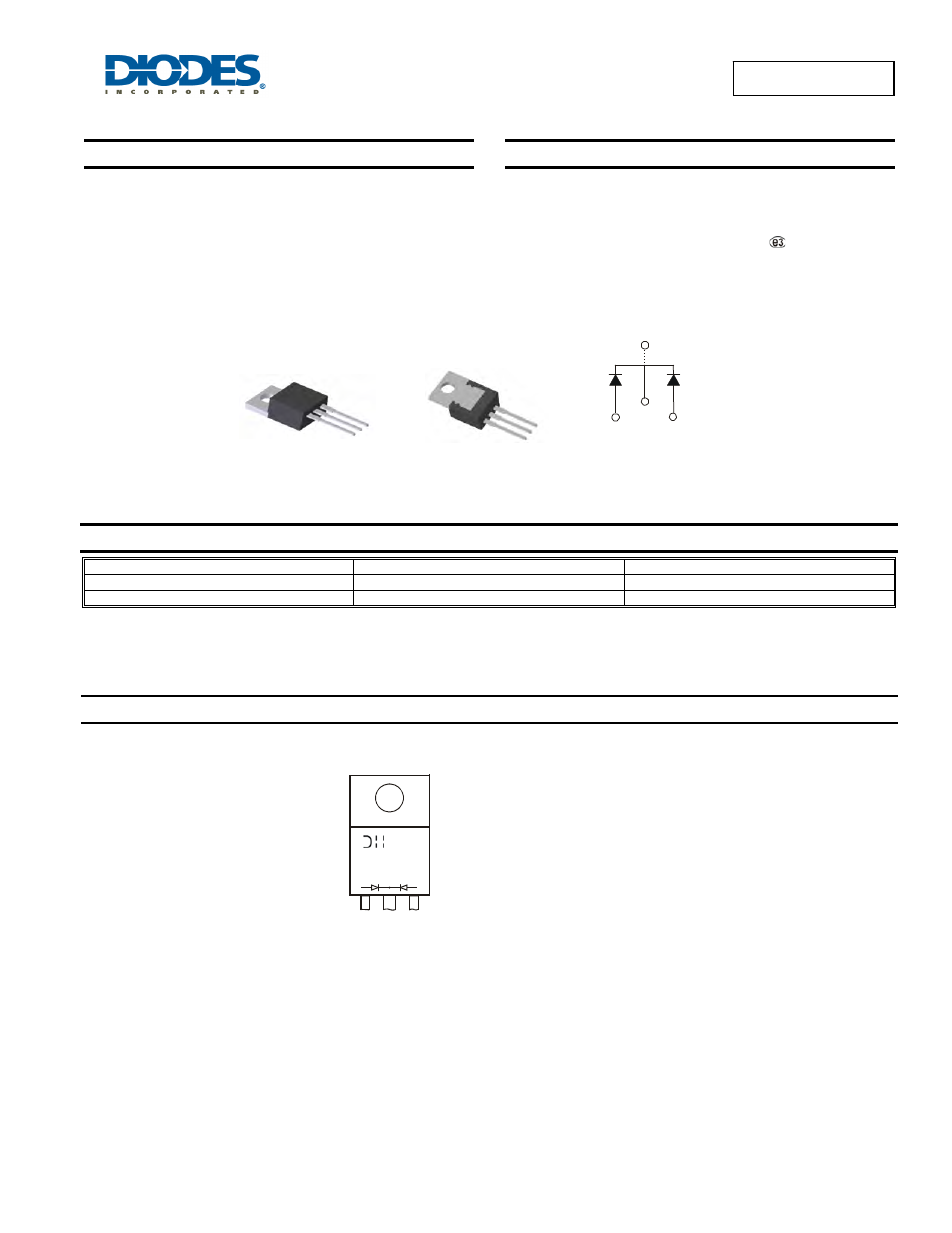

MBR10100CTP


10A SCHOTTKY BARRIER RECTIFIER

Features

Low Forward Voltage Drop

Soft, Fast Switching Capability

• Schottky

Barrier

Chip

ITO-220S Heat Sink Tab Electrically Isolated from Cathode

UL Approval in Accordance with UL 1557, Reference No.
E94661

Mechanical Data

• Case:

ITO-220S

Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0

Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208

Weight: 1.335 grams (approximate)

Ordering Information

(Notes 1 & 2)

Part Number

Case

Packaging

MBR10100CTP ITO-220S 50

pieces/tube

MBR10100CTP-G ITO-220S 50

pieces/tube

Notes:

1. For packaging details, go to our website at http://www.diodes.com.
2. For Green Molding compound version part number, add “-G” suffix to part number. Example: MBR10100CTP-G.




Marking Information











Package Pin Out

Configuration

1

2

3

4

Anode

Common

Cathode

Anode

Isolated

Top View

Bottom View

MBR10100CTP = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 08 = 2008)
WW = Week (01 - 53)

10100CTP

YYWW

AB

MBR
