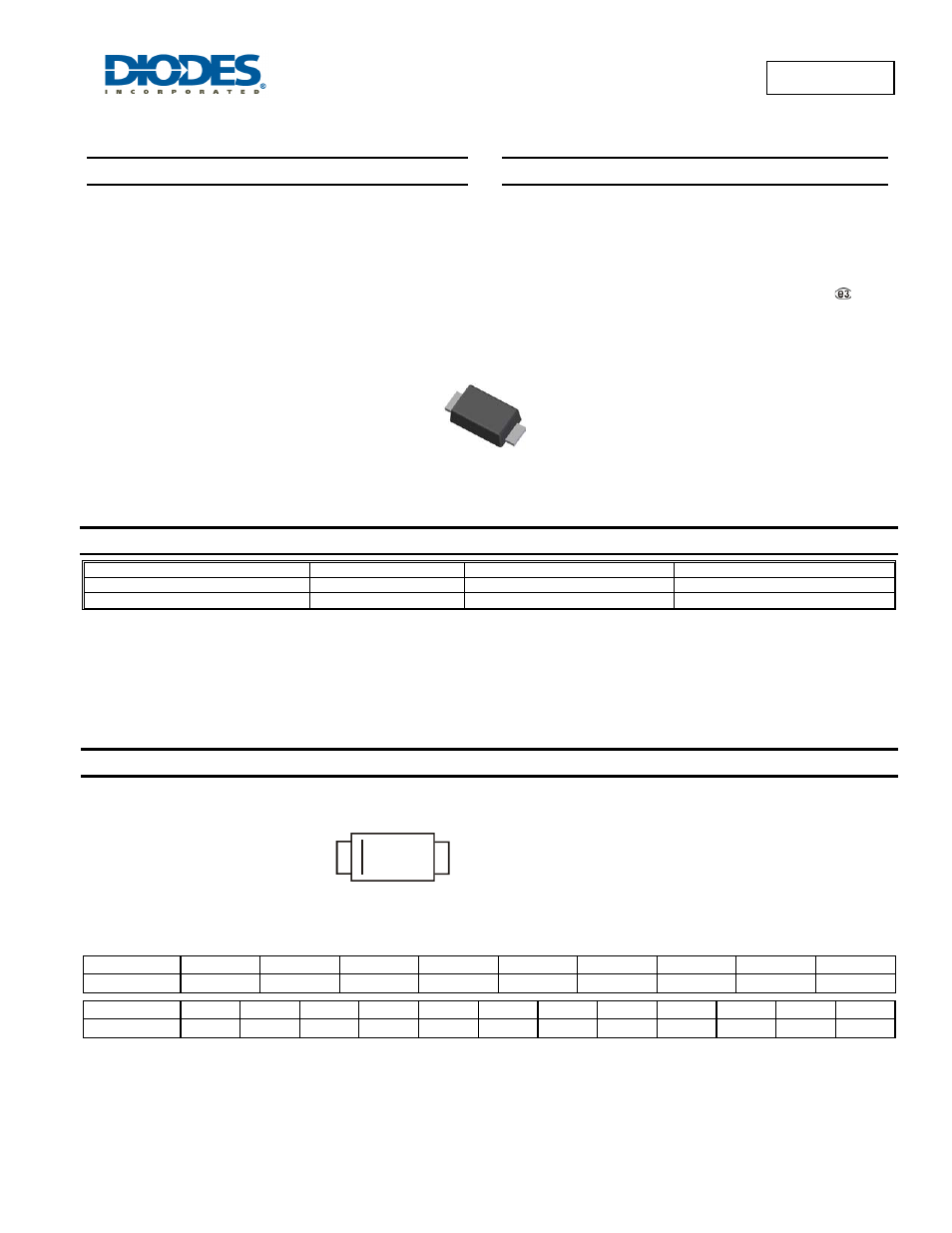

DFLS1100
Document number: DS30497 Rev. 11 - 2
1 of 5
September 2013
© Diodes Incorporated
DFLS1100
POWERDI is a registered trademark of Diodes Incorporated.
1.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER
POWERDI
®
123
Features
Guard Ring Die Construction for Transient Protection
Low Power Loss, High Efficiency
Patented Interlocking Clip Design for High Surge Current
Capacity
Lead Free Finish, RoHS Compliant (Note 1 & 2)
Halogen and Antimony Free.”Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
POWERDI
®
123
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Cathode Band
Terminals: Finish – Matte Tin annealed over Copper
leadframe. Solderable per MIL-STD-202, Method 208
Weight: 0.01 grams (approximate)
Ordering Information
(Note 4)
Part Number Compliance
Case
Packaging
DFLS1100-7 Commercial
POWERDI
®
123
3000/Tape & Reel
DFLS1100Q-7 Automotive
POWERDI
®
123
3000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2013
2014
2015
2016
2017
2018
2019
2020
2021
Code
A
B
C
D
E
F G H I
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Top View
F09 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: T = 2013)
M = Month (ex: 9 = September)
F09
YM
