74LVC1G98
CONFIGURABLE MULTIPLE-FUNCTION GATE
74LVC1G98
Document number: DS35128 Rev 5 - 2
3 of 15
www.diodes.com
June 2012
© Diodes Incorporated
NEW PROD
UC
T

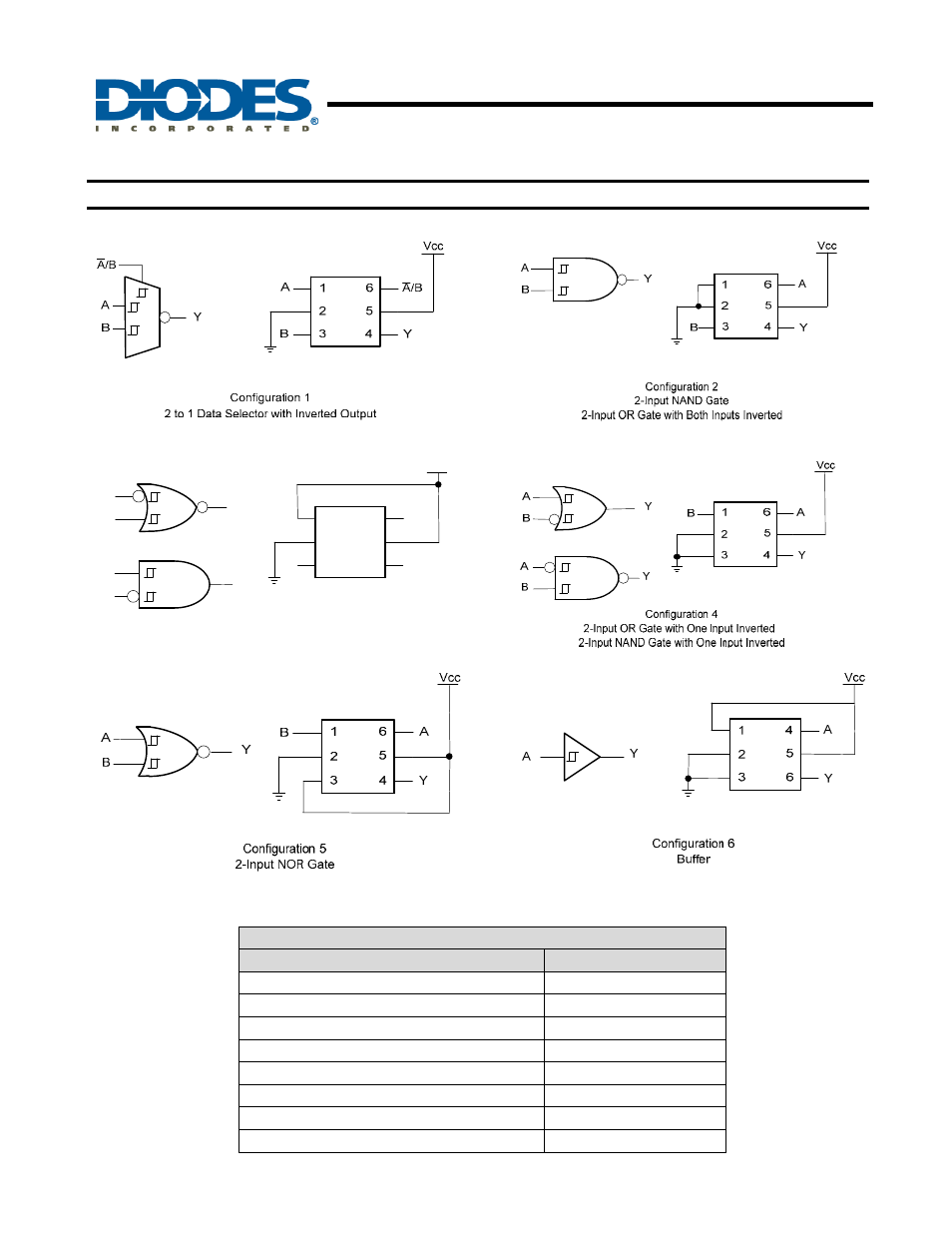

Logic Configurations
2-Input NAND Gate with B Input Inverted
2-Input OR Gate with A Input Inverted
Configuration 3
B Y
A
4 3
2 5
6 1
Vcc
Y
A
B
A
B
Y
Function Selection Table
Logic Function Configuration
2-to-1 Data Selector with inverted output 1
2-input NAND gate 2
2-input AND with inverted input 3
2-input NOR with inverted input 3
2-input NAND with one inverted input 4
2-input OR with one inverted input 4
2-input NOR 5
1-input Buffer 6
