74LVC1G98
CONFIGURABLE MULTIPLE-FUNCTION GATE
74LVC1G98
Document number: DS35128 Rev 5 - 2
1 of 15
www.diodes.com
June 2012
© Diodes Incorporated
NEW PROD
UC
T
Description
The 74LVC1G98 is a single 3-input positive configurable multiple
function gate with a standard push-pull output. The output state is
determined by eight patterns of 3-bit input. The user can chose the
logic functions MUX, AND, OR, NAND, NOR, inverter or non-
inverting buffer. All inputs can be connected to ground or V
CC
as
required. The device is designed for operation with a power supply
range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this
device to be used in a mixed voltage environment. The device is
fully specified for partial power down applications using IOFF. The
IOFF circuitry disables the output preventing damaging current
backflow when the device is powered down. The user is reminded
that the device can simulate several types of logic gates but may
respond differently due to the Schmitt action at the inputs.

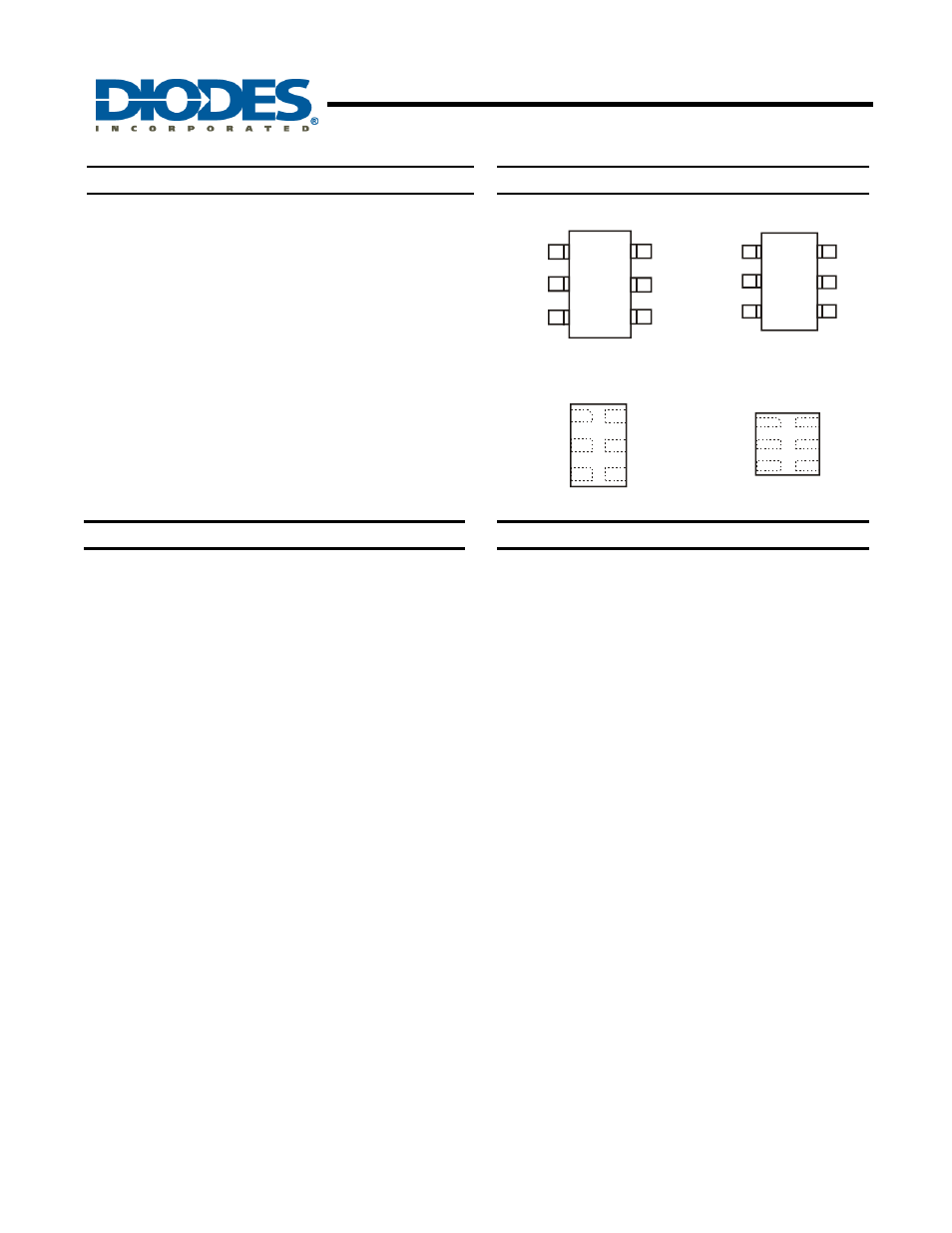

Pin Assignments
SOT26
(Top View)
Y
V
CC
IN2
IN0
GND
IN1
3
2
1
4
5
6
SOT363
(Top View)
Y
V
CC
IN2
IN0
GND
IN1
3
2
1
4
5
6
X2-DFN1010-6
(Top View)
Y
V
CC
IN2
IN0
GND
IN1
2
1
3
5
6
4
X2-DFN1410-6
(Top View)
Y
V
CC
IN2
IN0
GND
IN1
2
1
3
5
6
4
Features
• Wide Supply Voltage Range from 1.65V to 5.5V
•
± 24mA Output Drive at 3.3V
•
CMOS low power consumption
• IOFF Supports Partial-Power-Down Mode Operation
•
Inputs accept up to 5.5V
• ESD Protection Exceeds JESD 22
ƒ 200-V Machine Model (A115-A)
ƒ 2000-V Human Body Model (A114-A)
• Latch-Up Exceeds 100mA per JESD 78, Class II
•
Range of Package Options
•
SOT26, SOT363, DFN1410, and DFN1010: Available in
“Green” Molding Compound (no Br, Sb)
ƒ Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
ƒ Halogen and Antimony Free. “Green” Device (Note 3)
Applications
• Voltage Level Shifting
•
General Purpose Logic
•
Power Down Signal Isolation
• Wide array of products such as:
ƒ PCs, networking, notebooks, netbooks, PDAs
ƒ Computer peripherals, hard drives, CD/DVD ROM
ƒ TV, DVD, DVR, set top box
ƒ Cell Phones, Personal Navigation / GPS
ƒ MP3 players ,Cameras, Video Recorders
