74LVC1G58

CONFIGURABLE MULTIPLE-FUNCTION GATE

74LVC1G58

Document number DS35126 Rev. 4 - 2

1 of 15

www.diodes.com

June 2012

© Diodes Incorporated

NEW PROD

UC

T

Description

The 74LVC1G58 is a single 3-input positive configurable multiple

function gate with a standard push-pull output. The output state is

determined by eight patterns of 3-bit input. The user can chose the

logic functions AND, OR, NAND, NOR, XOR, inverter or non-inverting

buffer. All inputs can be connected to ground or V

CC

as required.

The device is designed for operation with a power supply range of

1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this device to

be used in a mixed voltage environment. The device is fully specified

for partial power down applications using IOFF. The IOFF circuitry

disables the output preventing damaging current backflow when the

device is powered down. The user is reminded that the device can

simulate several types of logic gates, but may respond differently due

to the Schmitt action at the inputs.

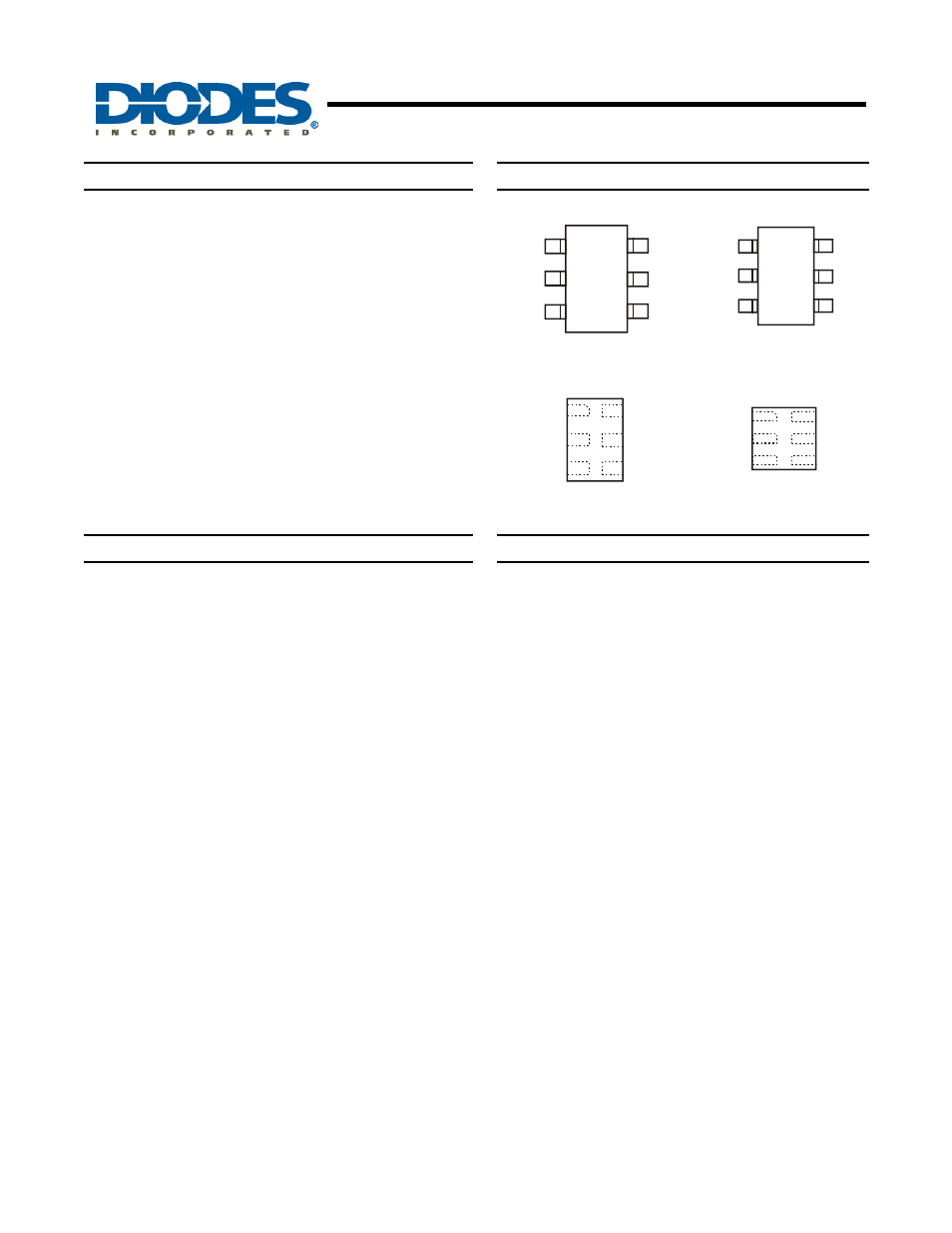

Pin Assignments

SOT26

(Top View)

Y

V

CC

IN2

IN0

GND

IN1

3

2

1

4

5

6

SOT363

(Top View)

Y

V

CC

IN2

IN0

GND

IN1

3

2

1

4

5

6

X2-DFN1010-6

(Top View)

Y

V

CC

IN2

IN0

GND

IN1

2

1

3

5

6

4

X2-DFN1410-6

(Top View)

Y

V

CC

IN2

IN0

GND

IN1

2

1

3

5

6

4


Features

Wide Supply Voltage Range from 1.65V to 5.5V

± 24mA Output Drive at 3.3V

CMOS low power consumption

IOFF Supports Partial-Power-Down Mode Operation

Inputs accept up to 5.5V

ESD Protection Exceeds JESD 22

ƒ

200-V Machine Model (A115-A)

ƒ

2000-V Human Body Model (A114-A)

Latch-Up Exceeds 100mA per JESD 78, Class II

Range of Package Options

SOT26, SOT363, DF1410, and DFN1010: Available in “Green”

Molding Compound (no Br, Sb)

Lead Free Finish/ RoHS Compliant (Note 1)

ƒ

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

ƒ

Halogen and Antimony Free. “Green” Device (Note 3)

Applications

Voltage Level Shifting

General Purpose Logic

Power Down Signal Isolation

Wide array of products such as:

ƒ

PCs, networking, notebooks, netbooks, PDAs

ƒ

Computer peripherals, hard drives, CD/DVD ROM

ƒ

TV, DVD, DVR, set top box

ƒ

Cell Phones, Personal Navigation / GPS

ƒ

MP3 players ,Cameras, Video Recorders

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)

and <1000ppm antimony compounds.
