74LVC1G11

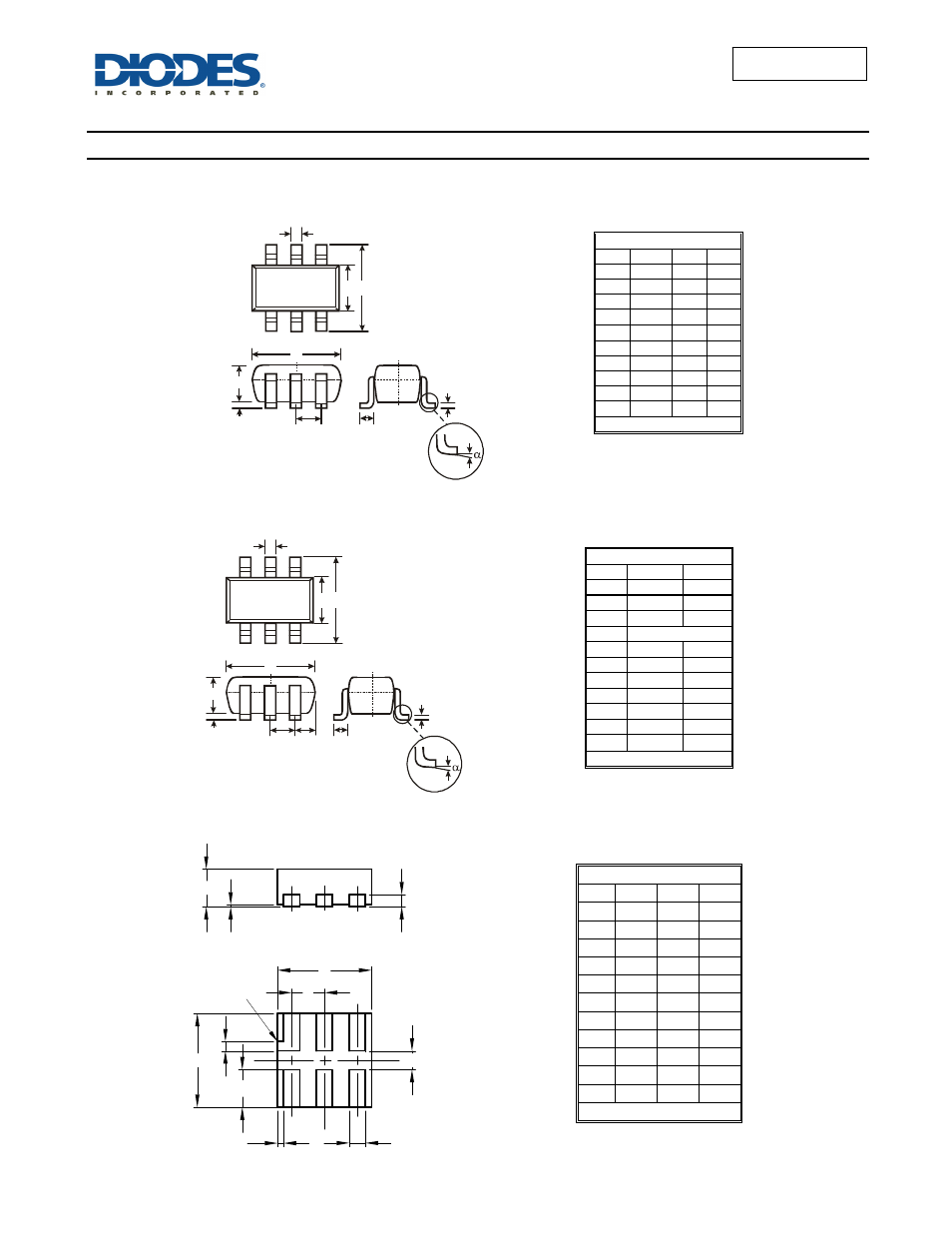

Package Outline Dimensions
(All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
(1) Package Type: SOT26
(2) Package Type: SOT363
(3) Package Type: DFN1010
SOT26
Dim Min Max Typ
A 0.35 0.50 0.38
B 1.50 1.70 1.60
C 2.70 3.00 2.80
D   0.95
H 2.90 3.10 3.00
J 0.013 0.10 0.05
K 1.00 1.30 1.10
L 0.35 0.55 0.40
M 0.10 0.20 0.15
 0° 8° 
All Dimensions in mm
SOT363
Dim Min Max
A 0.10 0.30
B 1.15 1.35
C 2.00 2.20
D 0.65 Typ
F 0.40 0.45
H 1.80 2.20
J 0 0.10
K 0.90 1.00
L 0.25 0.40
M 0.10 0.22
 0° 8°
All Dimensions in mm
X2-DFN1010-6
Dim Min Max Typ
A –– 0.40 0.39
A1 0.00 0.05 0.02
A3 –– –– 0.13
b 0.14 0.20 0.17
b1 0.05 0.15 0.10
D 0.95 1.05 1.00
E 0.95 1.05 1.00
e –– –– 0.35
L 0.35 0.45 0.40
K 0.15 –– ––
Z –– –– 0.065
All Dimensions in mm
A A1
A3
D
E
Z(4x) b(6x)
e
L(6x)
K
(Pin #1 ID)
b1
A
M
J
L D
B C
H
K
A
M
J
L D
B C
H
K
F
