Diodes 74AHC1G126 User Manual
Single buffer gate with 3-state output, New prod uc t description, Pin assignments
74AHC1G126
SINGLE BUFFER GATE WITH 3-STATE OUTPUT
74AHC1G126
Document number: DS35177 Rev. 1 - 2
1 of 9
March 2011
© Diodes Incorporated
NEW PROD
UC
T
Description
The 74AHC1G126 is a single non-inverting buffer/bus driver
with a 3-state output. The output enters a high impedance
state when a LOW-level is applied to the output enable (OE)
pin. The device is designed for operation with a power supply
range of 2.0V to 5.5V.

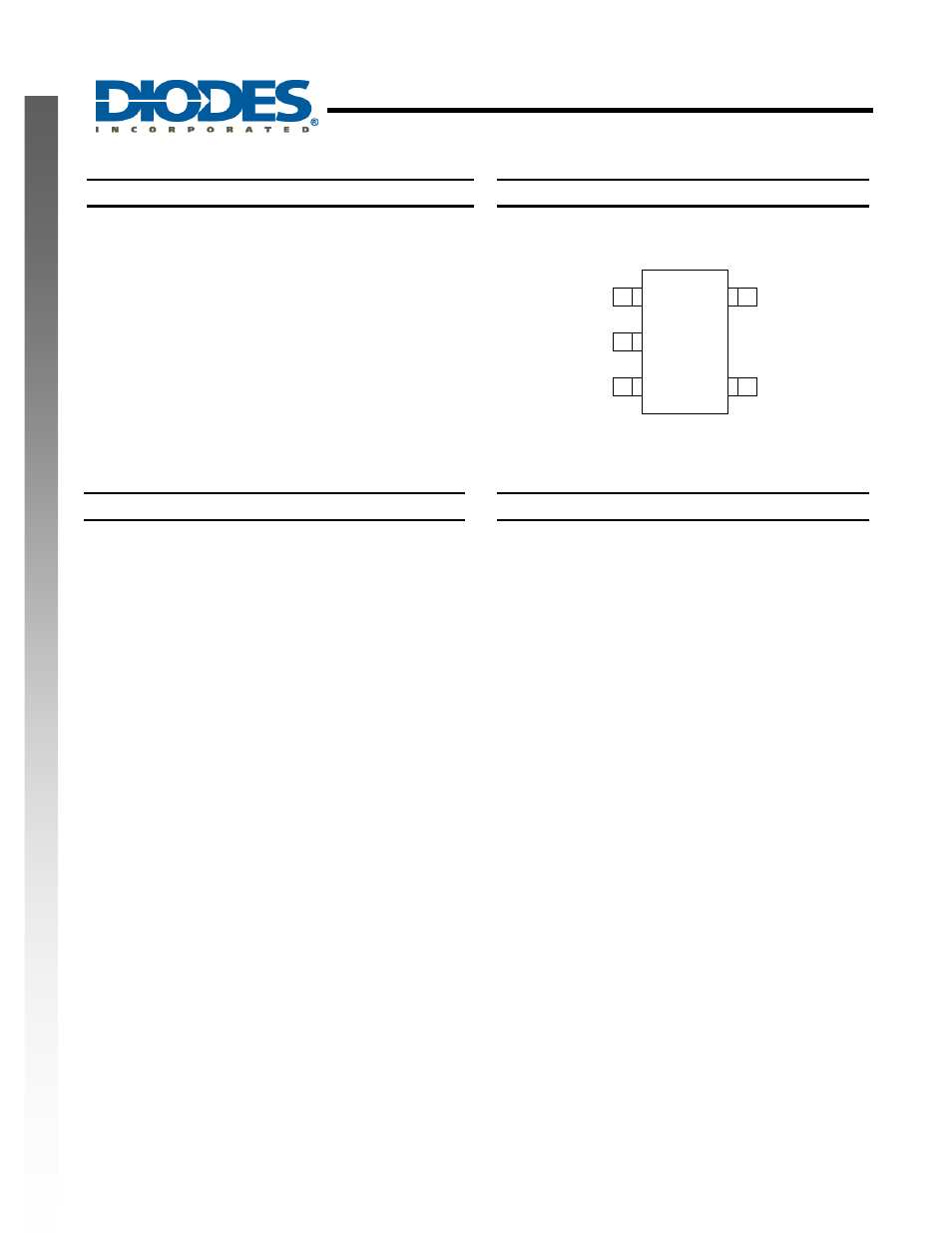

Pin Assignments
SOT25 / SOT353
GND
Y
Vcc
(Top View)
5
4
3
2
1
A
OE
Features
•
Supply Voltage Range from 2.0V to 5.5V
•
± 8 mA Output Drive at 5.0V
•
CMOS low power consumption
•
Schmitt Trigger Action at All Inputs Make the Circuit
Tolerant for Slower Input Rise and Fall Time
•
ESD Protection per JESD 22
o
Exceeds 200-V Machine Model (A115-A)
o
Exceeds 2000-V Human Body Model (A114-A)
o
Exceeds 1000-V Charged Device Model (C101C)
•
Latch-Up Exceeds 100mA per JESD 78, Class II
•
SOT25 and SOT353: Assembled with “Green” Molding
Compound (no Br, Sb)
•
Lead Free Finish / RoHS Compliant (Note 1)
Applications
•
General Purpose Logic
•
Wide array of products such as:
o
PCs, networking, notebooks, netbooks, PDAs
o
Computer peripherals, hard drives, CD/DVD ROM
o
TV, DVD, DVR, set top box
o
Personal Navigation / GPS
o
MP3 players ,Cameras, Video Recorders
Notes: 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at
