74AHC1G09

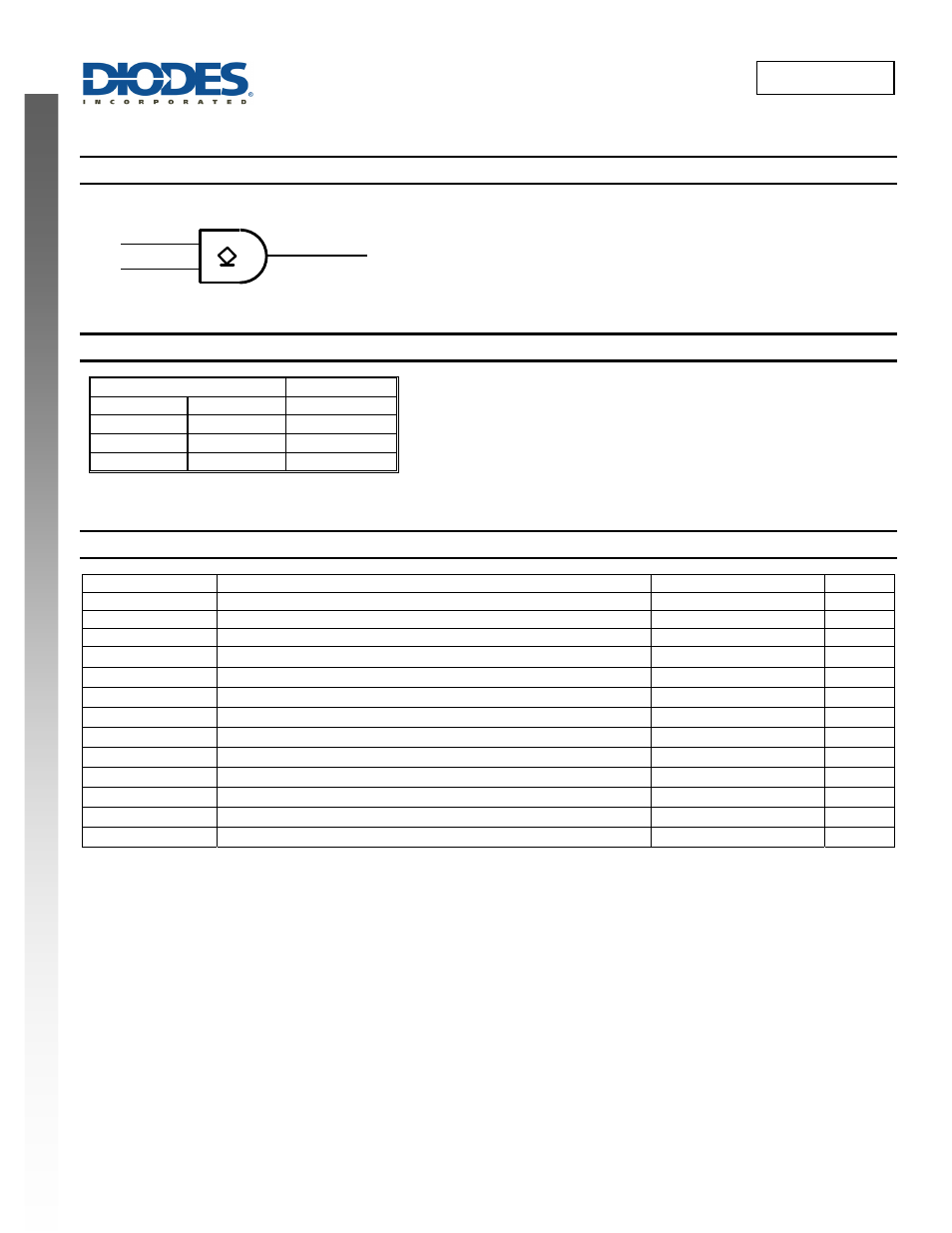

Logic Diagram
1
A
2
4
Y
B
Functional Table
Inputs Output
A B Y
H H Z
L X L
X L L
Absolute Maximum Ratings
(Note 4) (@T
A
= +25°C, unless otherwise specified.)
Symbol
Parameter
Rating
Unit
ESD HBM
Human Body Model ESD Protection
2
KV
ESD CDM
Charged Device Model ESD Protection
1
KV
ESD MM
Machine Model ESD Protection
200
V
V
CC
Supply Voltage Range
-0.5 to 6.5
V
V
I
Input Voltage Range
-0.5 to 6.5
V
V
O
Voltage applied to output in high or low state
-0.5 to V
CC
+0.5
V
I
IK
Input Clamp Current V
I
< 0
-20 mA
I
OK
Output Clamp Current (V
O
< 0 or V
O
> V
CC
)
±20 mA
I
O
Continuous output current (V
O
= 0 to V
CC
)
±25 mA
I
CC
Continuous current through V
CC
50
mA
I
GND
Continuous current through GND
-50
mA
T
J
Operating Junction Temperature
-40 to +150
°C
T
STG
Storage Temperature
-65 to +150
°C
Note:
4. Stresses beyond the absolute maximum may result in immediate failure or reduced reliability. These are stress values and device operation should be
within recommend values.
