AS78LXX
Document number: DSxxxxx Rev.
3 - 1
1 of 17
www.diodes.com
August 2013
© Diodes Incorporated
AS78LXX
DA
TA S
H
EE
T
A Product Line of
Diodes Incorporated
100mA POSITIVE VOLTAGE REGULATOR
Description
The AS78LXX series are three terminal positive regulators designed
for a wide variety of applications including local, on-card regulation.
This series of regulators are complete with internal current limiting,
thermal shutdown protection, and safe-area compensation which
make them virtually immune from output overload. If adequate heat
sinking are provided, these regulators can deliver output currents up
to 100mA.
The AS78LXX series are available in TO-92 (bulk or ammo packing),
SOT-89 and SOIC-8 packages.
Features
Output Current up to 100mA
Fixed Output Voltages of 5V, 12V and 15V
Output Voltage Accuracy of ±5% over the Full Temperature
Range
Internal Short Circuit Current Limiting
Internal Thermal Overload Protection
No External Components
Output
Transistor
Safe-area
Protection
Applications
Consumer
Electronics
Microprocessor
Power
Supply
Mother
Board

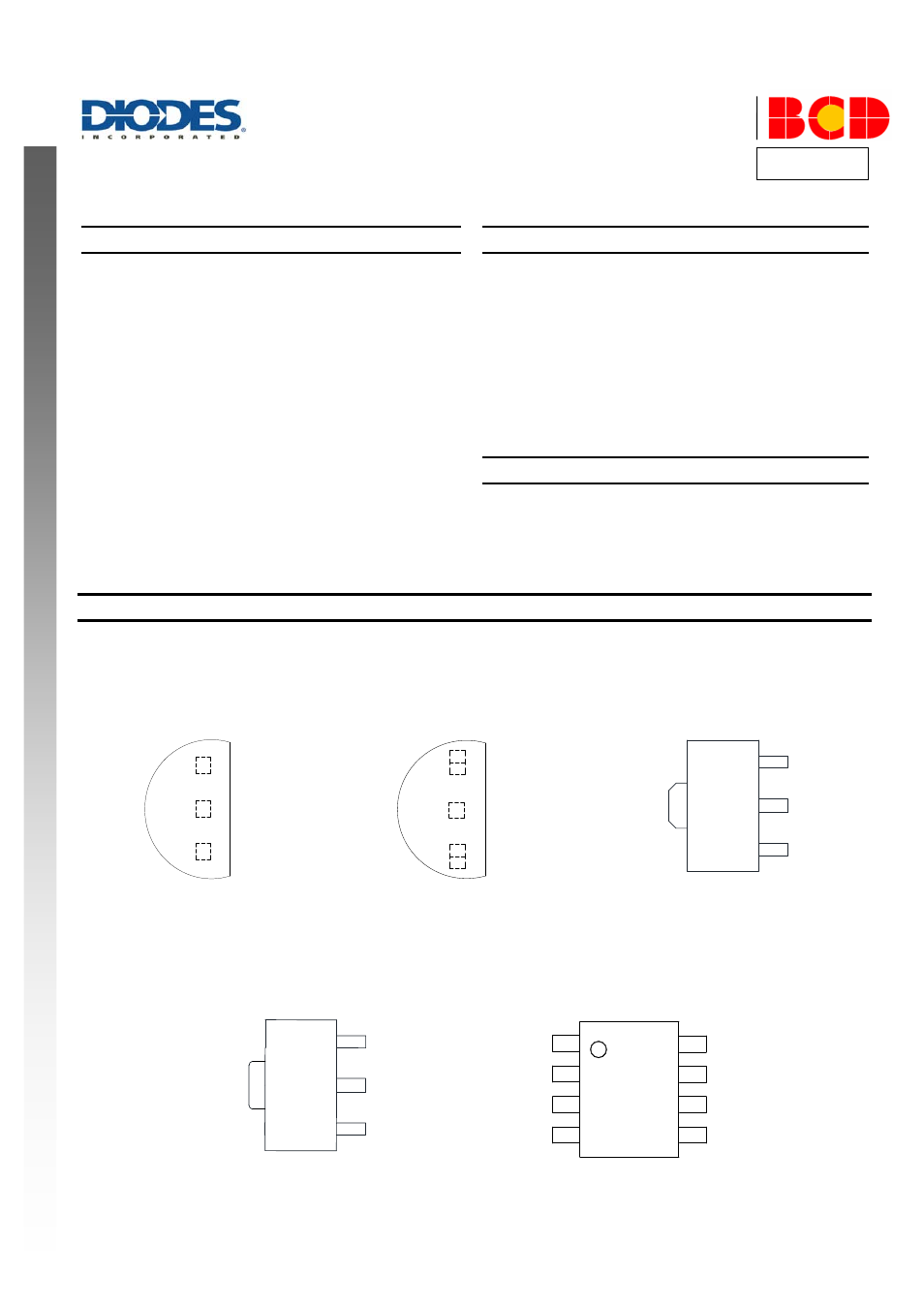

Pin Assignments
Z Package Z Package R Package
(TO-92(Bulk Packing)) (TO-92(Ammo Packing))
(SOT-89 Option 1)
R Package M Package
(SOT-89 Option 2) (SOIC-8)
1
2
3
OUTPUT
GND
INPUT
OUTPUT
GND
INPUT
1
2
3
INPUT
GND
1
2
3
4
8
7
6
5
GND
NC
NC
GND
GND
OUTPUT
1
2
3
INPUT
GND
OUTPUT
GND
INPUT
1
2
3
GND
OUTPUT
GND
