LOW POWER LOW OFFSET VOLTAGE QUAD COMPARATORS
Description
The AS339/339A consist of four independent precision voltage
comparators with a typical offset voltage of 2.0mV and high gain.
They are specifically designed to operate from a single power supply
over wide range of voltages. Operation from split power supply is also
possible and the low power supply current drain is independent of the
magnitude of the power supply voltage.
The AS339/339A series are compatible with industry standard 339.
The AS339A has more stringent input offset voltage than the AS339.
The AS339 is available in DIP-14, SOIC-14 and TSSOP-14
packages, and the AS339A is available in SOIC-14 package.
Features
Wide Supply Voltage Range
Single Supply: 2.0V to 36V
Dual Supplies: ±1.0V to ±18V
Low Supply Current Drain: 0.9mA
Low Input Bias Current: 25nA (Typical)
Low Input Offset Current: ±5.0nA (Typical)
Low Input Offset Voltage: 2.0mV (Typical)
Input Common Mode Voltage Range Includes Ground
Differential Input Voltage Range Equals to the Power Supply
Voltage
Low Output Saturation Voltage: 200mV at 4mA
Open Collector Output
Applications
Battery Charger
Cordless Telephone
Switching Power Supply
DC-DC Module
PC Motherboard
Communication Equipment

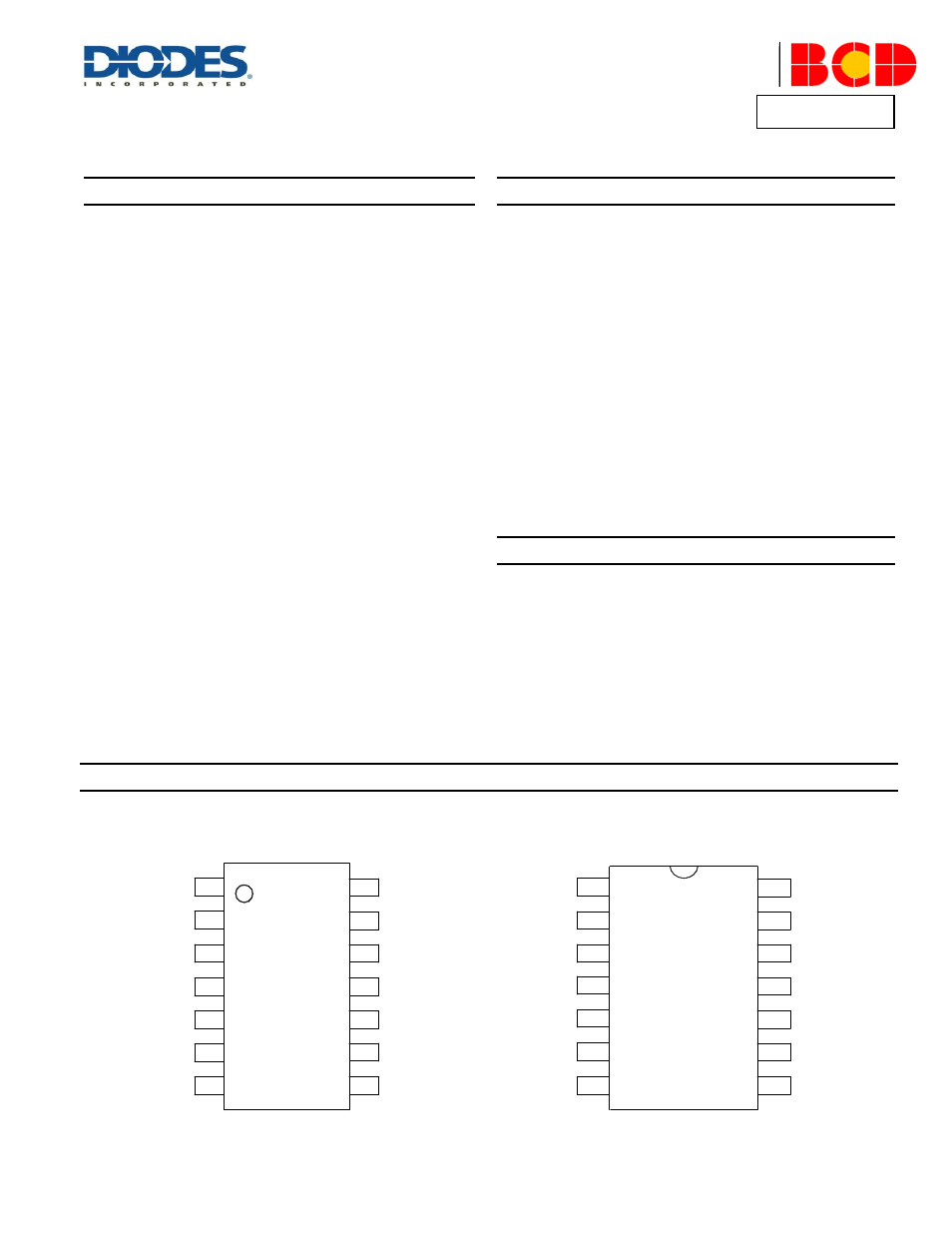

Pin Assignments
(Top View) (Top View)
(SOIC-14/ M Package / TSSOP-14/ G Package) (DIP-14/ P Package)
INPUT 1-
1
2
3
4
5
6
7
14
13
12
11
10
9
8
INPUT 1+
INPUT 2-
INPUT 2+
OUTPUT 1
V
CC
OUTPUT 3
OUTPUT 4
INPUT 4+
GND
INPUT 4-
INPUT 3+
INPUT 3-
OUTPUT 2
1
2
3
4
5
6
7
14
13
12
11
10
9
8
INPUT 1-
INPUT 1+
INPUT 2-
INPUT 2+
OUTPUT 1
V
CC
OUTPUT 2
OUTPUT 3
OUTPUT 4
INPUT 4+
GND
INPUT 4-
INPUT 3+
INPUT 3-
