Data Sheet
High Sensitivity Micropower Omnipolar Hall-Effect Switch AH9248
Jul. 2011 Rev. 1. 6 BCD Semiconductor Manufacturing Limited
7
Magnetic Characteristics (Continued)
O
u
tp
ut Vol
tag
e

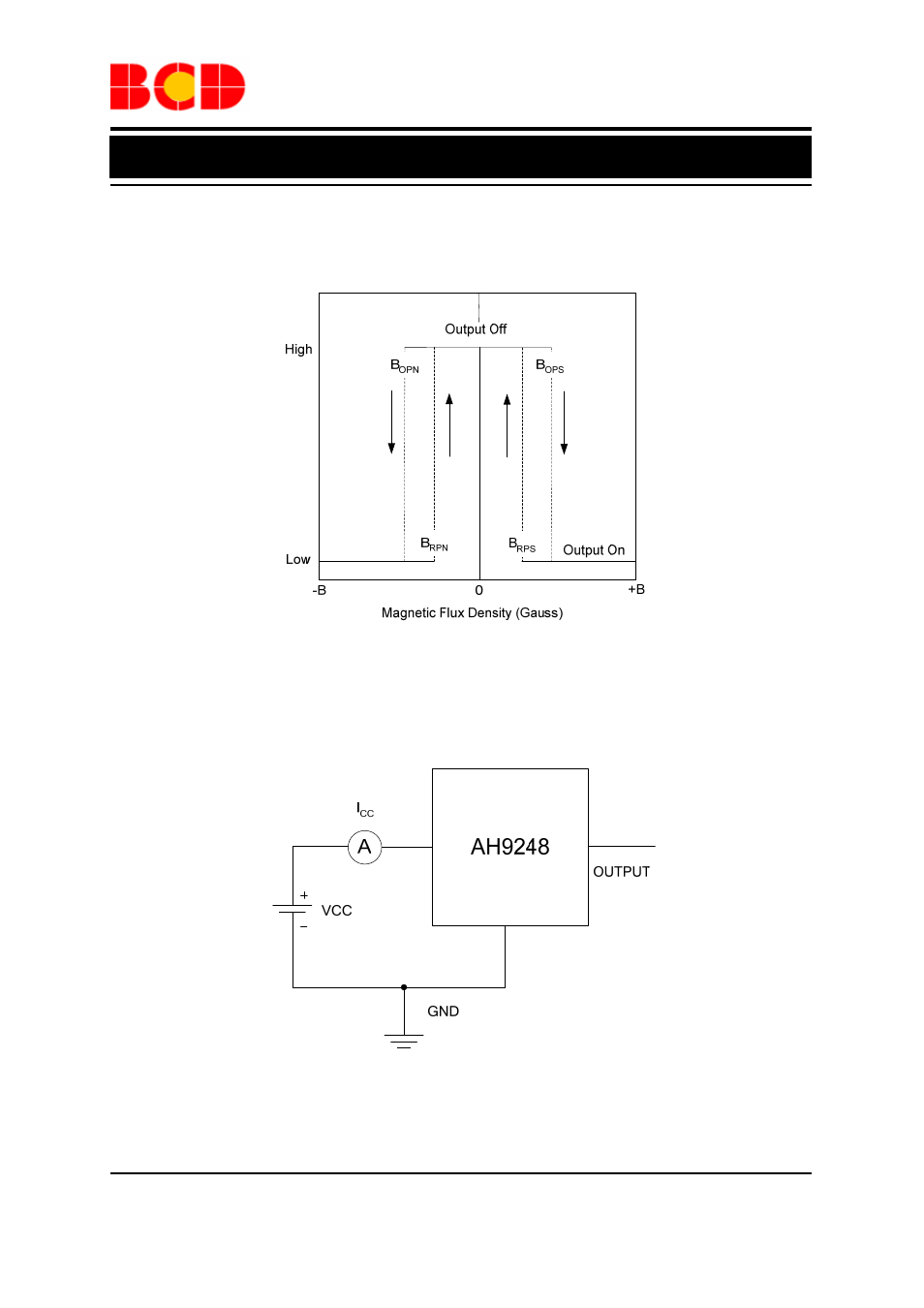

Figure 4. Output Voltage vs. Magnetic Flux Density
Test Conditions
Figure 5. Average Supply Current (Note 5, 6)
Note 5: I
CC
represents the average supply current. OUTPUT is open during measurement.
Note 6: The device is put under magnetic field with B
RP
.
