AH1884
MICROPOWER, ULTRA-SENSITIVE HALL EFFECT
SWITCH
AH1884
Document number: DS31171 Rev. 6 - 2
5 of 7
www.diodes.com
September 2010
© Diodes Incorporated

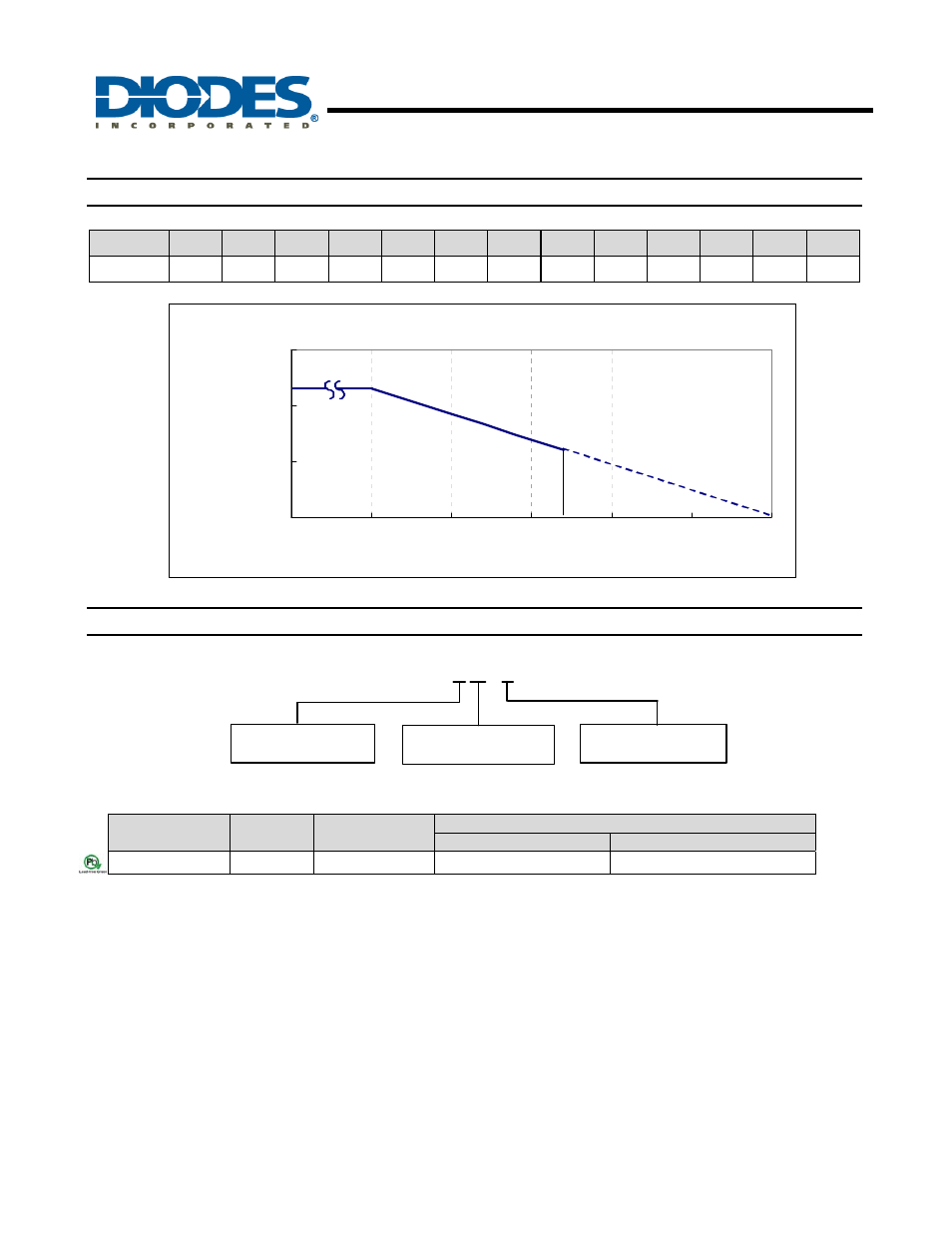

Performance Characteristics
T
A
(
°C) 25 50 60 70 80 85 90 100 110 120 130 140 150
P
D
(mW) 230 184 166 147 129 120 110 92 74 55 37 18 0
P o w e r D is s i p a tio n C u rv e
0
1 0 0
2 0 0
3 0 0
0 2 5 5 0 7 5 1 0 0 1 2 5 1 5 0
T A ( o C )
P D (m W )
8 5 -4 0
Ordering Information
AH 1884 - Z G - 7
Packing Package Green
Z : SOT553 G : Green 7 : Tape & Reel
Device
Package
Code
Packaging
(Note 3 & 4)
7” Tape and Reel
Quantity Part Number Suffix
AH1884-ZG-7 Z SOT553 3000/Tape & Reel -7
Notes: 3. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at
http://www.diodes.com/products/lead_free.html.
4. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at
http://www.diodes.com/datasheets/ap02001.pdf.
