AH1810
Document number: DS35743 Rev. 2 - 2
4 of 7
www.diodes.com
August 2013
© Diodes Incorporated
AH1810
NEW PROD
UC
T

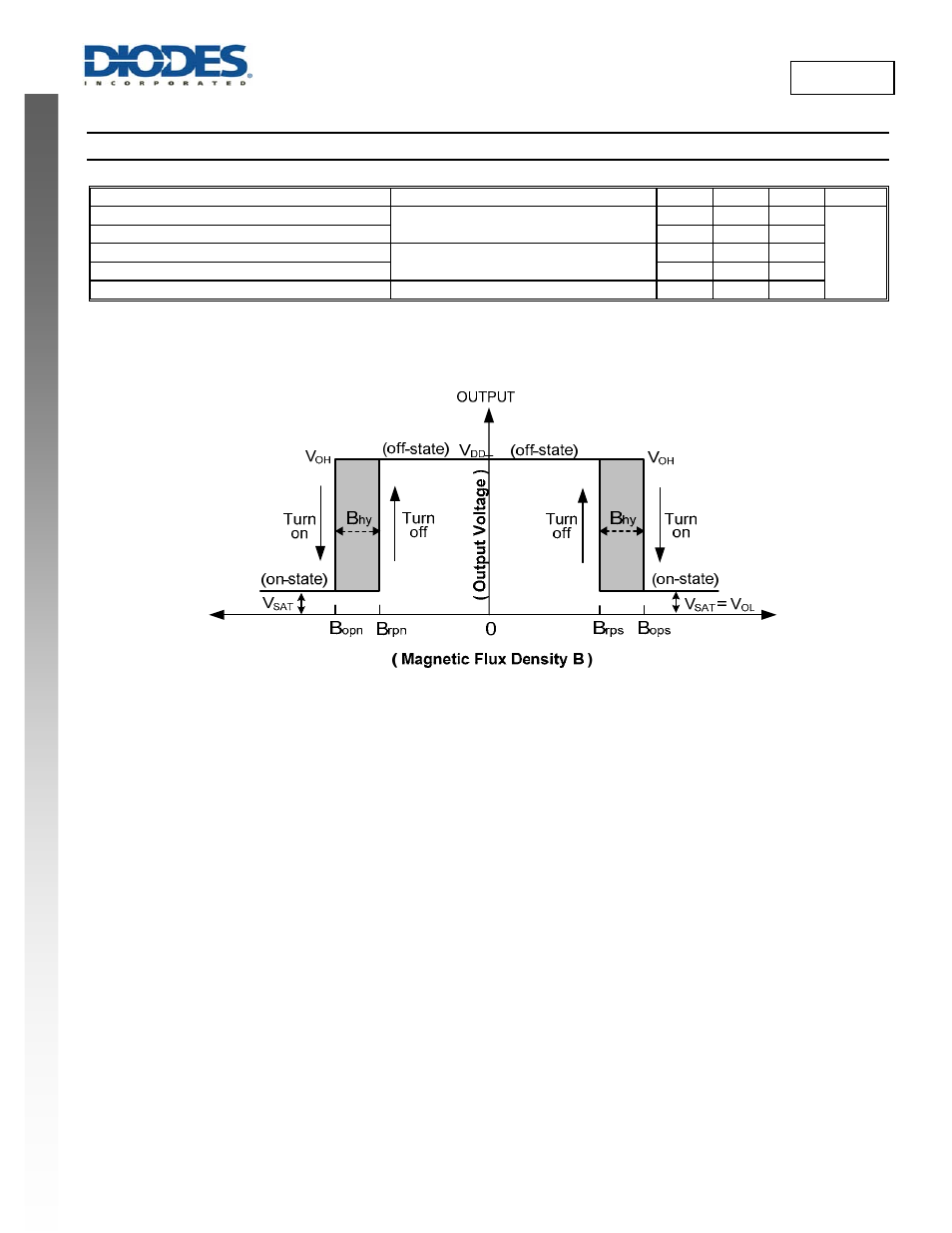

Magnetic Characteristics
(Note 8) (@T
A
= +25°C, V
DD
= 2.3V to 3.6V, unless otherwise specified.)
(1mT=10 Gauss)
Symbol Characteristic Min Typ Max Unit
Bops (south pole to part marking side)
Operation Point
16 30 42
Gauss
Bopn (north pole to part marking side) -42 -30 -16
Brps (south pole to part marking side)
Release Point
11 20 35
Brpn (north pole to part marking side) -35 -20 -11
Bhy (|Bopx|-|Brpx|) Hysteresis (Note 9) 3 10 17
Notes: 8. The magnetic characteristics may vary with supply voltage, operating temperature and after soldering.
9. Maximum and minimum hysteresis is guaranteed by design and characterization.
