ATS137
SINGLE HALL EFFECT SWITCH
ATS137 Rev. 10
1 of 12
FEBRUARY 2010
DS31045
©
Diodes Incorporated
•
3.5V to 20V DC Operation Voltage
• Temperature
Compensation
•
Wide Operating Voltage Range
• Open-Collector
Pre-Driver
•
25mA Maximum Sinking Output Current
• Reverse
Polarity
Protection
•
Lead Free Package: SIP-3L and SC59-3L
(Commonly
known as SOT23 in Asia)
•
SIP-3L and SC59-3L: Available in “Green” Molding
Compound (No Br, Sb)
•
Lead Free Finish / RoHS Compliant (Note 1)
ATS137 is a switched Hall-Effect IC, which is for contactless
switching applications. The device includes an on-chip Hall
voltage generator for magnetic sensing, an amplifier that
amplifies the Hall voltage, a Schmitt trigger to provide switching
hysteresis for noise rejection, and an open-collector output. The
bandgap regulator allows a wide operating voltage range.
ATS137 is rated for operating temperature range from -20
°C to
85
°C and voltage range from 3.5V to 20V.
•
VCD/DVD Loader, CD/DVD ROM
• Cover
Detector
• Speed
Measurement
• Home
Appliances
• Home
Safety

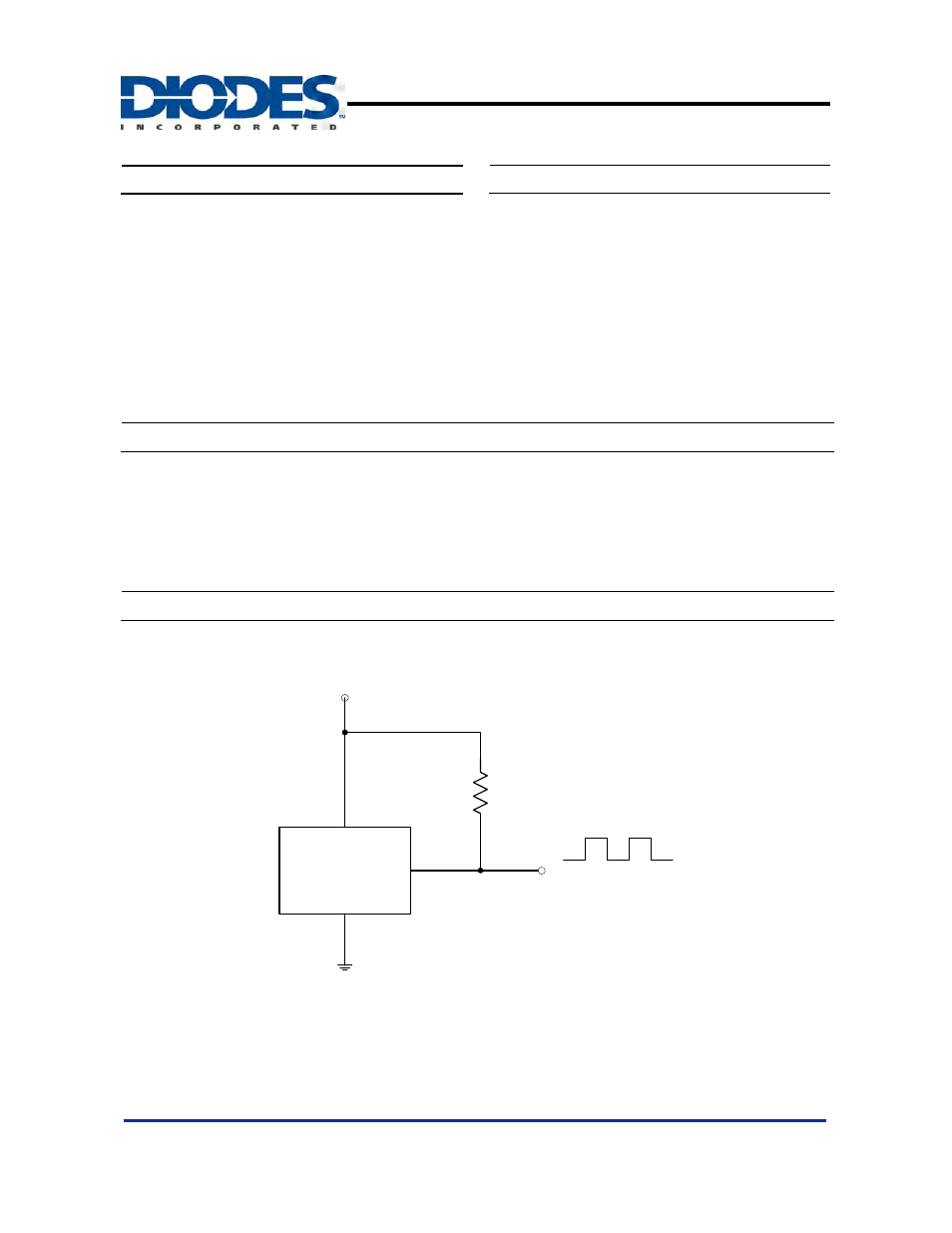

Typical Application Circuit
ATS137
3.5V ~20V
Digital Output
V
cc
DO
GND
L
R
Features
General Description
Applications
