AH3360
Document number: DS35744 Rev. 1 - 2
2 of 11
www.diodes.com
August 2013
© Diodes Incorporated
NEW PROD
UC
T
AH3360
Pin Descriptions
Package: X1-DFN1216-4
Pin Number Pin Name Function
1 OUTPUT Output Pin
2 V
DD
Power Supply Input
3 NC No Connection (Note 5)
4 GND Ground Pin
Package: X2-DFN2015-6
Pin Number Pin Name Function
1 V DD
Power Supply Input
2 NC No Connection (Note 5)
3 NC No Connection (Note 5)
4 GND Ground Pin
5 NC No Connection (Note 5)
6 OUTPUT Output Pin
Package: SOT553
Pin Number Pin Name Function
1 V
DD
Power Supply Input
2 NC No Connection (Note 5)
3 NC No Connection (Note 5)
4 GND Ground Pin
5 OUTPUT Output Pin
Note: 5. NC is “No Connection” pin and is not connected internally. This pin can be left open or tied to ground.

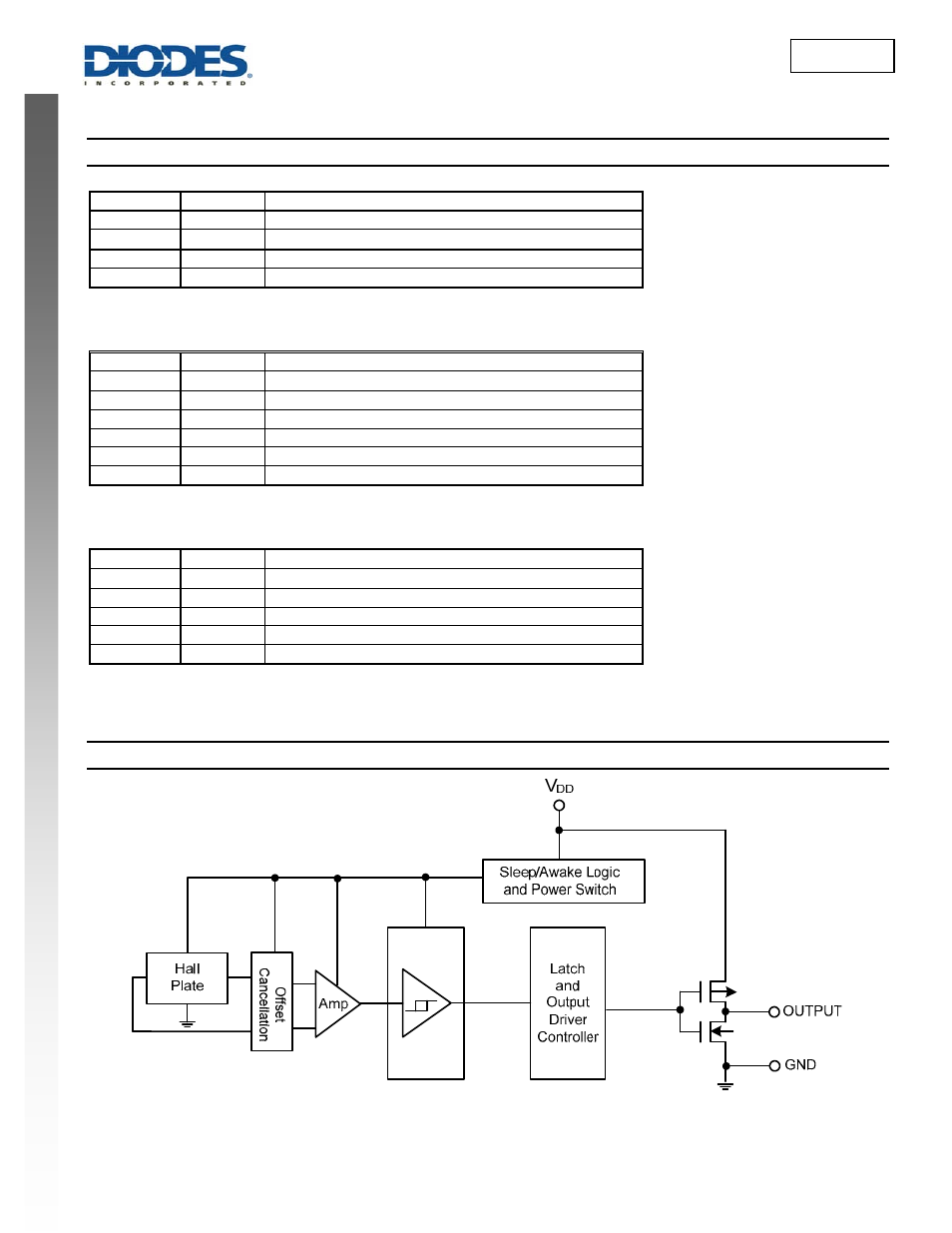

Functional Block Diagram
