BIPOLAR HALL-EFFECT POSITION SENSORS AH41
Nov 2010 Rev. 1. 2 BCD Semiconductor Manufacturing Limited
3

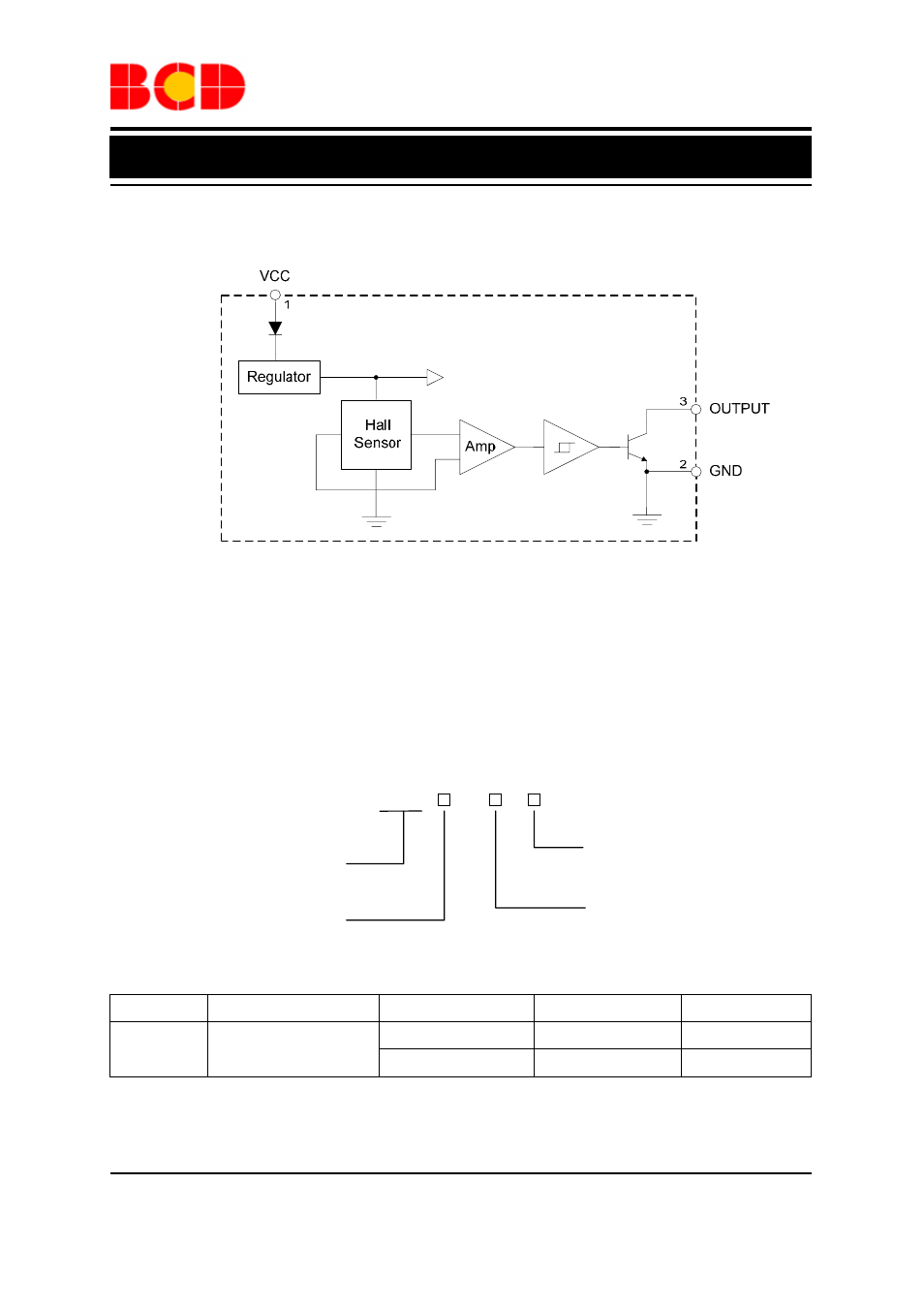

Functional Block Diagram
Figure 3. Functional Block Diagram of AH41
Ordering Information
AH41 -
Circuit Type
Package
Z3: TO-92S-3
Package Temperature Range Part Number Marking ID Packing Type
AH41Z3-AG1 AH41 Bulk
TO-92S-3 -40 to 150
°C
AH41Z3-BG1 AH41 Bulk
BCD Semiconductor's Pb-free products, as designated with "G1" suffix in the part number, are RoHS compliant
and green.
Magnetic Characteristics
A: 30 to 75 Gauss
B: 5 to 105 Gauss
G1: Green
