AH373

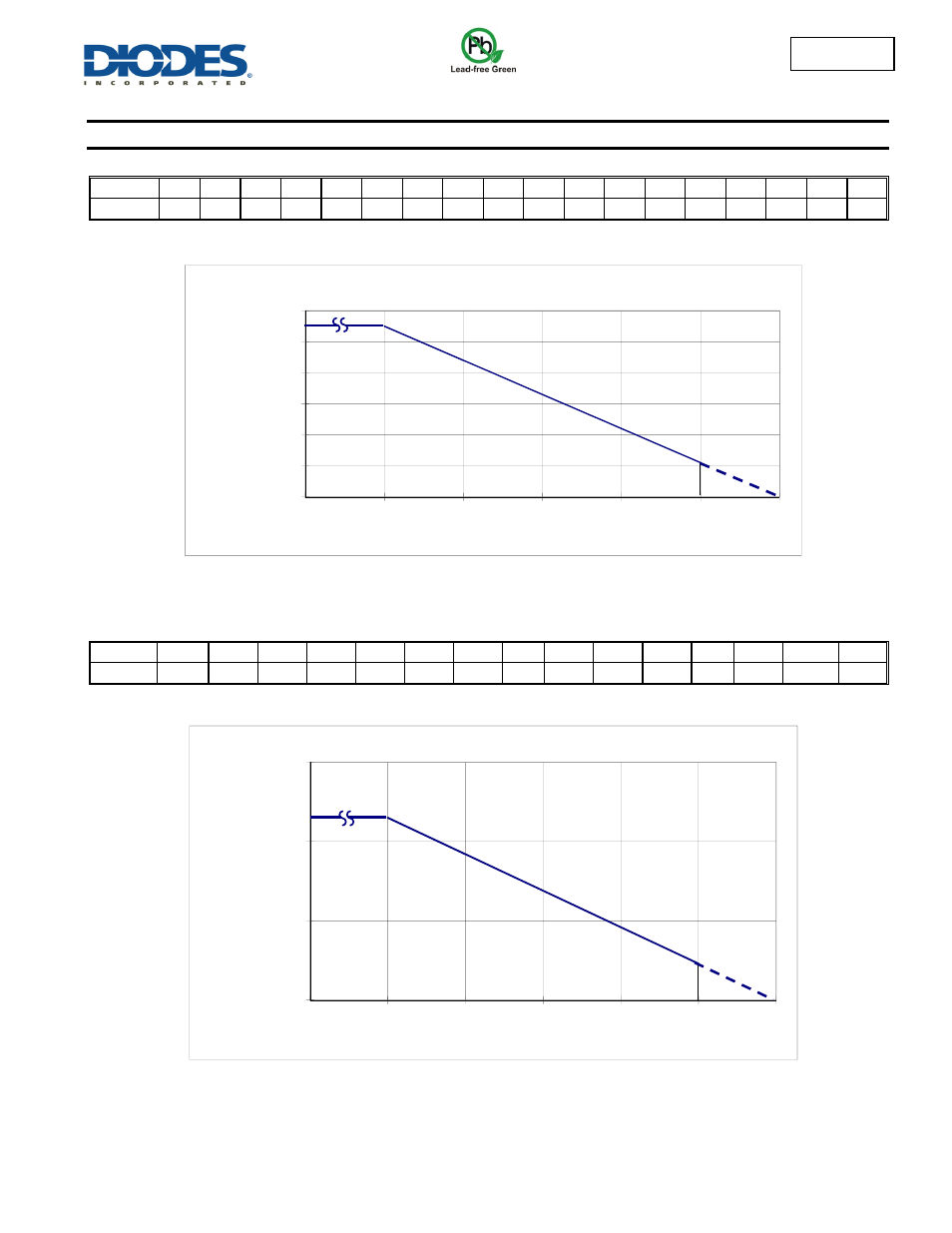

Thermal Performance Characteristics
(1) Package Type: SIP-3L
T
A
(°C) 25 50 60 70 80 85 90 95 100 105 110 115 120 125 130 135 140 150
P
D
(mW) 550 440 396 352 308 286 264 242 220 198 176 154 132 110 88 66 44 0
(2) Package Type: SC59 and SOT23
T
A
(°C) 25 50 60 70 80 85 90 100 105 110 120 125 130 140 150
P
D
(mW) 230 184 166 147 129 120 110 92 83 74 55 46 37 18 0
0
100
200
300
400
500
600
0 25 50 75 100 125 150
P
D
(mW)
T
A
(°C)
Power Dissipation Curve
-40
0
100
200
300
0 25 50 75 100 125 150
P
D
(mW)
T
A
(°C)
Power Dissipation Curve
-40
