AH373

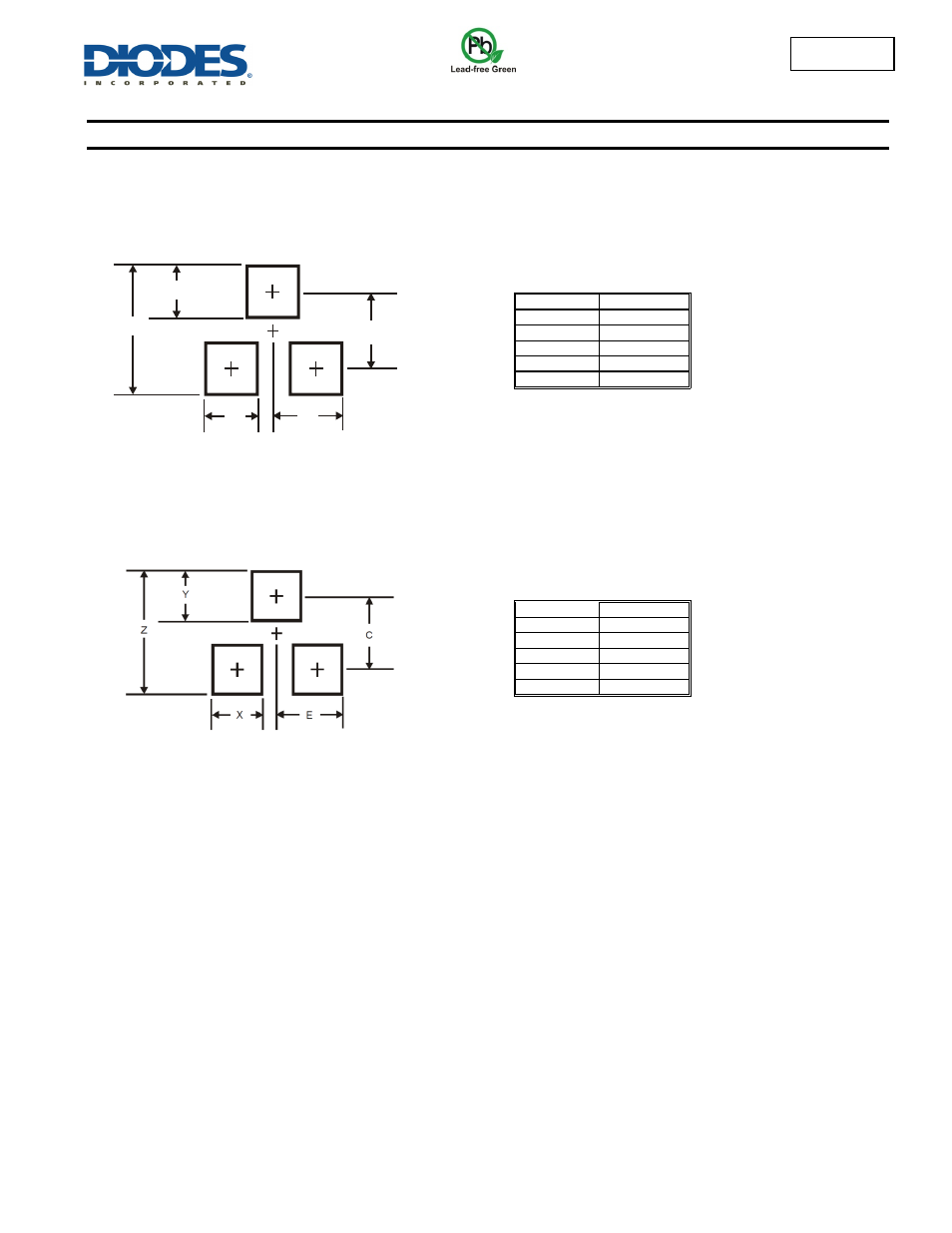

Suggested Pad Layout

Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.

(1) Package Type: SC59

(2) Package Type: SOT23

Dimensions Value (in mm)

Z

3.4

X

0.8

Y

1.0

C

2.4

E

1.35

Dimensions Value (in mm)

Z

2.9

X

0.8

Y

0.9

C

2.0

E

1.35

X

E

Y

C

Z
