AH375
SINGLE PHASE HALL EFFECT LATCH
AH375
Document number: DS31172 Rev. 6 - 2
3 of 9
www.diodes.com
July 2010
© Diodes Incorporated
Electrical Characteristics (T
A
= 25
°C, Vdd
= 12V)
Symbol Characteristic Test Conditions Min Typ. Max Unit
V
DS (SAT)
Output Saturation Voltage Iout = 20mA - 300 700 mV
Ioff Output Leakage Current V
DD
= 14V - < 0.1 10 uA
Idd Supply Current Output Open - 2 4 mA
Magnetic Characteristics (T
A
= 25
°C, Vdd
= 2.5V to 20V, Note 3)
(1mT = 10 Gauss)
Symbol Parameter Min Typ. Max Unit
Bops(south pole to brand side) Operation Point 5 30 60 Gauss
Brps(south pole to brand side) Release Point -60 -30 -5 Gauss
Bhy(|Bopx|-|Brpx|) Hysteresis - 60 - Gauss
Notes: 3. Magnetic characteristics may vary with supply voltage, operating temperature and after soldering.

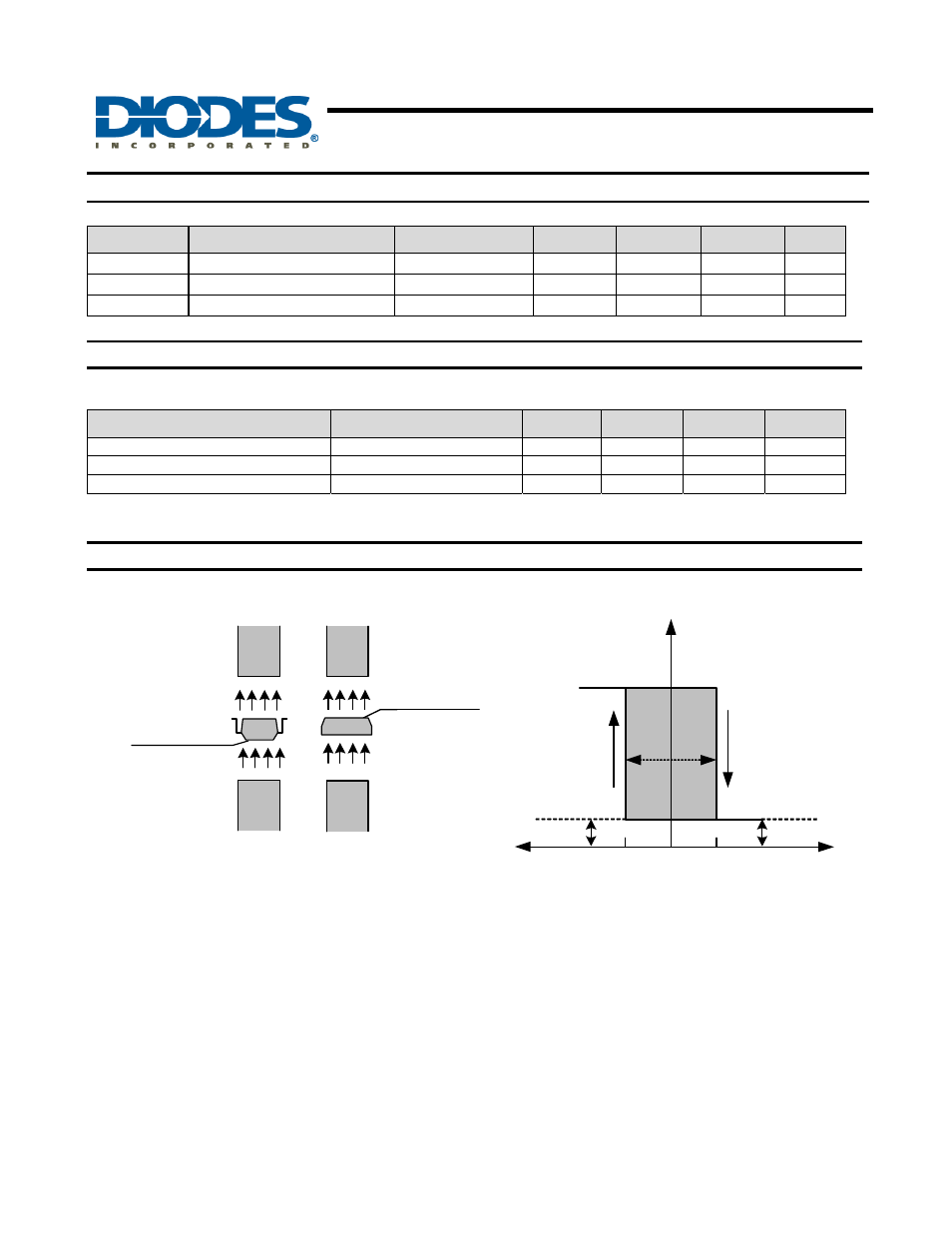

Operating Characteristics
V
dd
(Out
p
u
t
V
ol
ta
ge
)
Brp Bop 0
( Magnetic Flux Density B)
Output
Turn off Turn on
(off-state)
(on-state)
V
SAT
V
SAT
Bhy
Marking side
S
(SIP-3L)
N
Marking side
S
(SC59)
N
