Diodes AH291 - Manual (Page 7)

AH291
LOW VOLTAGE HALL-EFFECT SMART FAN MOTOR
CONTROLLER
AH291
Document number: DS31041 Rev. 8 - 2
7 of 9
www.diodes.com
June 2010
© Diodes Incorporated

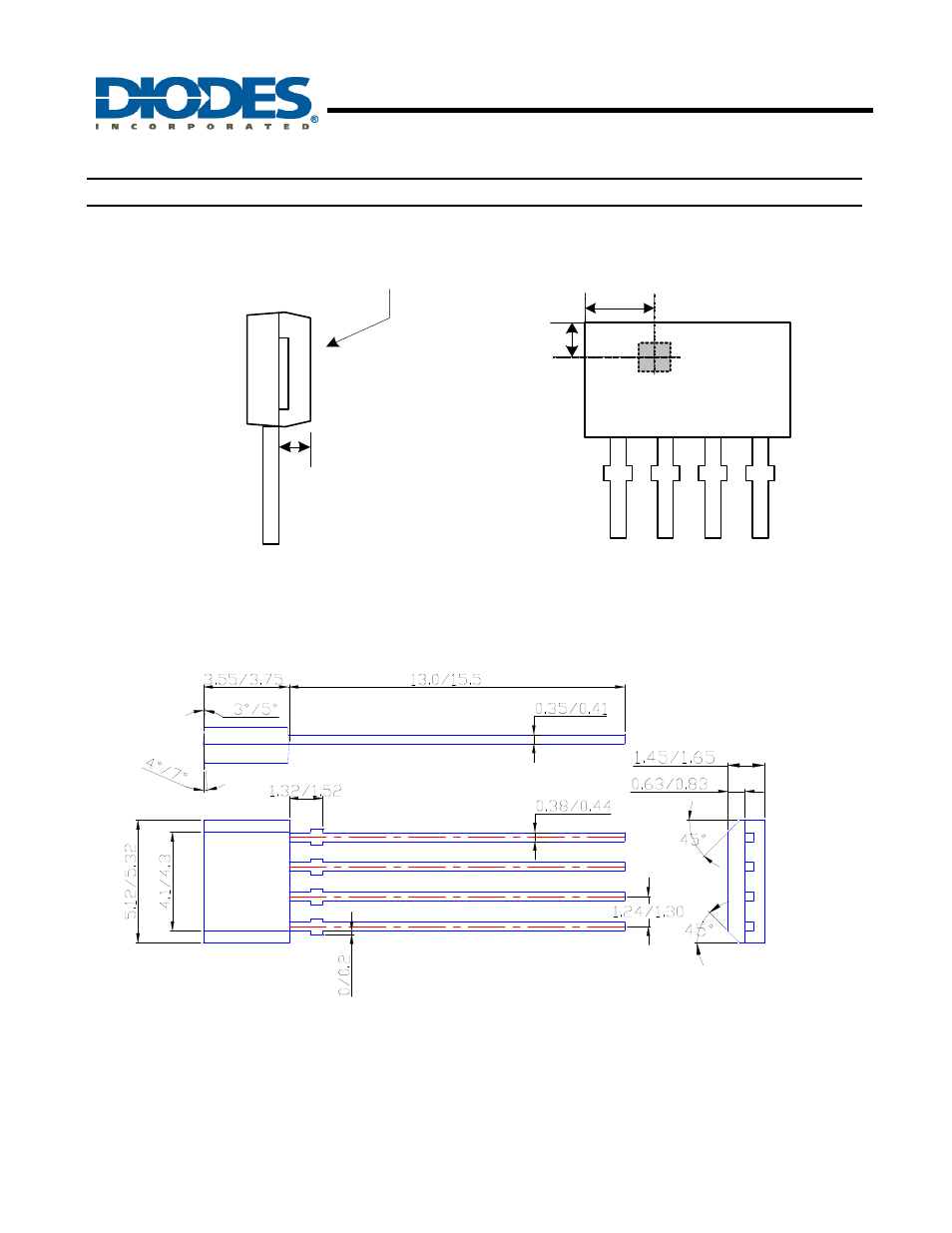

Package Outline Dimensions (All Dimensions in mm)
(1) Package type: SIP-4L
Active Area Depth Sensor Location
Marking side
0.7 mm
1.
1 士
0.1mm
1 2 3 4
1.95
士
0.1mm
Package Dimension
