AH287
HIGH VOLTAGE HALL-EFFECT SMART FAN MOTOR
CONTROLLER
AH287 Rev. 10
2 of 11
APRIL 2010
DS31042
©
Diodes Incorporated

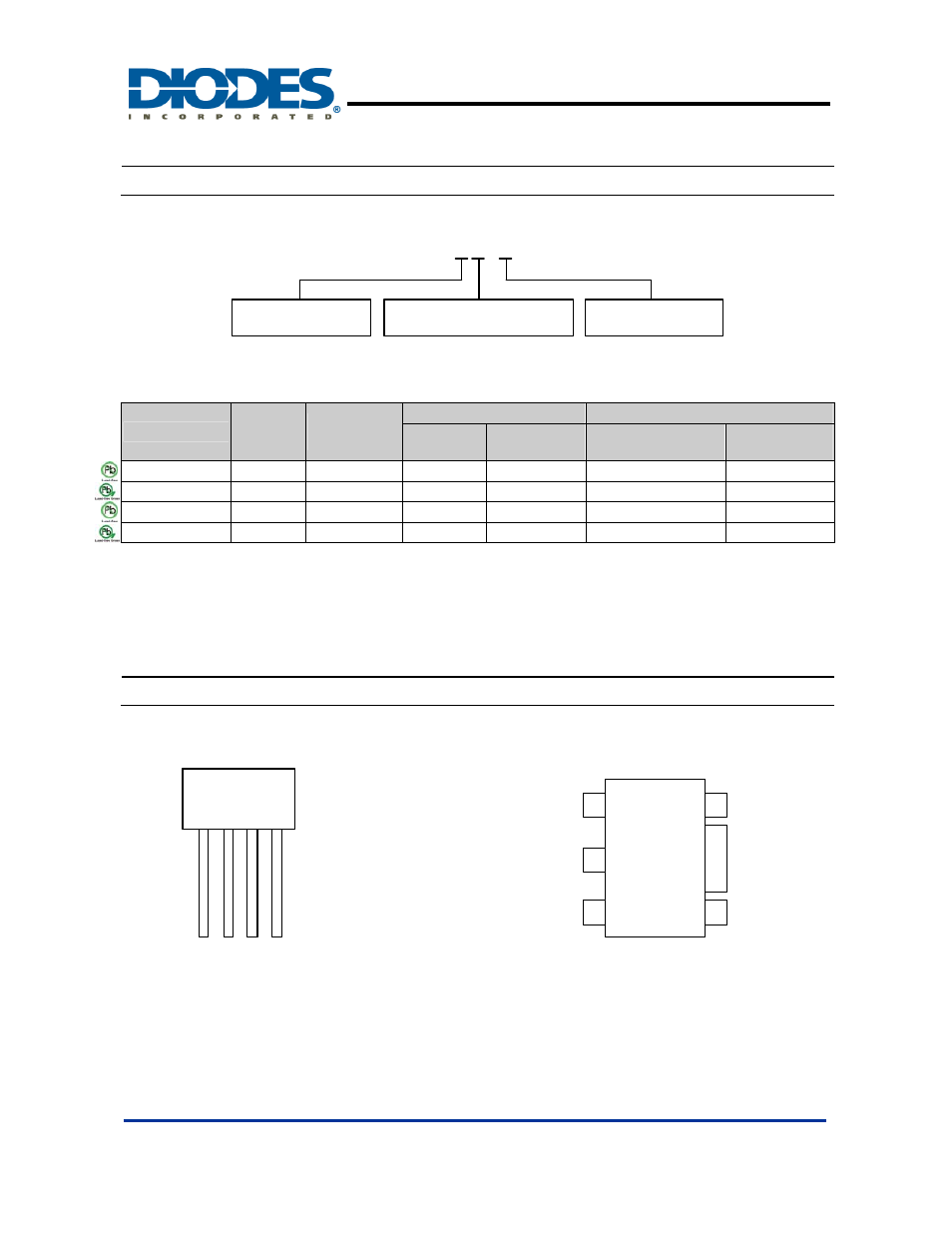

Ordering Information
AH 287 - X X - X
Packing
B : Bulk
P : SIP-4L
Package
Lead Free
L : Lead Free (Note 1)
Y : SOT89-5L
13 : Tape & Reel
G : Green
Device
Package
Code
Packaging
(Note 3)
Bulk
13” Tape and Reel
Quantity
Part Number
Suffix
Quantity
Part Number
Suffix
AH287-PL-B P SIP-4L 1000 -B
NA
NA
AH287-PG-B P SIP-4L 1000 -B
NA
NA
AH287-YL-13 Y SOT89-5L NA
NA 2500/Tape
&
Reel -13
AH287-YG-13 Y SOT89-5L NA
NA 2500/Tape
&
Reel -13
Notes: 1. AH287-YL-13 will be replaced by AH287-YG-13
2. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at
3. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at
4. Reverse taping as shown on Diodes Inc. Surface Mount (SMD) Packaging document AP02007, which can be found on our website
287
1 2
4
3
1 : Vdd
2 : DO
3 : DOB
4 : GND
SIP-4L
( Top View )
1
2
3
74
5
DOB
DO
GND
NC
Vdd
SOT89-5L
287
( Top View )
Pin Assignment
