AP8800

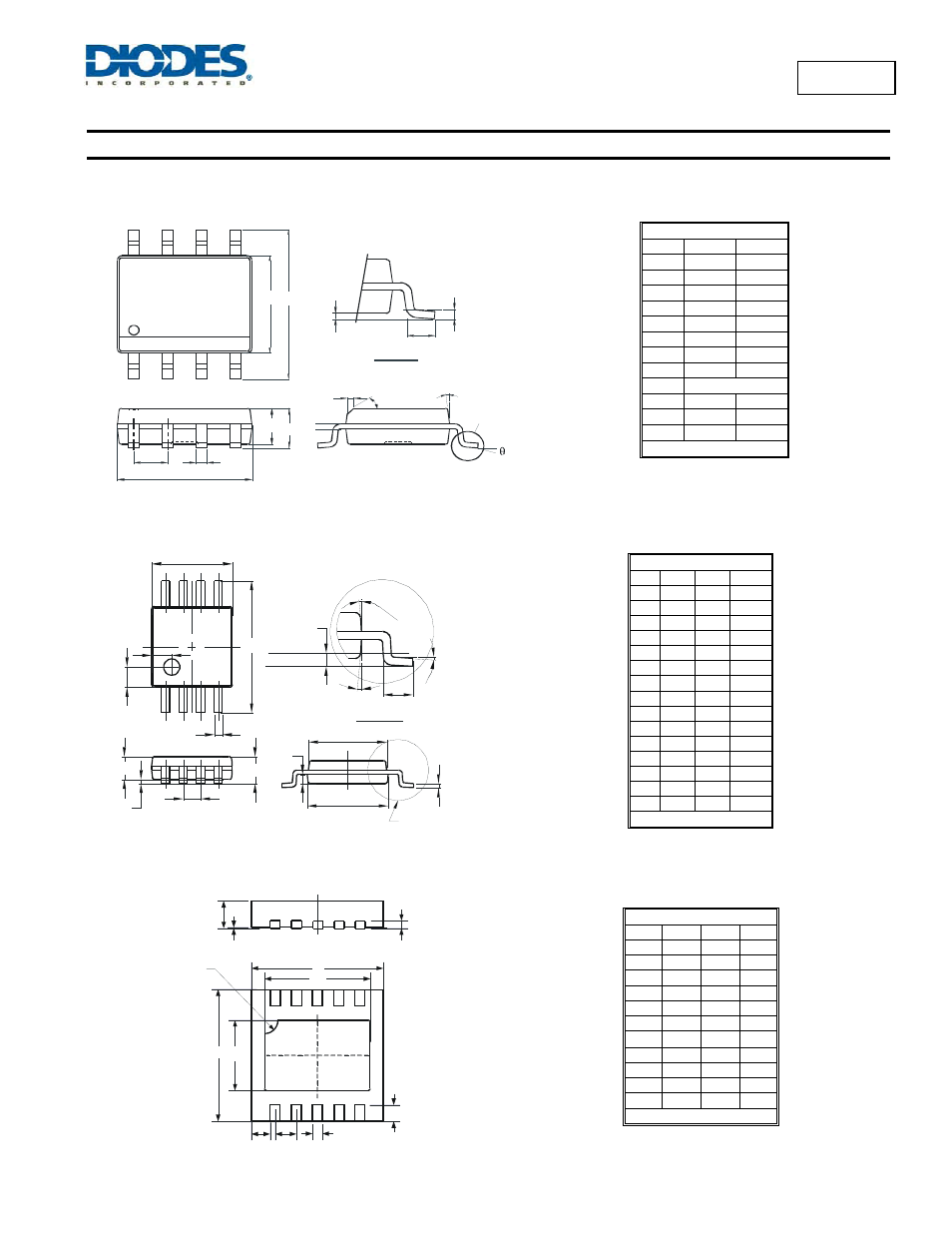

Package Outline Dimensions
(All dimensions in mm.)
rsion.
Package Type: SO-8
Package Type: MSOP-8
Package Type: U-DFN3030-10
SO-8
Dim
Min
Max
A
-
1.75
A1
0.10
0.20
A2
1.30
1.50
A3
0.15
0.25
b
0.3
0.5
D
4.85
4.95
E
5.90
6.10
E1
3.85
3.95
e
1.27 Typ
h
- 0.35
L
0.62 0.82
θ
0
°
8
°
All Dimensions in mm
MSOP-8
Dim Min Max Typ
A
-
1.10 -
A1 0.05 0.15 0.10
A2 0.75 0.95 0.86
A3 0.29 0.49 0.39
b
0.22 0.38 0.30
c
0.08 0.23 0.15
D
2.90 3.10 3.00
E
4.70 5.10 4.90
E1 2.90 3.10 3.00
E3 2.85 3.05 2.95
e
-
- 0.65
L
0.40 0.80 0.60
a
0°
8° 4°
x
-
- 0.750
y
-
- 0.750
All Dimensions in mm
U-DFN3030-10
Dim
Min
Max Typ
A
0.57 0.63 0.60
A1
0 0.05
0.02
A3
⎯
⎯
0.15
b
0.20 0.30 0.25
D
2.90 3.10 3.00
D2
2.30 2.50 2.40
e
⎯
⎯
0.50
E
2.90 3.10 3.00
E2
1.50 1.70 1.60
L
0.25 0.55 0.40
z
⎯
⎯ 0.375
All Dimensions in mm
Gauge Plane
Seating Plane
Detail ‘A’
Detail ‘A’
E
E1
h
L
D
e
b
A2
A1
A
45
°
7
°~
9
°
A3
0.
25
4
A
A1
A2
e
Seating Plane
Gauge Plane
L
See Detail C
Detail C
c
a
E1
E3
A3
1
E
y
x
D
b
0.25
4x10°
4x
10
°
SEATING PLANE
A3
A
A1
Pin#1 ID
L
E E2
D
D2
b
e
z
