AL8805

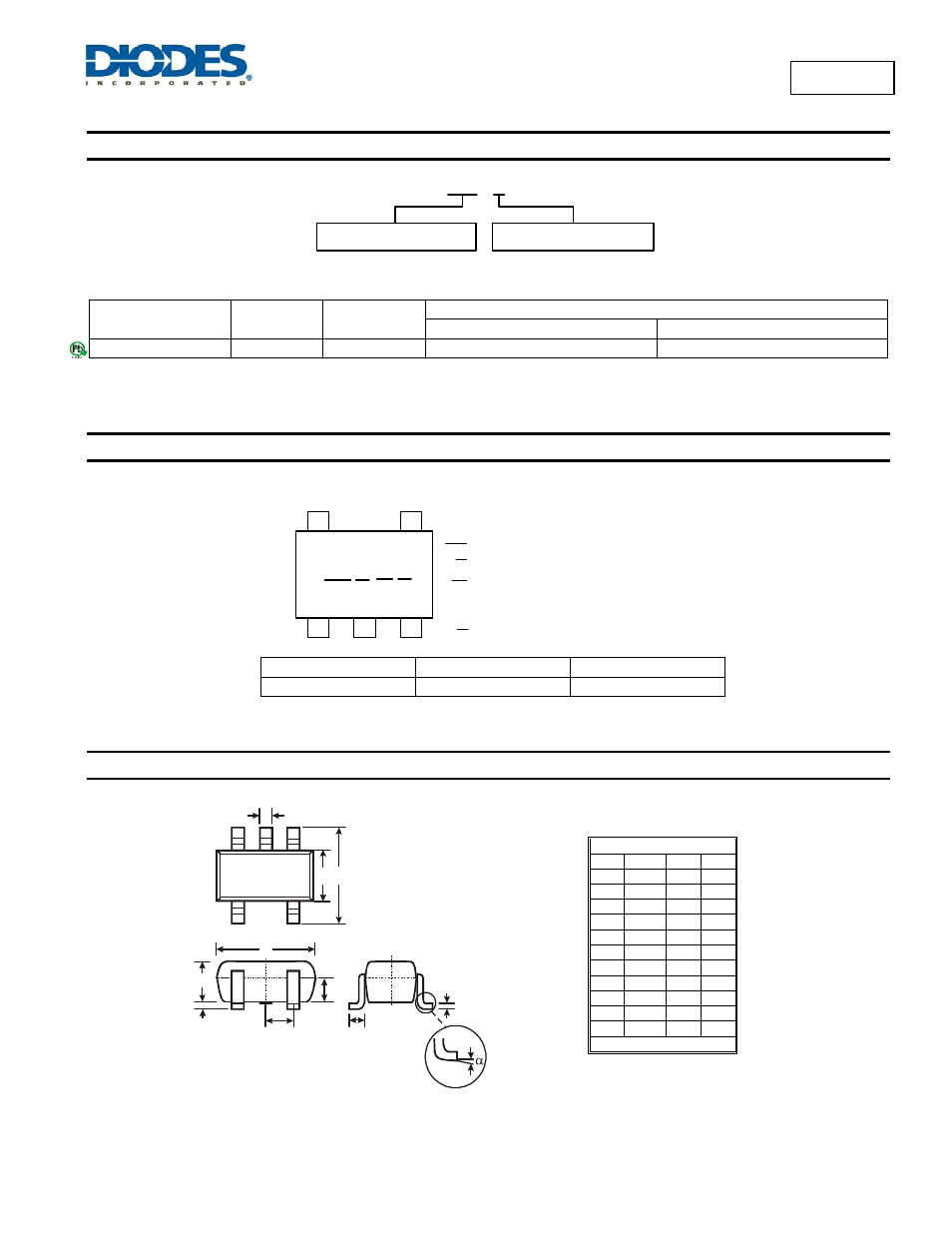

Ordering Information
AL 8805 W5 - 7
Package Packing
W5 :SOT25 7 : Tape & Reel
Device Package Code
Packaging
(Note 6)
7” Tape and Reel
Quantity Part Number Suffix
AL8805W5-7 W5 SOT25 3000/Tape & Reel -7
Note: 8. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at:
http://www.diodes.com/datasheets/ap02001.pdf .
Marking Information
1 2 3
5 7 4
XX Y W X
(Top View)
XX : Identification code
W : Week : A~Z : 1~26 week;
X : A~Z : Internal code
Y : Year 0~9
a~z : 27~52 week; z represents
52 and 53 week
Part Number Package Identification Code
AL8805W5-7 SOT25 A6
Package Outline Dimensions
(All dimensions in mm.)
SOT25
Dim Min Max Typ
A 0.35 0.50 0.38
B 1.50 1.70 1.60
C 2.70 3.00 2.80
D ⎯ ⎯ 0.95
H 2.90 3.10 3.00
J 0.013 0.10 0.05
K 1.00 1.30 1.10
L 0.35 0.55 0.40
M 0.10 0.20 0.15
N 0.70 0.80 0.75
α 0° 8° ⎯
All Dimensions in mm
A
M
J
L D
B C
H
K
N
