AP1694

Document number: DS36522 Rev.

2 - 2

1 of 9

www.diodes.com

December 2013

© Diodes Incorporated

AP1694

A Product Line of

Diodes Incorporated

NEW PROD

UC

T

OFFLINE, HIGH PF, HIGH EFFICIENCY DIMMABLE LED DRIVER CONTROLLER

Description

The AP1694 is a high performance AC/DC power factor corrector for
mains dimmable LED driver applications. The device uses Pulse
Frequency Modulation (PFM) technology to regulate output current
while achieving high power factor and low THD. It operates as a BCM
(Boundary Conduction Mode) controller which is good for EMI.

The AP1694 provides accurate constant current (CC) regulation while
removing the opto-coupler and secondary control circuitry. It also
eliminates the need of loop compensation circuitry while maintaining
stability. It can meet the requirement of IEC6100-3-2 harmonic
standard.

The AP1694 features low start-up current, low operation current. It
adopts dynamic base driver control technology and valley on
switching mode to achieve high efficiency. It also has rich protection
features including over voltage, short circuit, over temperature
protection.

The AP1694 provides the dimmable LED driver with a wide dimmer
compatibility including leading edge and trailing edge dimmer. The
AP1694 can achieve deep dimming down to 1%, while the dimming
curve is compliant with the standard of NEMA SSL6.

The AP1694 is available in SO-8 package.

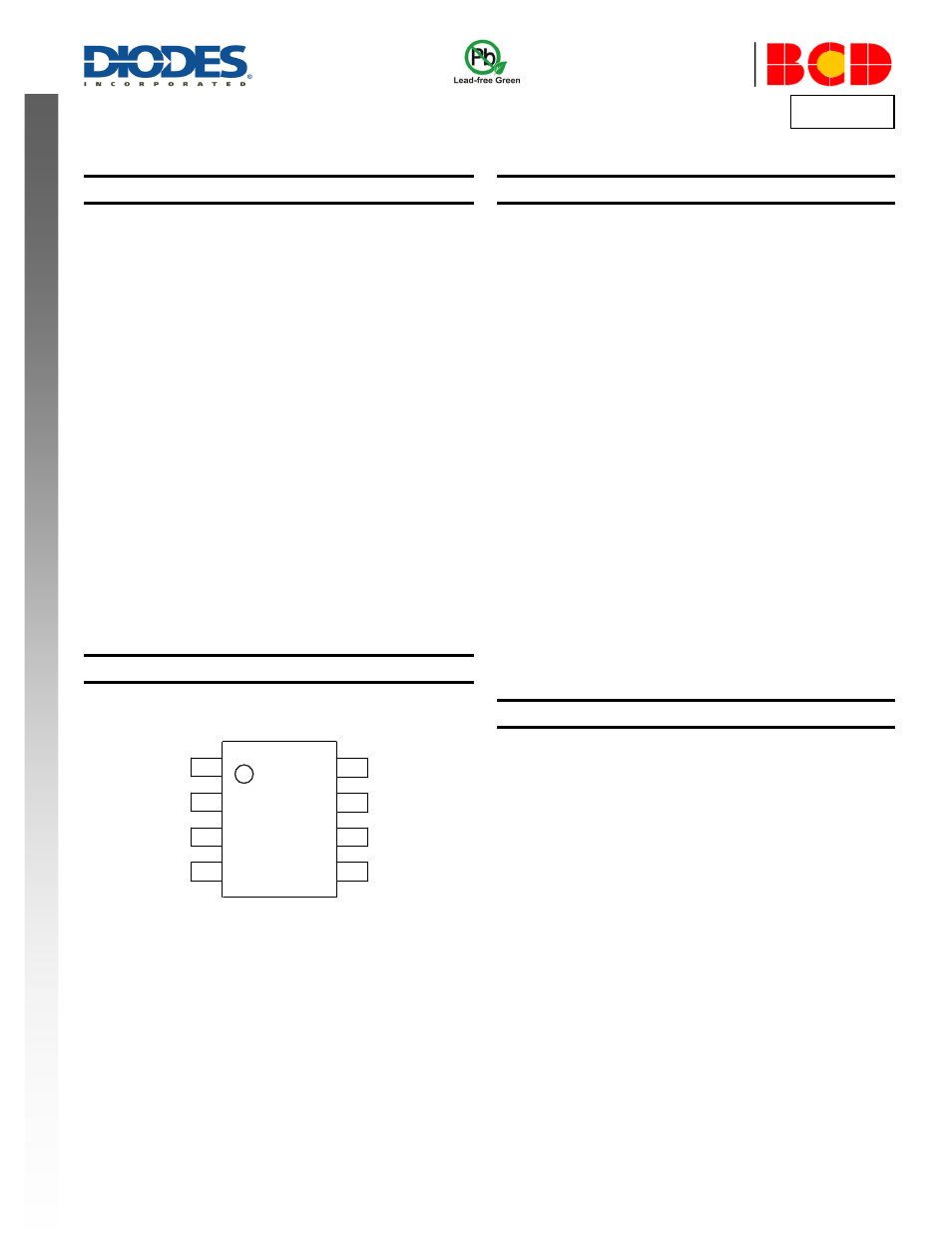

Pin Assignments

(Top View)












(SO-8/ M Package)

Features

Primary Side Control for Output Current Regulation without Opto-
coupler

Boundary Conduction Mode (BCM) Operation to Achieve High-
efficiency

High PF and Low THD

High Efficiency without Dimmer

Wide Range of Dimmer Compatibility

Dimming Curve Compliant with NEMA SSL6

Low Start-up Current

Tight LED Current

Tight LED Open Voltage

BJT Transistor Driver

Dynamic Base Driver Control

Valley-mode Switching to Minimize the Transition Loss

• Easy

EMI

• Internal

Protections:

ƒ

Under Voltage Lock Out (UVLO)

ƒ

Leading-edge Blanking (LEB)

ƒ

Output Short Protection

ƒ

Output

Open

Protection

ƒ

Over Temperature Protection

Flexible for Design with Small Form Factor and Very Low BOM
Cost

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Applications

Mains Dimmable LED Lighting








Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

1

2

3

4

8

7

6

5

NC

RI

SGND

CS

FB

GND

OUT

VCC
